INSTALLATION INSTRUCTIONS
WATER TEST
- Turn on the cold water supply.
- Use the handle from the faucet set to turn the valve on and off.
- Check for leaks. If water leaks from any of the connections merely tighten the
connections until the leak stops.
- Repeat the same procedure for the hot water supply.
SANTEC RECOMMENDS:
- The use of teflon tape or equivalent on all threaded joints.
- The installation of hard plumbing, not flex connections for all connections.
- An access panel provided for all roman tub installations.

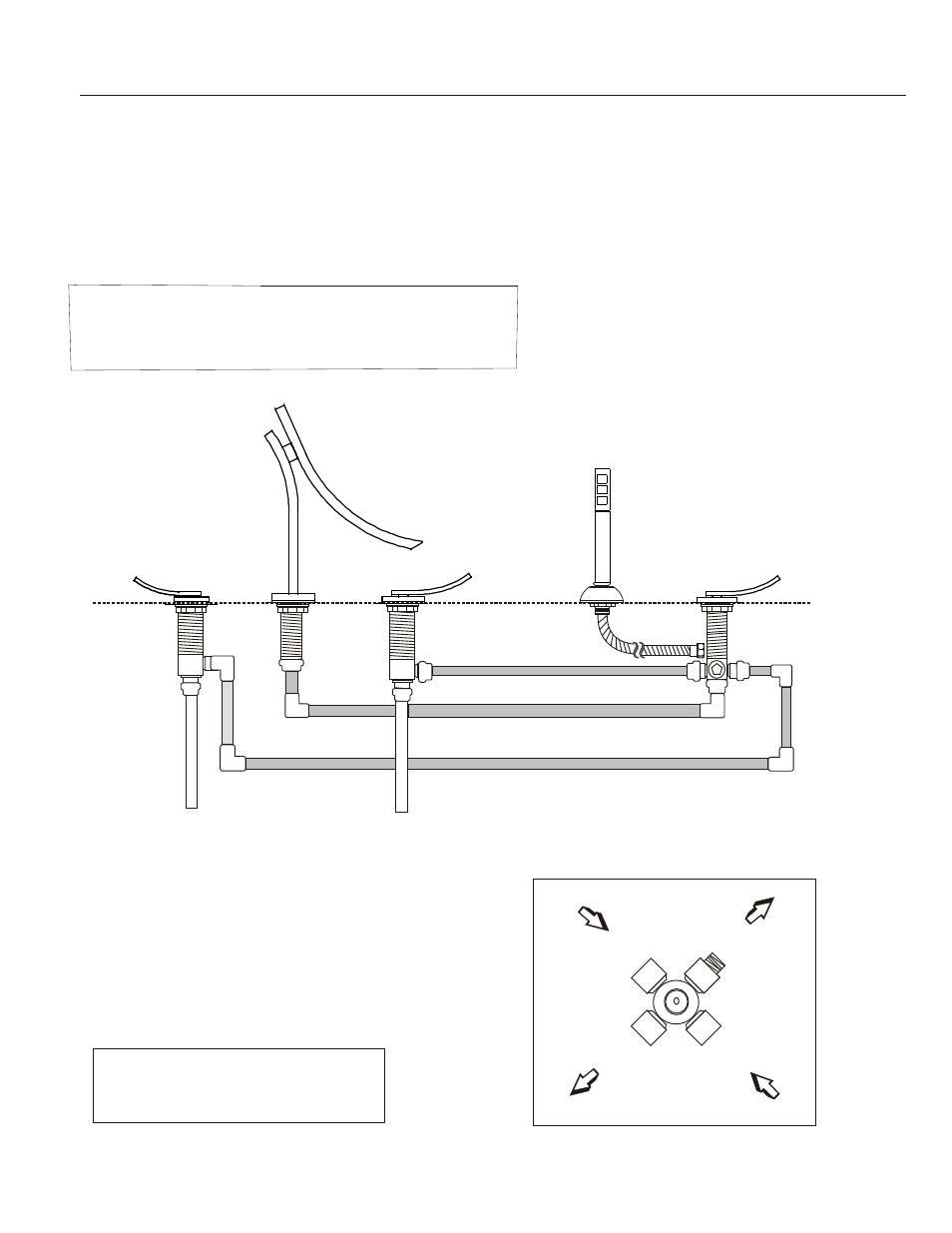

ROMAN TUB WITH HAND HELD
COLLECTION
HOT WATER
SUPPLY
COLD WATER
SUPPLY
From Diverter
to Hand shower
4-Port
Diverter
Ha
nd Sho
we
r
Tu
b Sp
ou
t
Ho
t
Va
lve
C o
ld
Va
lve
FROM HOT VALVE TO DIVERTER
FROM DIVERTER TO SPOUT
FROM COLD VAL VE TO DIVERTER
Cold Valve Hot Valve
IN
OU
T IN
OU
T
