PAGE 02

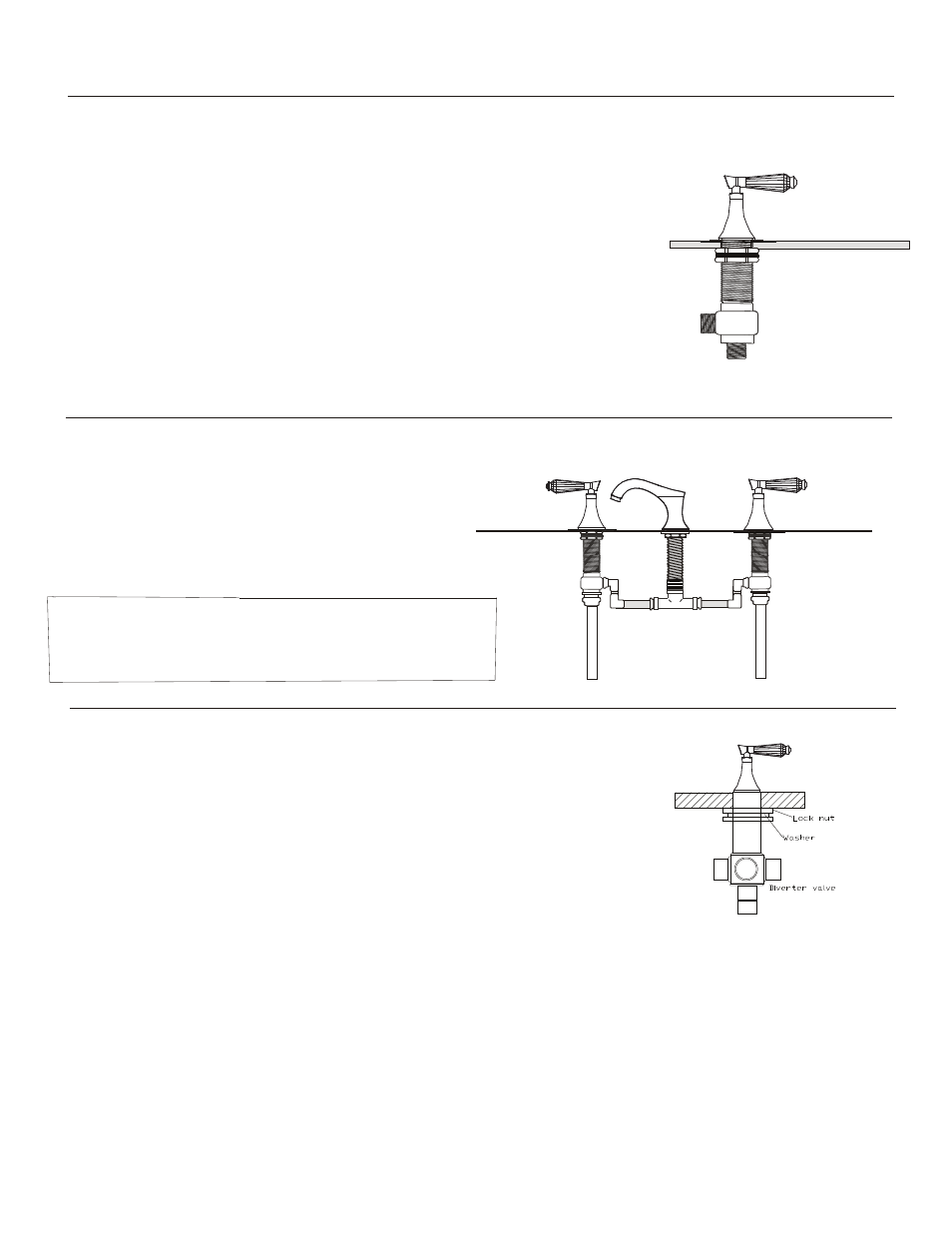

INSTALLATION INSTRUCTIONS
HANDLE INSTALLATION
- Unscrew pre-assembled handle trim from valve body. Hot valve assembly “Red” to be
mounted on left. Cold valve assembly “Blue” to be mounted on right. Apply a ring of silicon e
caulking around the handle hole on deck top.
DO NOT USE PLUMBERS’ PUTTY, WHICH CAN DAMAGE FINISH.
Slip valve body up from below tub deck. Reattach pre-assembled handle trim to valve body.
Align handless with respect to the spout and tighten valve body locknut until secure.
PLUMBING
Install plumbing “not provided” to make connections between hot valve, cold valve and spout tee
connector.
WATER TEST
- Turn on the cold water supply.
- Use the handle from the faucet set to turn the valve on and off.
- Check for leaks. If water leaks from any of the connections merely tighten the
connections until the leak stops.
- Repeat the same procedure for the hot water supply.
SANTEC RECOMMENDS:
- The use of teflon tape or equivalent on all threaded joints.
- The installation of hard plumbing, not flex connections for all connections.
- An access panel provided for all roman tub installations.
HOT WATER
SUPPLY
C OLD WATER
SUPPLY
C old Va lve
Hot Va lve
DIVERTER INSTALLATION
1
- Unscrew the pre-assembled diverter handle trim from the diverter .
- Slip the diverter valve body up from the bottom of the tub through the appropriate hole. From tub
top, screw the handle trim with the flange washer back onto the diverter. The
washer must be gently pressed against the surface. Make sure that the handle turns
freely in both directions.
- Align the handle lever and tighten the lock nut firmly.
** The spout, handle valve bodies and diverter can be connected with flex hoses (not provide by Santec) or copper pipe soldering.
Please note that when soldering connections, do not use excessive heat. Excessive heat can damage the joints increasing
probability of leakage.
