Pop-Up Drain

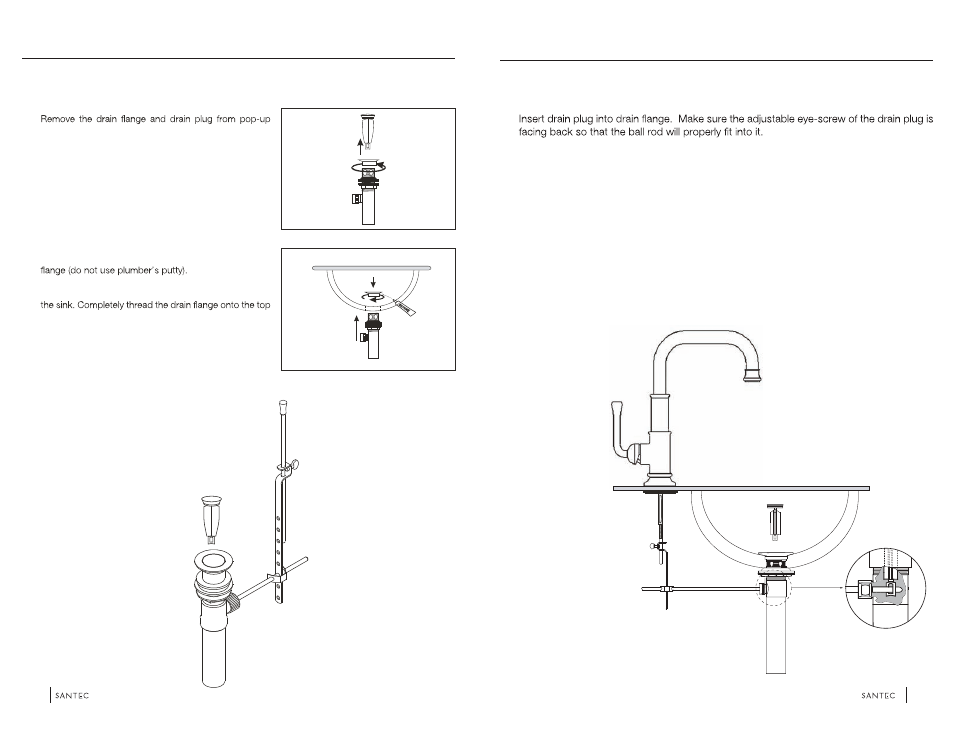

Pop-Up Drain Installation
assembly.
Do not remove the gasket, washer and lock nut.
Pop-Up Drain
Pop-Up Drain Installation
Insert ball rod washer into drain body followed by the ball rod, 2nd washer and ball rod nut.
Tighten the ball rod nut so that the ball rod moves freely.
Slip the faucet’s lift rod through the holes at the top of the lift rod strap and hand tighten
the thumb screw. Push the ball rod down so the drain plug is in the up position.
Slip one leg of the ball rod clip onto the ball rod and slide the lift rod strap onto the ball rod
using the nearest hole. Then slide the second leg of the clip onto the rod.
Test pop-up for smooth operation and adjust the strap if necessary.
C A
B Apply a ring of silicone caulking underneath the drain
Insert the threaded end of the assembly up from under
of the drain tube.
Tighten the locknut from under the sink.
Drain Plug
Drain Flange
Lift Rod Strap
Ball Rod
Drain Tube
Ball Rod Nut
Ball Rod Clip
Thumb Screw
Lock Nut
Washer
Gasket
Side hole
Lift Rod & Knob
