SPOUT ASSEMBLY IS READY FOR SIMPLE DROP-IN INSTALLATION.

DO NOT DISASSEMBLE.

Spout

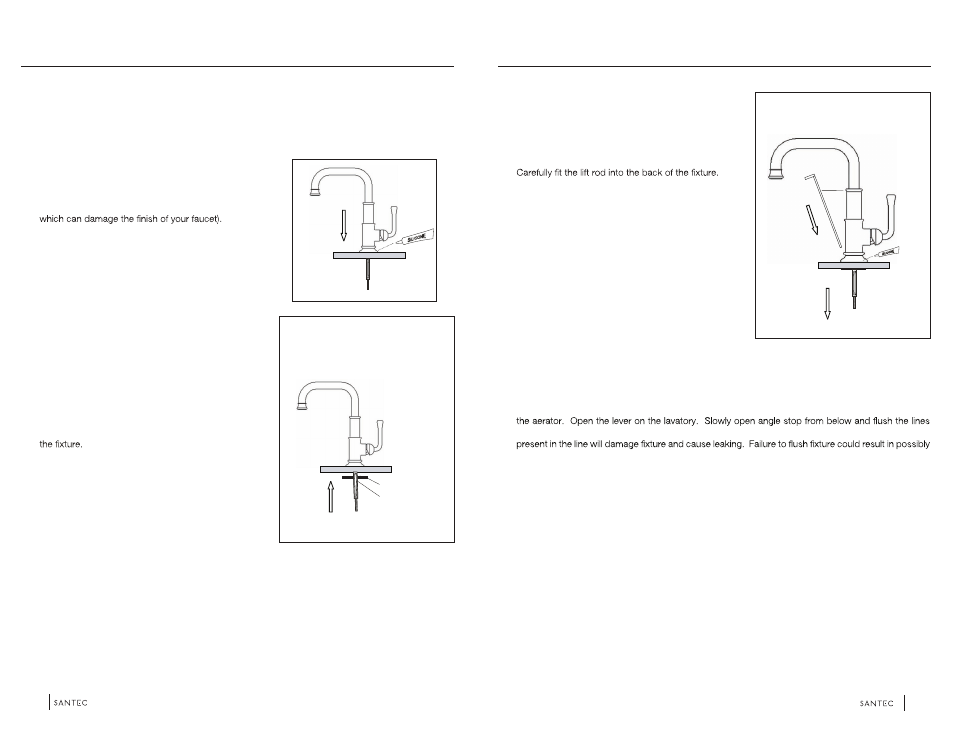

Spout Installation

Remove the washer and lock nut from the valve body.

Apply a ring of silicone caulking around the spout hole

on the sink or counter top (do not use plumber’s putty

Insert lavatory assembly through the spout hole. Make

sure to center the lavatory over hole.

Re-install the washer and lock nut from below.

Hand tighten lock nut from below while properly aligning

Secure from below with an adjustable wrench and

connect the inlet hoses to the supply lines. Make sure

that the hot inlet hose connects to the hot supply line,

and the cold inlet hose connects to the cold supply line.

IMPORTANT:

After all the connections have been made from inlet supplies to angle stop, remove

for approximately 45 seconds to clean any debris. Turn off the water and reinsert aerator. Debris

voiding warranty.

Spout

Washer

Lock nut

Lift rod
