INSTALLATION INSTRUCTIONS

H

ANDLE

T

RIM

I

NSTALLATION

HANDLE TRIMS ARE READY FOR DROP IN INSTALLATION. DO NOT DISASSEMBLE.

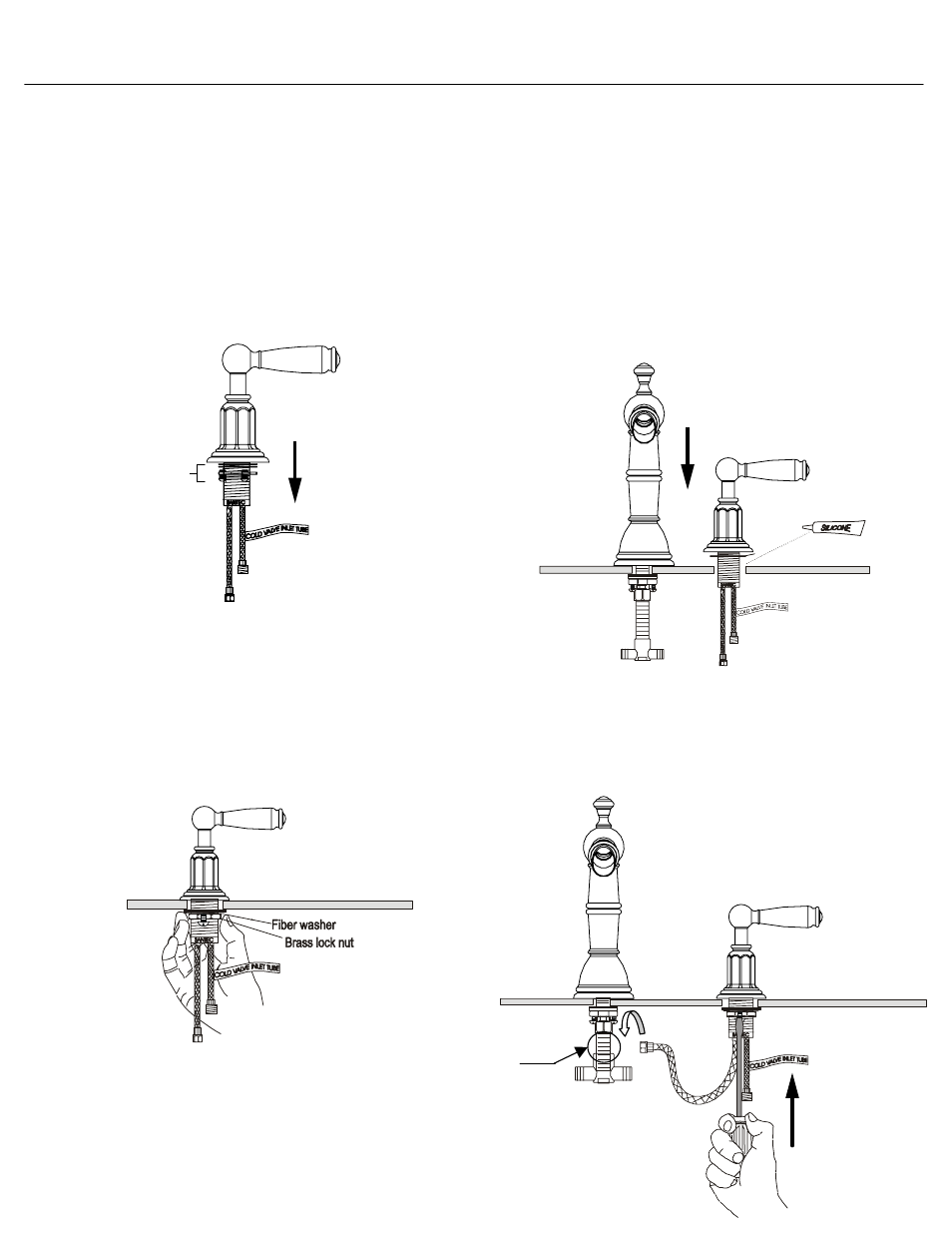

Step 1

Remove the valve body mounting hardware from

the valve body.

Hot valve assembly “Red” to be mounted on left.

Cold valve assembly “Blue” to be mounted on right.

Step 3

Align handle with respect to the spout and tighten

valve body locknut until secure.

Step 2

Apply a ring of silicone caulking around the handle

hole on the sink countertop.

DO NOT USE PLUMBERS’ PUTTY WHICH CAN

DAMAGE FINISH.

Slip valve through appropriate hole in sink or

countertop.

Step 4

Snug bottom locknut security screw.

STOP! FLUSH THE LINE!*

Aim outlet hoses towards tee connector and attach

securely to avoid leakage.

mounting

hardware

rubber washer

COLLECTION

WIDESPREADS

*

F

LUSH

T

HE

L

INE

After all connections have been made from inlet supplies to

angle stop, open both hot and cold valves.

Slowly open angle stop from below and flush the lines for

approximately 45 seconds to clean any debris.

Turn off the water

Flow

Restrictor
