INSTALLATION INSTRUCTIONS

S

POUT

I

NSTALLATION

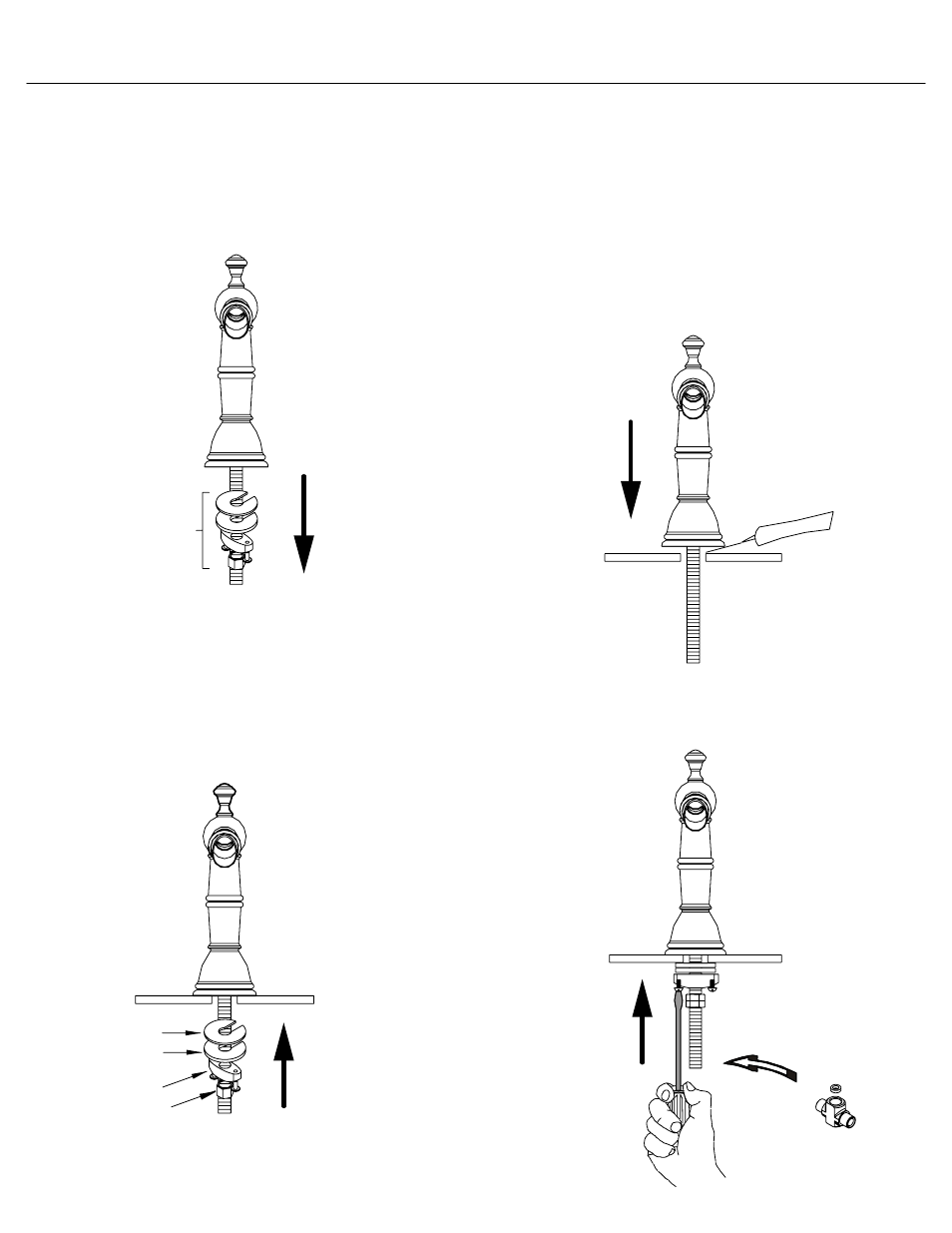

Step 1.

Remove the mounting hardware from the spout.

Step 3.

From below, slip notched washer and gasket over

spout shank. Align notched washer and gasket to

allow pop-up rod to pass through.

Attach wing nut and brass lock nut.

Step 2.

Apply a ring of silicone caulking around hole

designated for spout.

DO NOT USE PLUMBERS’ PUTTY WHICH CAN

DAMAGE FINISH.

Insert spout through center hole sink or countertop.

Step 4.

Secure spout by tightening the two screws on wing

nut.

Thread tee connector and washer to spout shank

and tighten to seal.

wing nut

brass lock nut

washer

gasket

COLLECTION

WIDESPREADS

mounting

hardware
