INSTALLATION INSTRUCTIONS
After all the connection has been made, remove the aerator housing,
basket and washer.
Turn on the water on and flush the line for 45 seconds to flush out any
possible debris in the line.
Turn off the water and reinsert the washer, basket and Housing.
Turn on the water and check for leakages at all joints. If no leakage, close
the wall.
F -
wood stud
dry wall
½” NPT
connection
supply line
clamp
PAGE 03
5.50”
14.00”

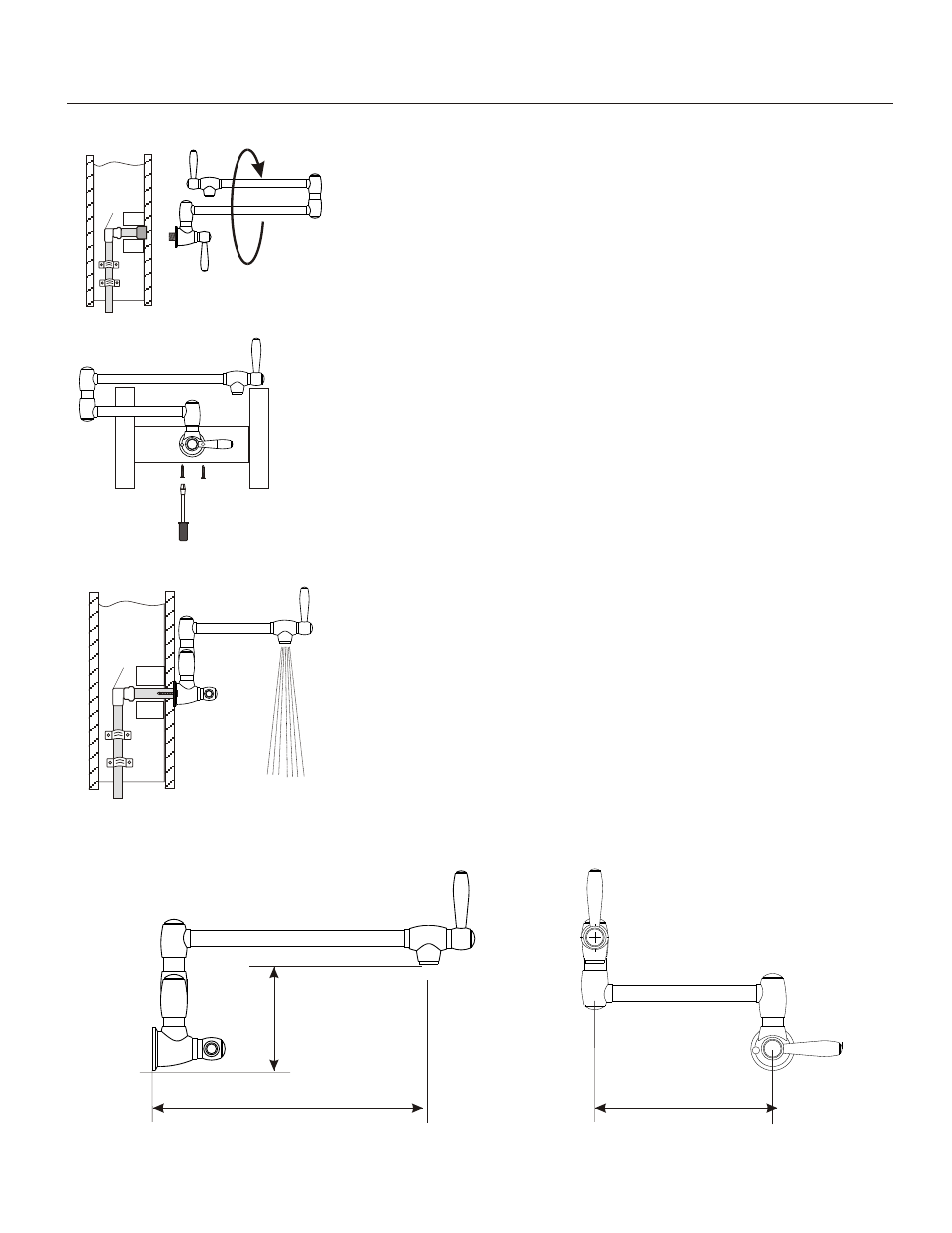

DIMENSIONS
SIDE VIEW FRONT VIEW
9.00”
FRONTAL VIEW
Secure the Pot Filler’s flange using the 2 screws provided.
E -
wood stud
dry wall
½” NPT
connection
supply line
clamp
Extend the pot filler horizontally.
Screw the Pot Filler Base onto the supply line’s outlet by turning it clock-
wise. Tighten firmly to avoid leakage.
Align the Pot Filler. Make sure it is horizontally and vertically leveled.
D -
5275DL _ _
