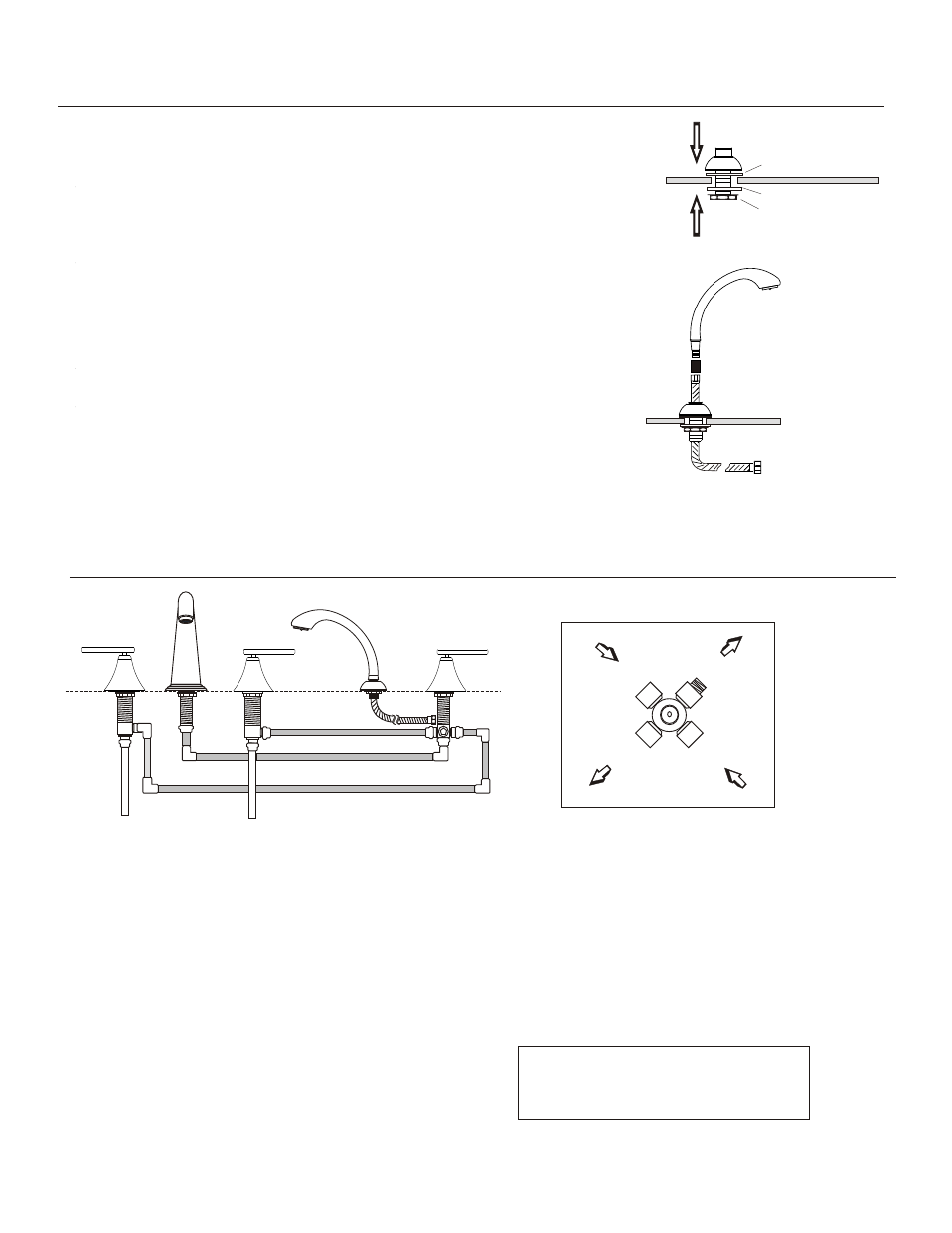

INSTALLATION INSTRUCTIONS
Metal washer
Brass lock nut
Plastic washer
DIVERTER & HANDSHOWER (IF APPLICABLE)
-Diverter valve is same as handle installation (See above).
HAND SHOWER INSTALLATION
-Slip guide tube, flange and washer through deck top.
-Reattach mounting hardware to guide tube and tighten until secure.
-Connect ½” side of deck hose to ½” outlet of diverter valve and slide 3/8” end
of hose up through deck bracket and attach hand shower.
FLUSH THE LINES
-Open both the hot and cold valves.
-Slowly open water supplies to home and flush the lines for approximately
45 seconds to clear any debris.
CHECK INSTALLATION FOR LEAKAGES PRIOR TO CLOSING ANY WALL OR DECK.
HOT WATER
SUPPLY COLD WATER
SUPPLY
From Diverter
to Hand shower
4-Port
Diverter
FROM HOT VALVE TO DIVERTER
FROM DIVERTER TO SPOUT
FROM COLD VALVE TO DIVERTER
Cold Valve Hot Valve
Ha
nd Sh
ow
er
Tu
b Sp
ou
t
Ho
t
Va
lve
C
ol
d
Va
lve
IN
O
UT IN
O
UT
