Santec 3650EN User Manual
Keep this instruction booklet for future reference, Page 01
KEEP THIS INSTRUCTION BOOKLET FOR FUTURE REFERENCE
PAGE 01

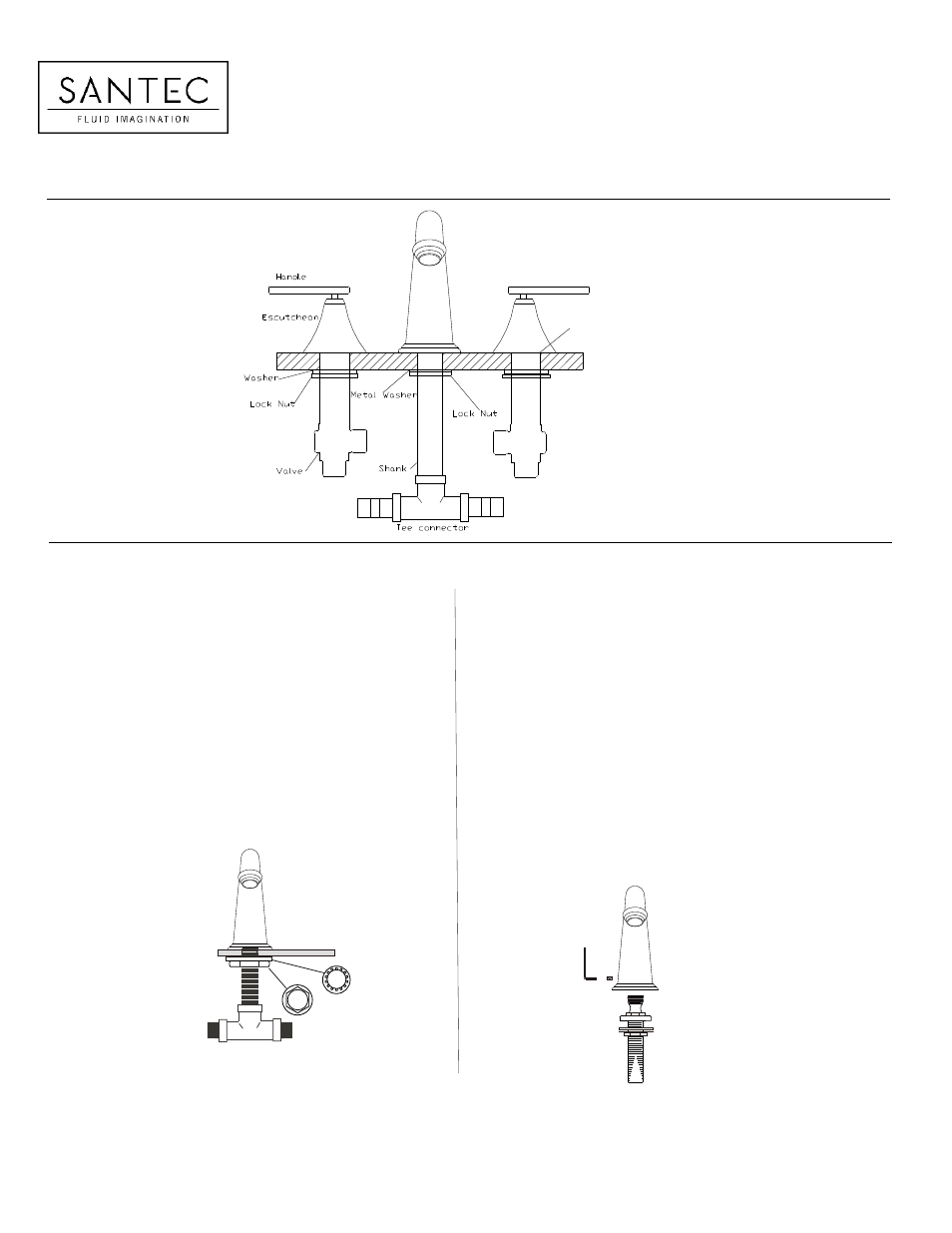

ROMAN TUBS W & W.O. HANDSHOWER
INSTALLATION INSTRUCTIONS FOR DROP IN VALVES
MINIMUM HOLE SIZE FOR THE SPOUT AND
HANDLE TRIM IS 1
¼
” AND MAXIMUM OF 1
½
”
*** NOTE: SHUT OFF WATER SUPPLY BEFORE BEGINNING INSTALLATION***
PLEASE READ THE INSTRUCTIONS COMPLETELY
BEFORE BEGINNING THE INSTALLATION.
BAROQUE & ENZO APPLICATION
EDO APPLICATION
¾” N.P.T. SPOUT SHANK
QUICK CONNECT SHANK
-Remove tee connector and spout mounting
-Remove tee connector and spout
hardware from spout nipple.
mounting hardware from quick
-Apply a ring of silicone caulking around
connect shank being sure to leave
hole designated for spout.
on brass plate.
DO NOT USE PLUMBERS’ PUTTY, WHICH
-Apply a ring of silicone caulking
CAN DAMAGE FINISH.
around hole designated for spout.
-Slip spout and spout base through top of
DO NOT USE PLUMBERS’ PU TTY,
deck.
WHICH CAN DAMAGE FINISH.
-Reattach spout mounting hardware and
-Slip quick connect s hank through
secure spout.
deck top.
-Thread tee connector onto spout shank.
-Reattach spout mounting hardware
until secure.
-Place spout onto quick connect
shank and set in place with allen key
and set screw provided.
Large Allen Key
