Santec 3620EN User Manual
Inspected by, Spout installation, Keep this instruction booklet for future reference
KEEP THIS INSTRUCTION BOOKLET FOR FUTURE REFERENCE
WIDESPREADS
INSPECTED BY
*** NOTE: SHUT OFF WATER SUPPLY BEFORE BEGINNING INSTALLATION***
PAGE 01
COLLECTION
PLEASE READ THE INSTRUCTIONS COMPLETELY
BEFORE BEGINNING THE INSTALLATION.
MINIMUM HOLE SIZE FOR THE SPOUT AND
HANDLE TRIM IS 1
¼
” AND MAXIMUM OF 1
½
”
Brass lock nut
Tee connector & washer

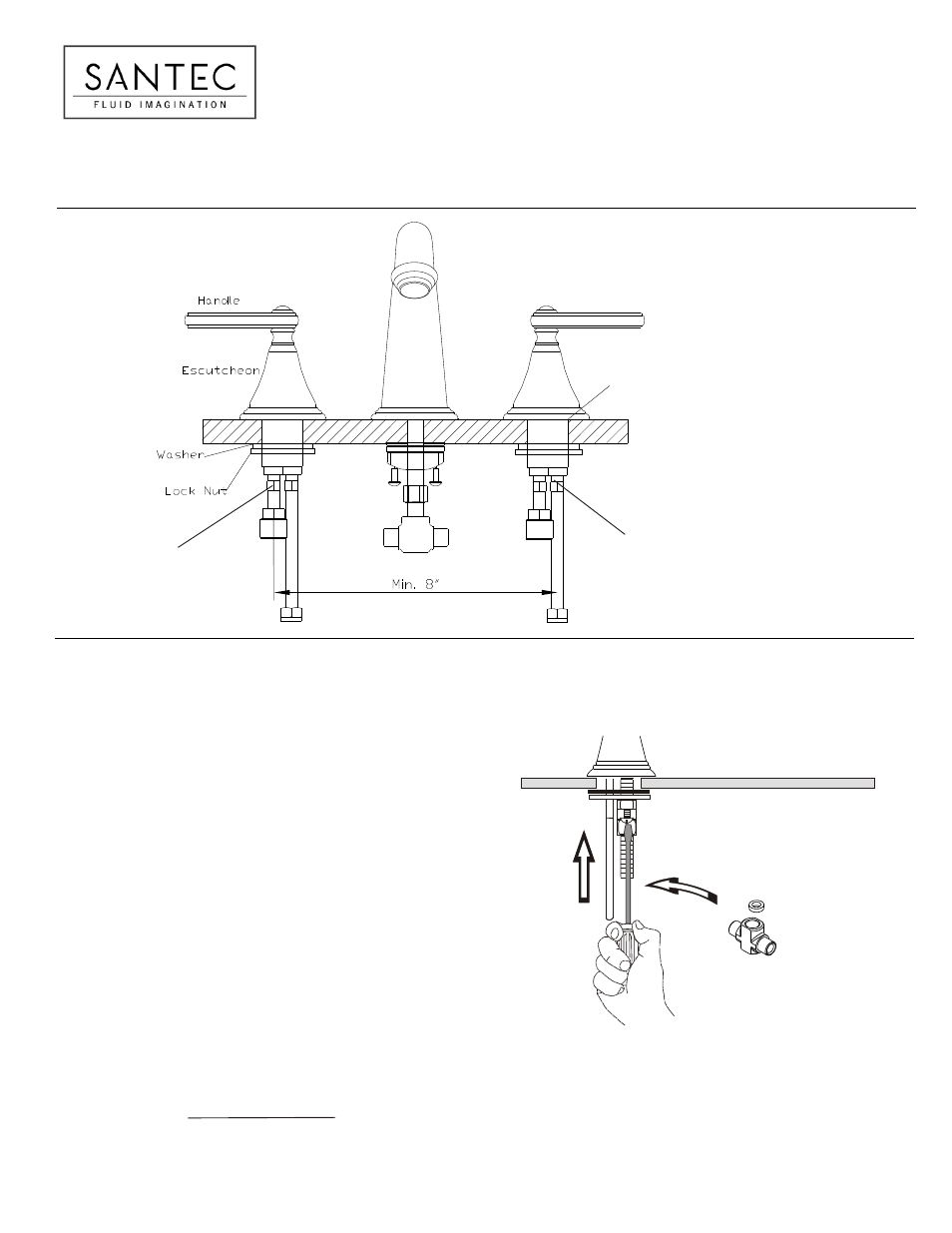

SPOUT INSTALLATION
A-
Remove tee connector and mounting hardware from the spout.
Apply a ring of silicone caulking around hole designated for spout.
DO NOT USE PLUMBERS' PUTTY WHICH CAN DAMAGE FINISH.
Insert spout through center hole of sink or countertop.
-From below slip notched washer and gasket over spout shank. Align
notched washer and gasket to allow pop-up rod to pas through.
Attach wing nut and brass lock nut.
Secure spout by tightening the two screws on wing nut.
Thread tee connector and washer to pout shank and tigfhten to seal
DO NOT TIGHTEN
HOSE
DO NOT TIGHTEN
HOSE
