INSTALLATION INSTRUCTIONS

H

ANDLE

T

RIM

I

NSTALLATION

HANDLE TRIMS ARE READY FOR DROP IN INSTALLATION. DO NOT DISASSEMBLE.

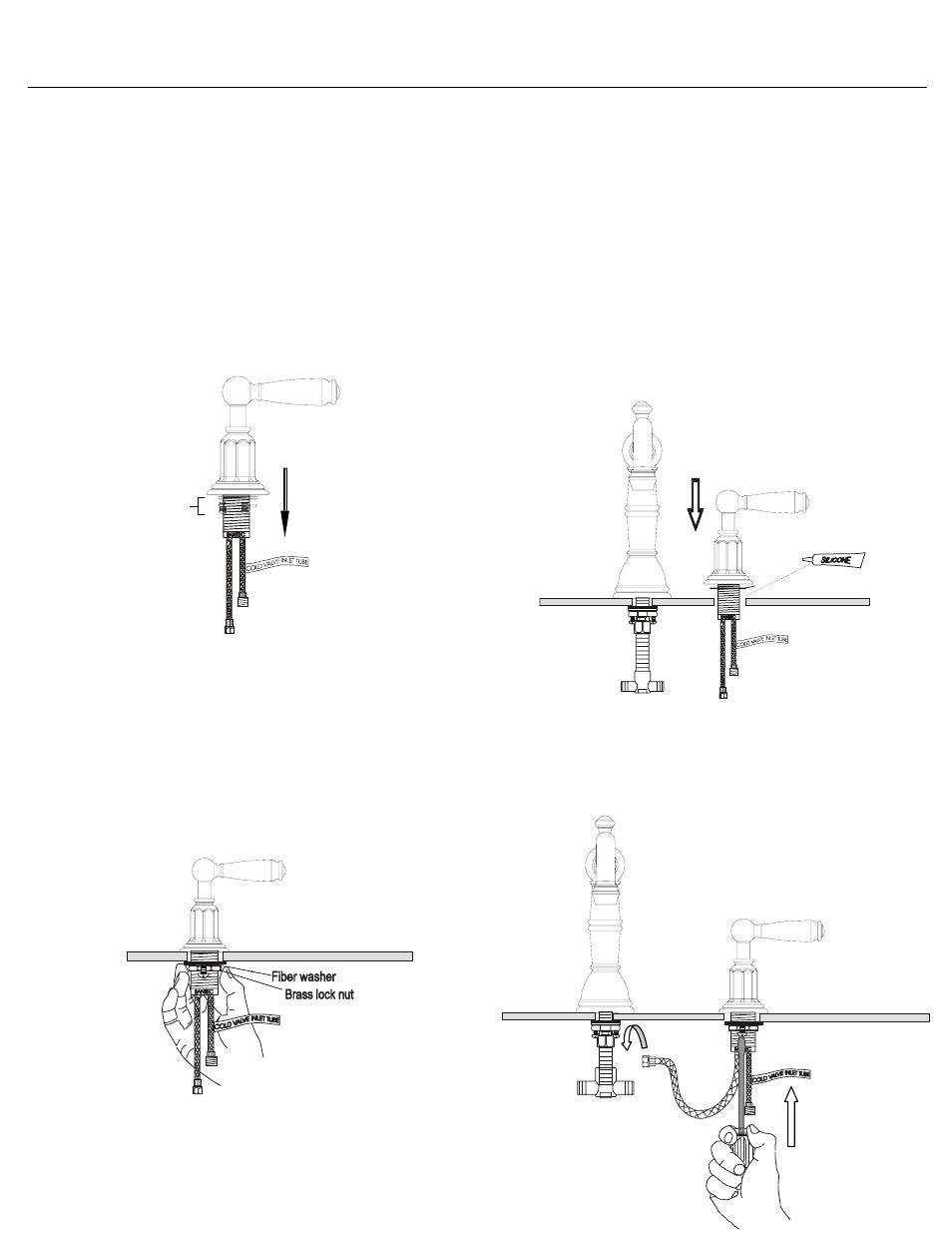

Step 1

• Remove the valve body mounting hardware from

the valve body.

• Hot valve assembly “Red” to be mounted on left.

• Cold valve assembly “Blue” to be mounted on right.




















Step 3

• Align handle with respect to the spout and tighten

valve body locknut until secure.



















Step 2

• Apply a ring of silicone caulking around the handle

hole on the sink countertop.

DO NOT USE PLUMBERS’ PUTTY WHICH CAN

DAMAGE FINISH.

• Slip valve through appropriate hole in sink or

countertop.

















Step 4

• Snug bottom locknut security screw.

• Aim outlet hoses towards tee connector and attach

securely to avoid leakage.





mounting
hardware

rubber washer
