INSTALLATION INSTRUCTIONS



S

POUT

I

NSTALLATION

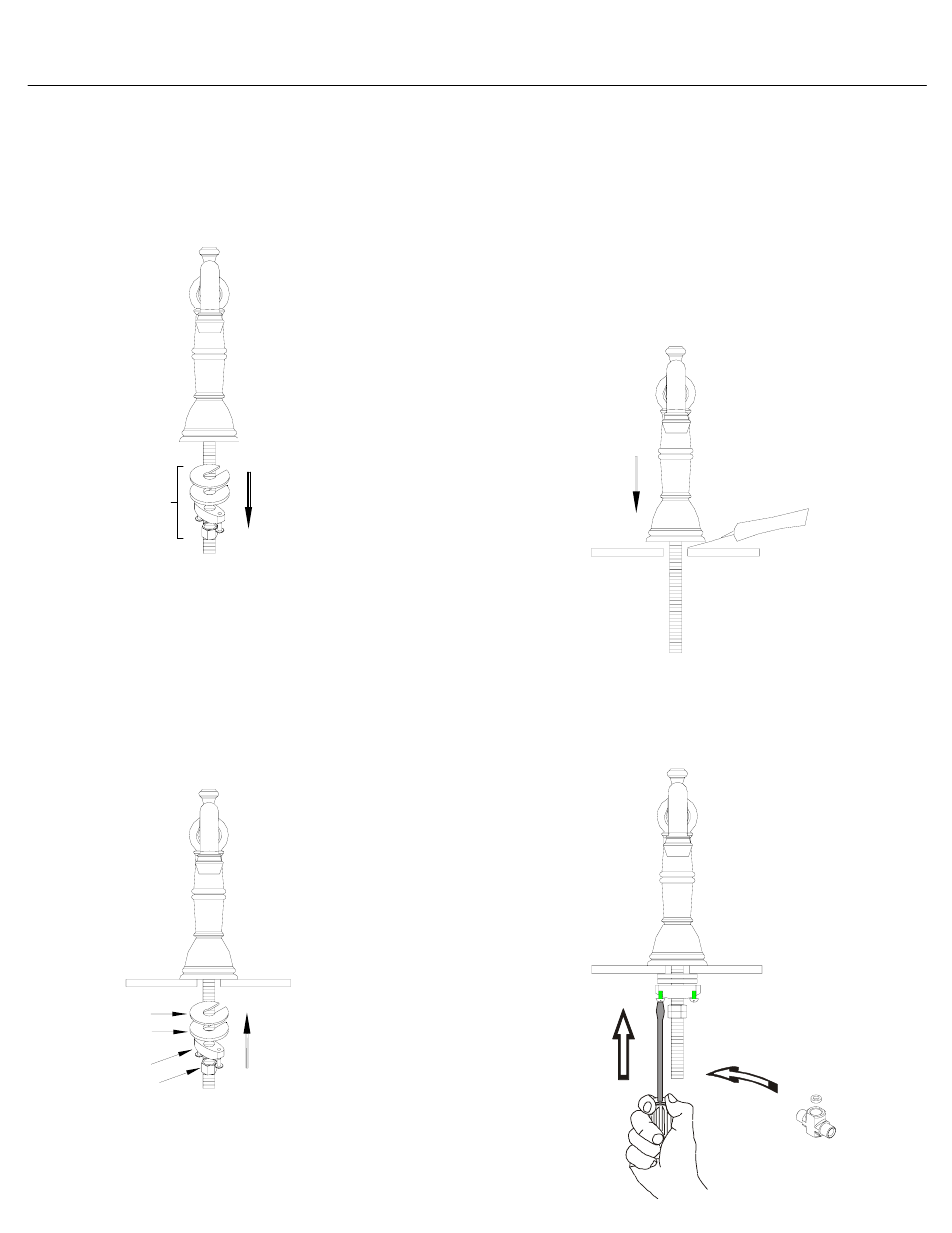

Step 1.

• Remove the mounting hardware from the spout.






















Step 3.

• From below, slip notched washer and gasket over

spout shank. Align notched washer and gasket to
allow pop-up rod to pass through.

• Attach wing nut and brass lock nut.





Step 2.

• Apply a ring of silicone caulking around hole

designated for spout.

DO NOT USE PLUMBERS’ PUTTY WHICH CAN

DAMAGE FINISH.


• Insert spout through center hole sink or countertop.
















Step 4.

• Secure spout by tightening the two screws on wing

nut.

• Thread tee connector and washer to spout shank

and tighten to seal.




Tee connector & washer

mounting
hardware

SILIC

ONE

wing nut

brass lock nut

washer

gasket
