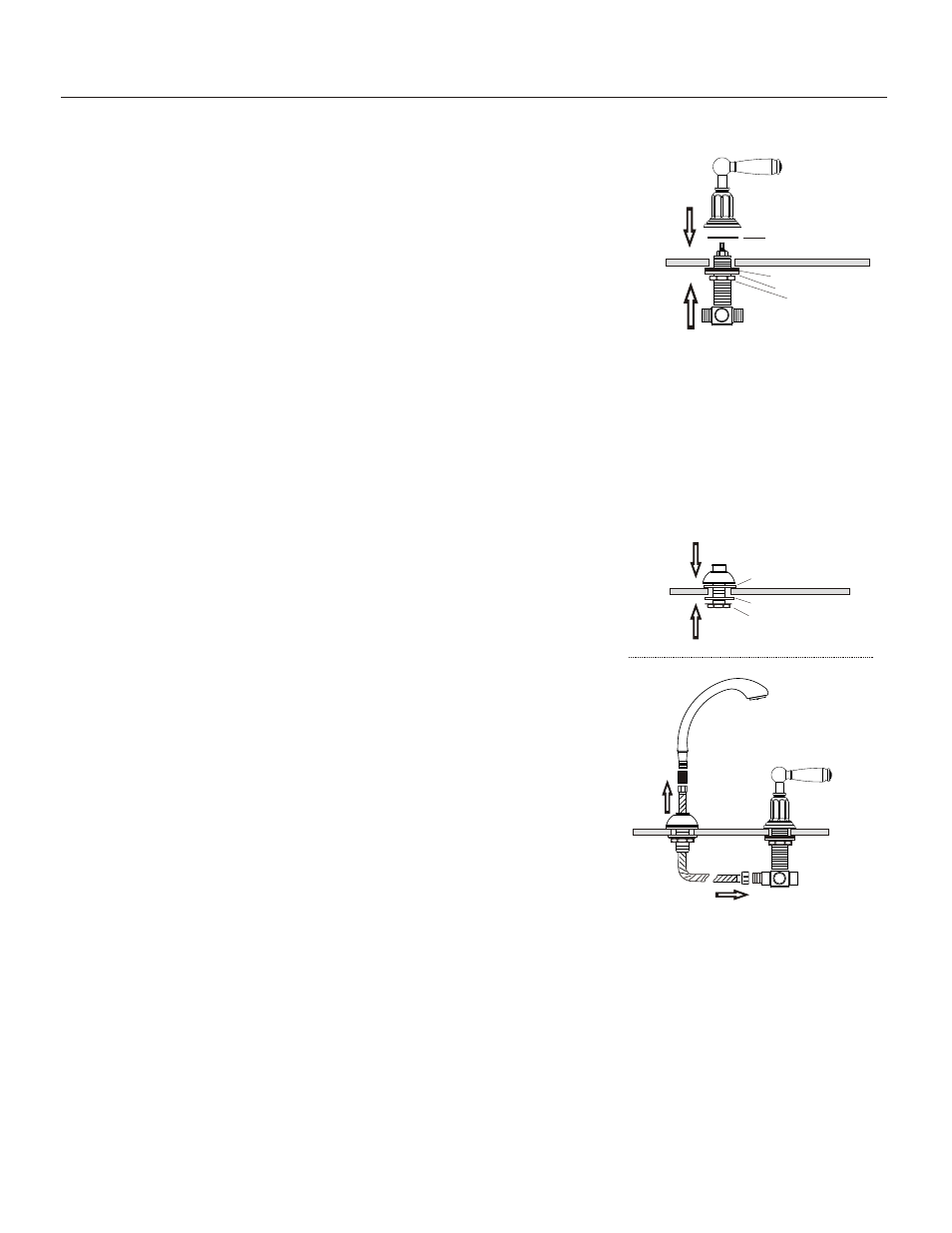

DIVERTER INSTALLATION
1
- Unscrew the pre-assembled diverter handle trim from the diverter.
- Slip the diverter valve body up from the bottom of the tub through the appropriate hole. From tub
top, screw the handle trim with the flange washer back onto the diverter. The
washer must be gently pressed against the surface. Make sure that the handle turns
freely in both directions.
- Align the handle lever and tighten the lock nut firmly.
** The spout, handle valve bodies and diverter can be connected with flex hoses (not provided by Santec) or copper pipe soldering.
Please note that when soldering connections, do not use excessive heat. Excessive heat can damage the joints increasing
probability of leakage.
HAND SHOWER INSTALLATION
1
- Slip the guide tube, flange and the washer down from the top of the tub through
the appropriate hole. Slip the mounting hardware from the bottom of the tub, first the
crimped metal washer then the brass lock nut. Tighten the lock nut firmly.
2
- Wrap Teflon seal tape around the threaded outlet end (OUT) of the diverter valve. Connect and
tighten the 1/2” female side of hose onto the outlet.
- Slip the other end of the hose (3/8”) up through the guide tube, connect and tighten the
hose to the hand shower unit.
Metal washer
Brass lock nut
Plastic washer
Diverter
PAGE 04
Rubber washer
Metal washer
Brass lock nut
Flange washer
INSTALLATION INSTRUCTIONS
ROMAN TUB WITH HAND HELD
COLLECTION
