INSTALLATION INSTRUCTIONS

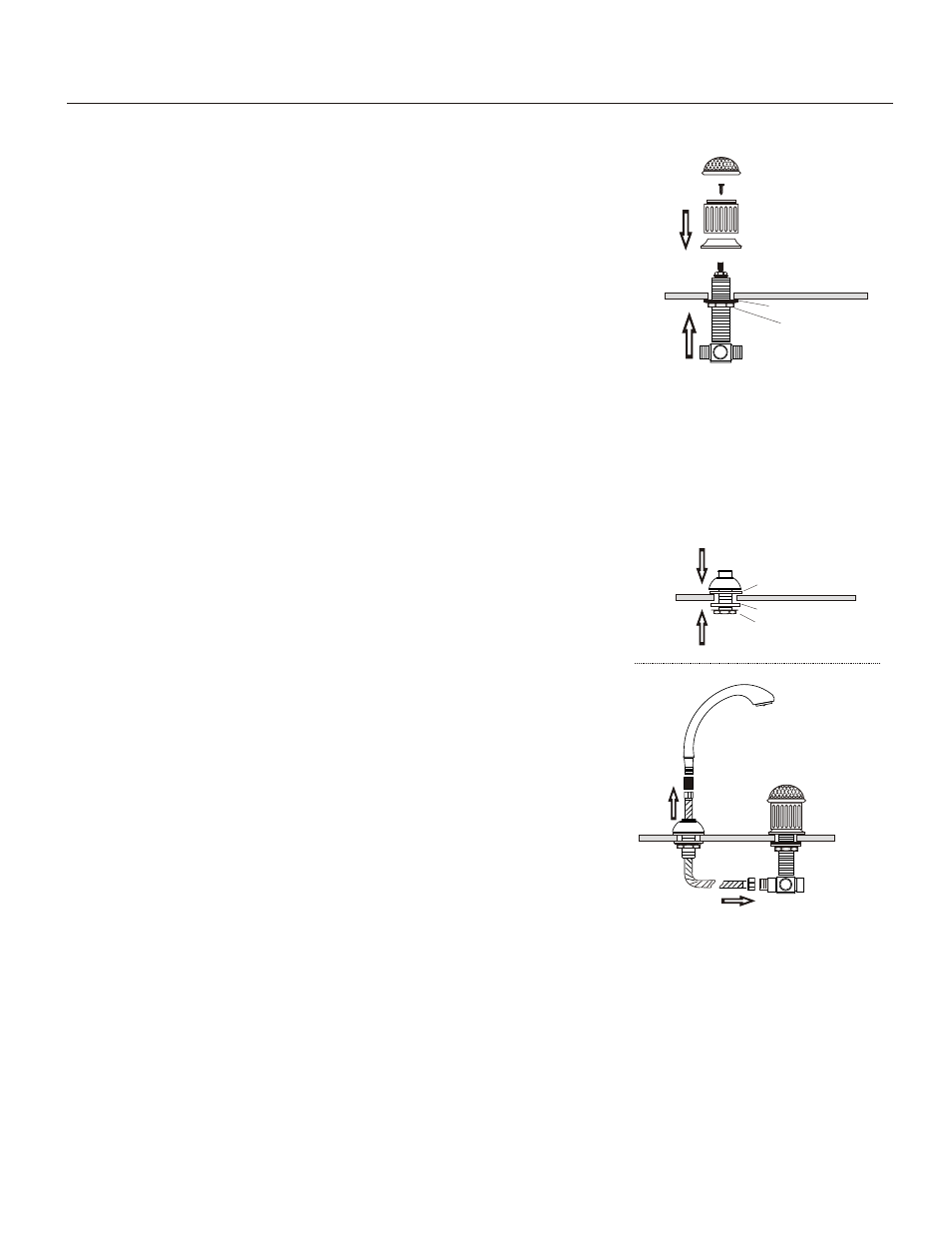

DIVERTER INSTALLATION
1
- Unscrew the pre-assembled handle trim (2) from the diverter valve.
- Slip the diverter (12) up from the bottom of the tub through the appropriate hole.
- From tub top, screw the Handle Flange back onto the valve. Do not tighten.
Insert the Handle Base of the handle trim (2) onto the valve stem and check for the handle height.
By turning the mounting lock nut, the handle base can be elevated or lowered accordingly.
After the height is set, tighten the mounting hardware (11)
Secure the Handle Base with the screw provided. Tighten firmly.
- Screw the Handle Top onto the Handle base. Tighten firmly.
Make sure that the handle turns freely in both directions.
** The spout, handle valve bodies and diverter can be connected with flex hoses (not provide by Santec) or copper pipe soldering.
Please note that when soldering connections, do not use excessive heat. Excessive heat can damage the joints increasing
probability of leakage.
HAND SHOWER INSTALLATION
1
- Slip the guide tube (15), flange (14) and the washer down from the top of the tub through
the appropriate hole. Slip the mounting hardware (13) from the bottom of the tub, first the
crimped metal washer then the brass lock nut. Tighten the lock nut firmly.
2
- Wrap Teflon seal tape around the threaded outlet end (OUT) of the diverter valve. Connect and
tighten the ½” female side of hose (17) onto the outlet.
- Slip the other end of the hose (3/8”) up through the guide tube (!5), connect and tighten the
hose to the hand shower unit (16).
WATER TEST
- Turn on the cold water supply.
- Use the handle from the faucet set to turn the valve on and off.
- Check for leaks. If water leaks from any of the connections merely tighten the connections
until the leak stops.
- Repeat the same procedure for the hot side
Metal washer
Brass lock nut
Plastic washer
Diverter
PAGE 03
1155CD _ _
Fiber washer
Brass lock nut
Handle Flange
Handle Top
Handle Base
Screw
