INSTALLATION INSTRUCTIONS
FLUSH BOTH SUPPLY LINES BEFORE INSTALLATION
AFTER FLUSHING, SHUT OFF BOTH SUPPLY LINES
MINIMUM HOLE SIZE FOR THE SPOUT AND HANDLE TRIM IS 1 1/4 ” AND MAXIMUM IS 1 1/2 ”

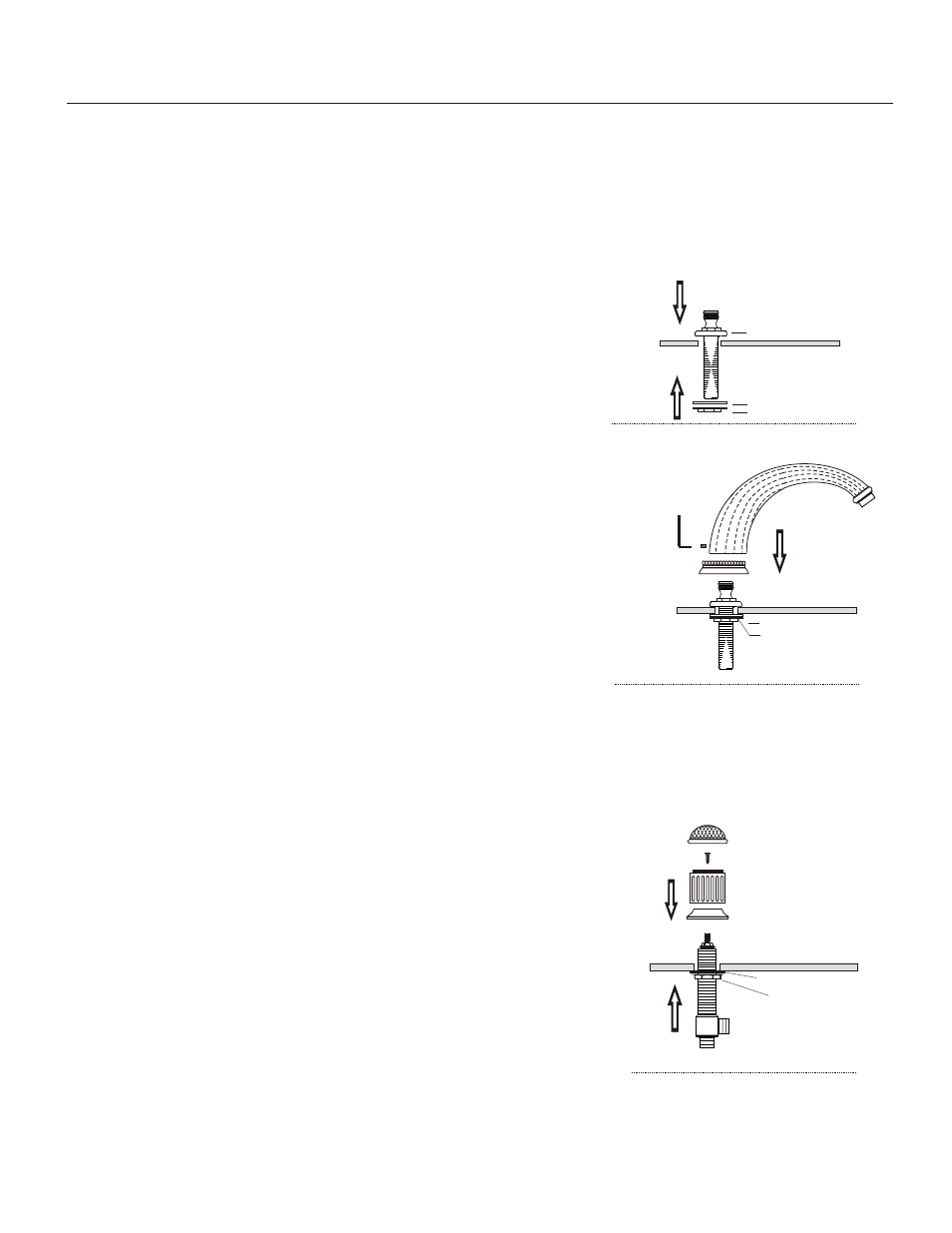

SPOUT INSTALLATION
1
- Remove the Quick Connect Spout Shank and Mounting Hardware from the box.
Remove the mounting hardware (metal washer and brass lock nut) from the Quick Connect
Shank.
- From the top of the deck, slip the quick Connect shank with the brass plate through the
assigned spout hole.
- Secure the quick connect shank by putting the washer and locknut back on the shank.
Tighten the lock nut firmly.
2.
- Remove the faucet from the box.
- From the top of the deck, slip the spout (1) with the flange(3) onto the quick connect shank
top. Align the spout and tighten the set screw with the Allen Key (21) provided.
3
- Connect the spout shank to one of the outlet port (OUT) of the diverter valve after the diverter
valve is installed. **
Note: for better installation it is advisable to place silicone caulking around all holes on the top
of the deck
If the trim is ordered separately, please keep the shank protector on the quick connect shank
at all time to avoid damages to the unit.
HANDLE INSTALLATION
1.
- Unscrew the pre-assembled handle trim (2) from the valve body.
- Slip the valve body (8) or (9) up from the bottom of the tub through the appropriate hole next
to the spout.
- From tub top, screw the Handle Flange back onto the valve. Do not tighten.
Insert the Handle Base of the handle trim (2) onto the valve stem and check for the handle height.
By turning the mounting lock nut, the handle base can be elevated or lowered accordingly.
After the height is set, tighten the mounting hardware (5)
Secure the Handle Base with the screw provided. Tighten firmly.
- Screw the Handle Top onto the Handle base. Tighten firmly.
Make sure that the handle turns freely in both directions.
2
- Position the valve body side outlet towards the diverter valve (12) for easier pipe connection.
- Connect the water supply lines to the bottom inlets of the valve bodies. **
- Connect the valve body side outlet to the inlet (IN) of the diverter valve (12) after the diverter
is installed. **
PAGE 02
Metal washer
Brass lock nut
Metal washer
Brass lock nut
1155CD _ _
Brass plate
Large Allen Key
Fiber washer
Brass lock nut
Handle Flange
Handle Top
Handle Base
Screw
