3.4.2 STX 165R
The STX 165R remote transponder can be either hard mounted using the mounting fl anges or mount-
ed in the optional mounting tray.
3.4.2.1 Mounting Tray
When using the mounting tray, it needs to be secured with two number 8 pan head mounting screws.
Ensure that the top of the screw head is below the mounting tray surface. The STX 165R can be
installed in either direction in the mounting tray. Ensure that the STX 165R is securely fastened to
the tray using the thumb nut.

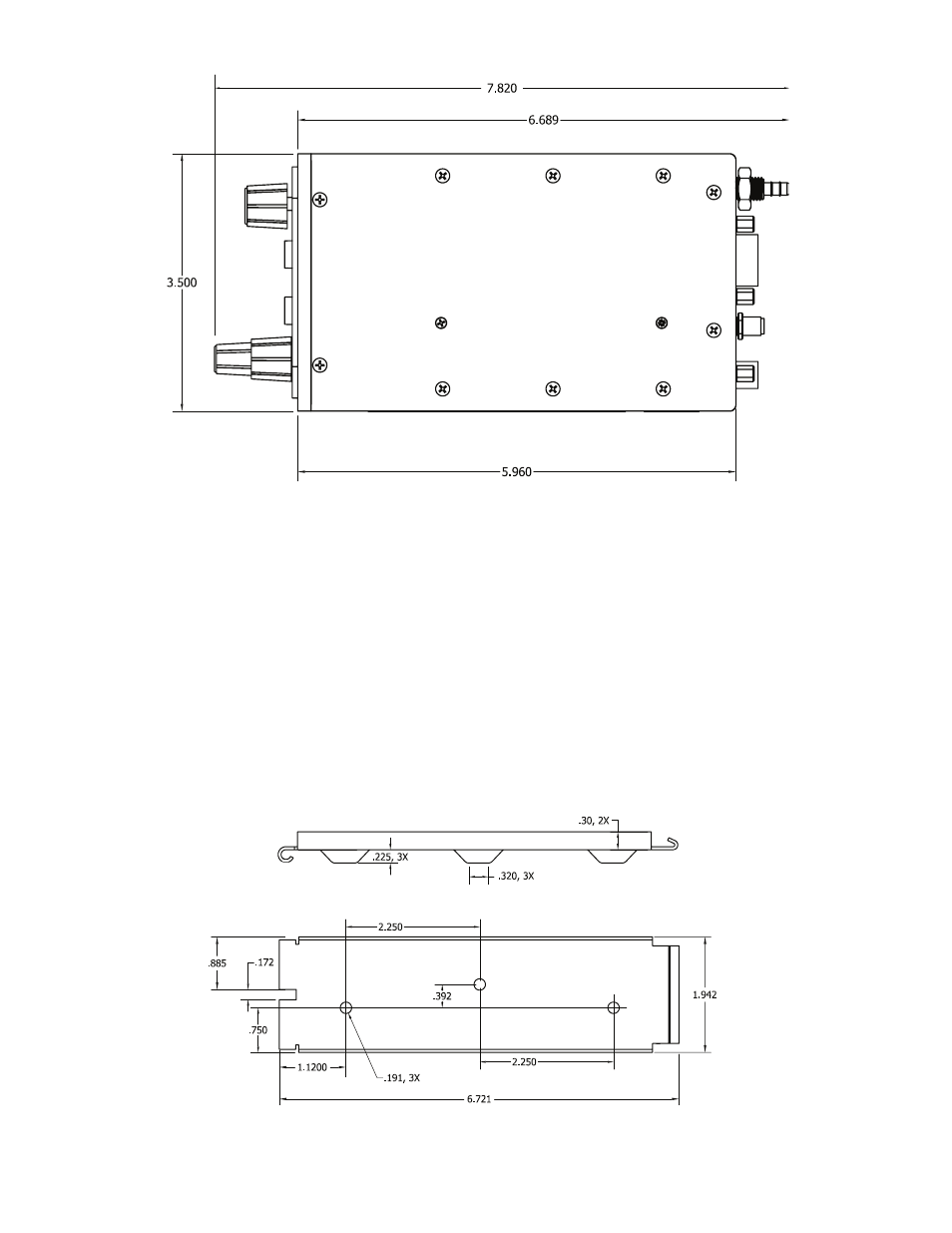

Figure 3-3
Remote Mounting Tray Dimensions
Figure 3-2
STX 165 Top View Dimensions
