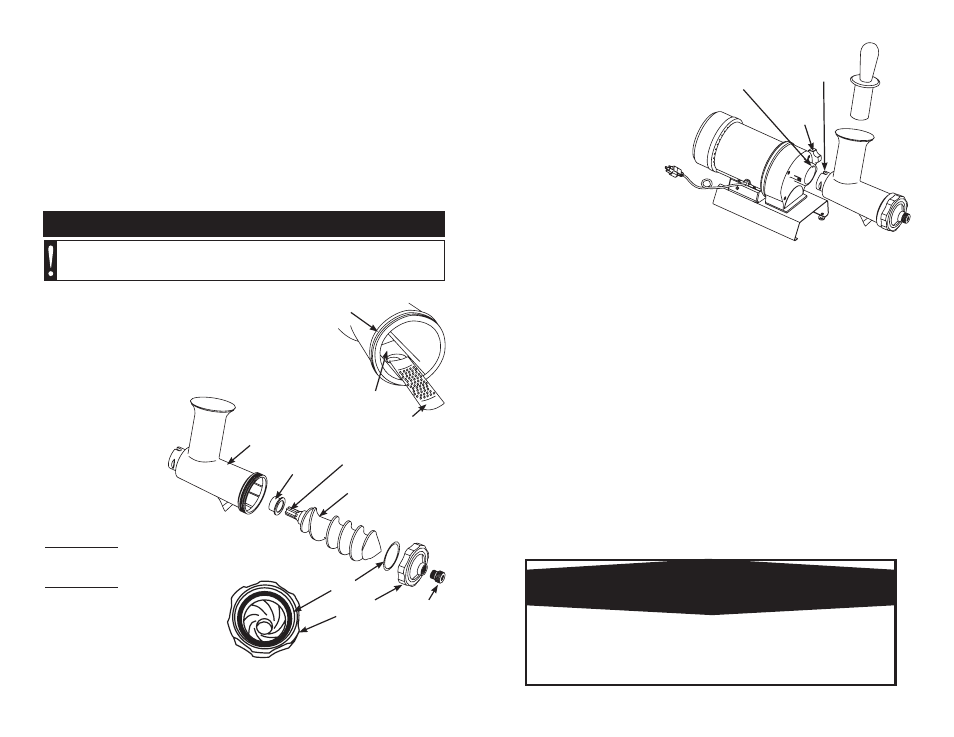

ASSEMBLY INSTRUCTIONS

1. Slide the

Screen (curved side

down) into the slot on the inside bottom

of the

Head until it stops. Make sure

both sides of the

Screen are within the

slot (Figure 2).

2. Place the

Auger Bearing onto the

splined end of the

Auger. Insert the the

Auger into the open end

of the

Head until it stops.

The splines on the end of

the

Auger should protrude

from the opposite end of the

Head (Figure 3).
3. Place the

Rubber

Gasket onto the flat surface

on the inside of the

Head

Aligning Cap below the

threads. The

Rubber

Gasket is properly installed

when it lays flat on the

surface (Figure 4).

4. Screw the

Head Aligning Cap

counterclockwise onto the

Head until it

is firmly seated.

5. Screw

the

Waste

Valve

counterclockwise into the tip of the

Head Aligning Cap until it stops.
7. Loosen the

Head Locking Screw

on the

Juicer Motor until it no longer

protrudes into the receptacle for the

Head Assembly (Figure 4).
8. Install the

Head Assembly onto the

Juicer Motor. You will need to align the

cutout on the

Head with the pin inside

Figure 2

Figure 3

Slot

WARNING!

Before cleaning, assembling or disassembling the

Wheatgrass Juicer, make sure it is turned “OFF” and the Power Cord is

disconnected from the electrical outlet.

Head

Screen

Head

Auger

Bearing

Auger

Rubber

Gasket

Head

Aligning

Cap

Waste

Valve

Auger

Splines

Figure 4

CAUTION:

Make sure Screen

is properly seated

in the slot before

operation or unit

damage will occur.

Pin Inside

Receptacle

Cutout

In Head

5. After washing, drain the sink and refill it with warm water.

6. Rinse the parts by submerging them in water. Change the water and repeat, if necessary, to

remove all of the detergent.

7. When done rinsing, drain the sink and refill it with a sanitizing solution of water and chlorine

bleach (use 1 ounce of chlorine bleach per 4 gallons of water). Soak the parts in the solution for

a minimum of 5 minutes.

8. Remove the parts from the sink.
9. Allow the parts to air-dry before reassembling and storing the

Wheatgrass Juicer.

NOTE! The Wheatgrass Juicer is NOT dishwasher safe.

the receptacle (Figure 5). Align the

Auger Splines with the keyways

on the drive shaft of the

Juicer

Motor. If the parts do not align,

rotate the

Auger end (it protrudes

from the

Head) a bit and try again.

Wiggling the

Head Assembly

during installation may help as well.
IMPORTANT: Tighten the Head

Locking Screw until it firmly holds

the

Head Assembly in place.

CAUTION!: DO NOT operate the

Wheatgrass Juicer without the

Head Assembly firmly secured

into place. Personal injury or unit

damage may occur.

NEVER operate Wheatgrass Juicer unless it is

fully and properly assembled.

To avoid serious or fatal injury, NEVER reach into any inlet or outlet.

ONLY USE the Stomper to push wheatgrass into the Head.

Read and understand all information in this manual before use.

WARNING!
