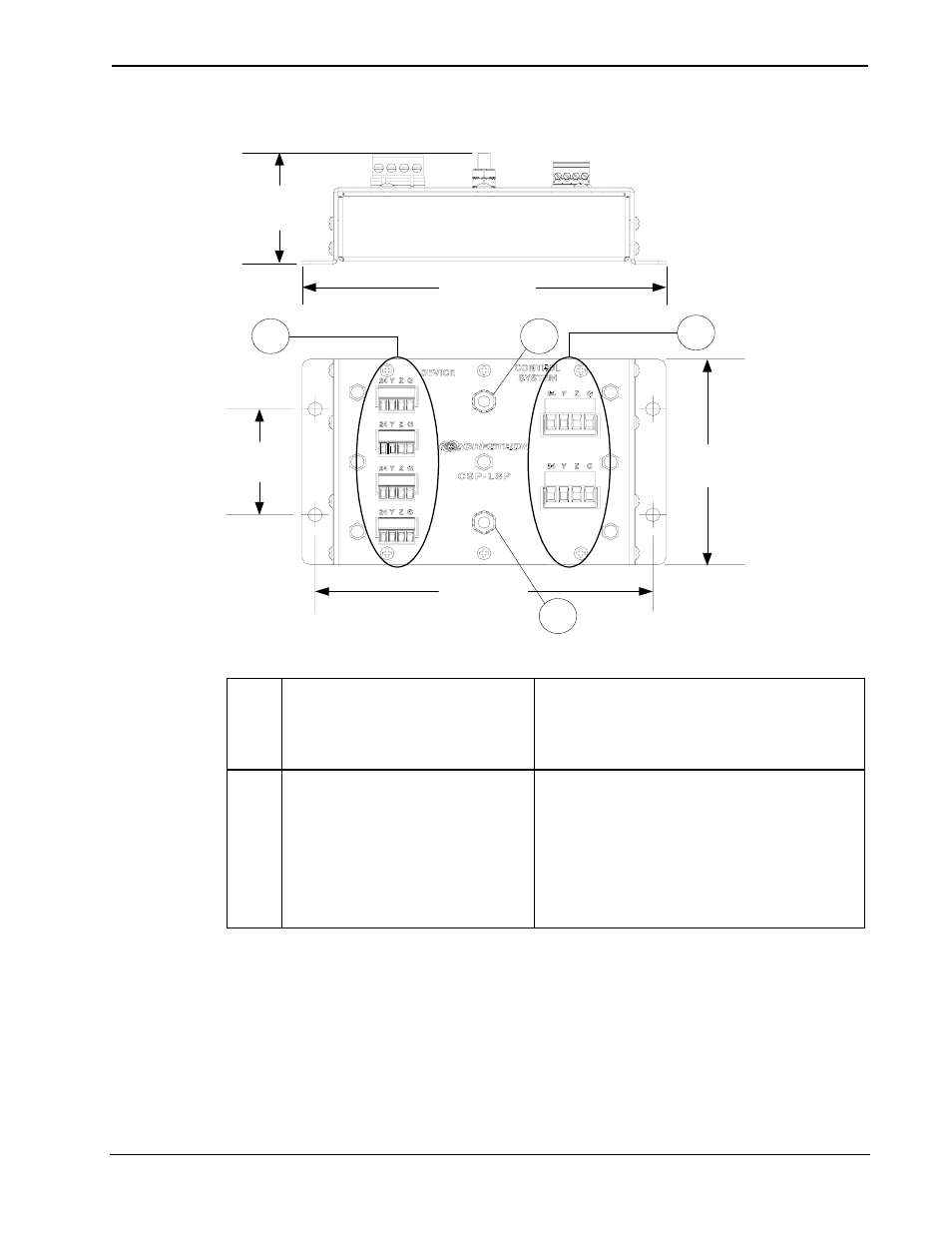

CSP-LSP Overall Dimensions
1.75 in
(4.45 cm)
5.23 in
(13.29 cm)
3.40 in
(8.64 cm)
1.83 in
(4.65 cm)
1
3
2
2
5.64 in
(14.32 cm)
Connectors, Controls & Indicators
# CONNECTORS 1 ,
CONTROLS &
INDICATORS
DESCRIPTION
1 DEVICE (4) 4-pin 3.5mm detachable
terminal blocks;
Cresnet ports, paralleled, for
connection to Cresnet wiring
and devices that are subject to
lightning strikes.
(Continued on following page)
8 • Lightning Strike Protector: CSP-LSP Operations & Installation Guide – DOC. 6643A
