ORDERING
FIXTURE
203= LED Cambria Accent Fixture
CONSTRUCTION
__ = Standard Side Swivel Stem, 1/2” NPS
CRS = Center Rear Swivel Stem, 1/2” NPS
FM = Rear Flsuh Mount, 1/2” NPS
FL = Flush Lens, Side Swivel Stem, 1/2” NPS
SOURCE
12WLEDS = 12W Warm LED Spot
12NLEDS = 12W Neutral LED Spot
12CLEDS = 12W Cool LED Spot
12WLEDN = 12W Warm LED Narrow
12NLEDN = 12W Neutral LED Narrow
12CLEDN = 12W Cool LED Narrow
12WLEDW = 12W Warm LED Wide
12NLEDW = 12W Neutral LED Wide
12CLEDW = 12W Cool LED Wide
Note:
Warm = 3000K
Neutral = 4100K
Cool = 6500K
Spot = 5 degrees
Narrow = 15 degrees
Wide = 25 degrees
VOLTAGE
12 = 12 Volts
FINISH
Painted
BK = Black
BZ = Bronze
CS = City Silver
VE = Verde
WT = White
Metal
NBR = Brass
NBZ = Bronze
NCP = Copper
NSS = Stainless Steel
OPTICAL ACCESSORIES
LSL = Linear Spread Lens, 2.00” Dia.
OSL = Overall Spread Lens, 2.00” Dia.
DIF = Diffused Lens, 2.00” Dia.
LVR = Hex Cell Louver, 2.00” Dia.
FH203 = 45 degree angled glare shield
ø2-1/4”
[57mm] 4-1/2”
[114mm]
1-3/4”
[44mm] Cambria 203
Side Swivel Stem
ø2-1/4”
[57mm]
5-3/8”
[137mm]
1-7/8”
[48mm] Cambria 203-CRS
Center Rear Swivel
ø2-1/4”
[57mm]
4-1/2”
[114mm]
Cambria 203-FM
Flush Mount
ø2-1/4”
[57mm]
3-5/8”
[92mm]
1-3/4”
[44mm]
Cambria 203-FL
Flush Lens /
Side Swivel Mount
90º
75º
60º
45º
90º
75º
60º
45º
30º 30º 15º
650
1300
1950
15º 0º
0º: LEGEND
90º:
180º:
270º:
Cambria 203-LED
Photometry

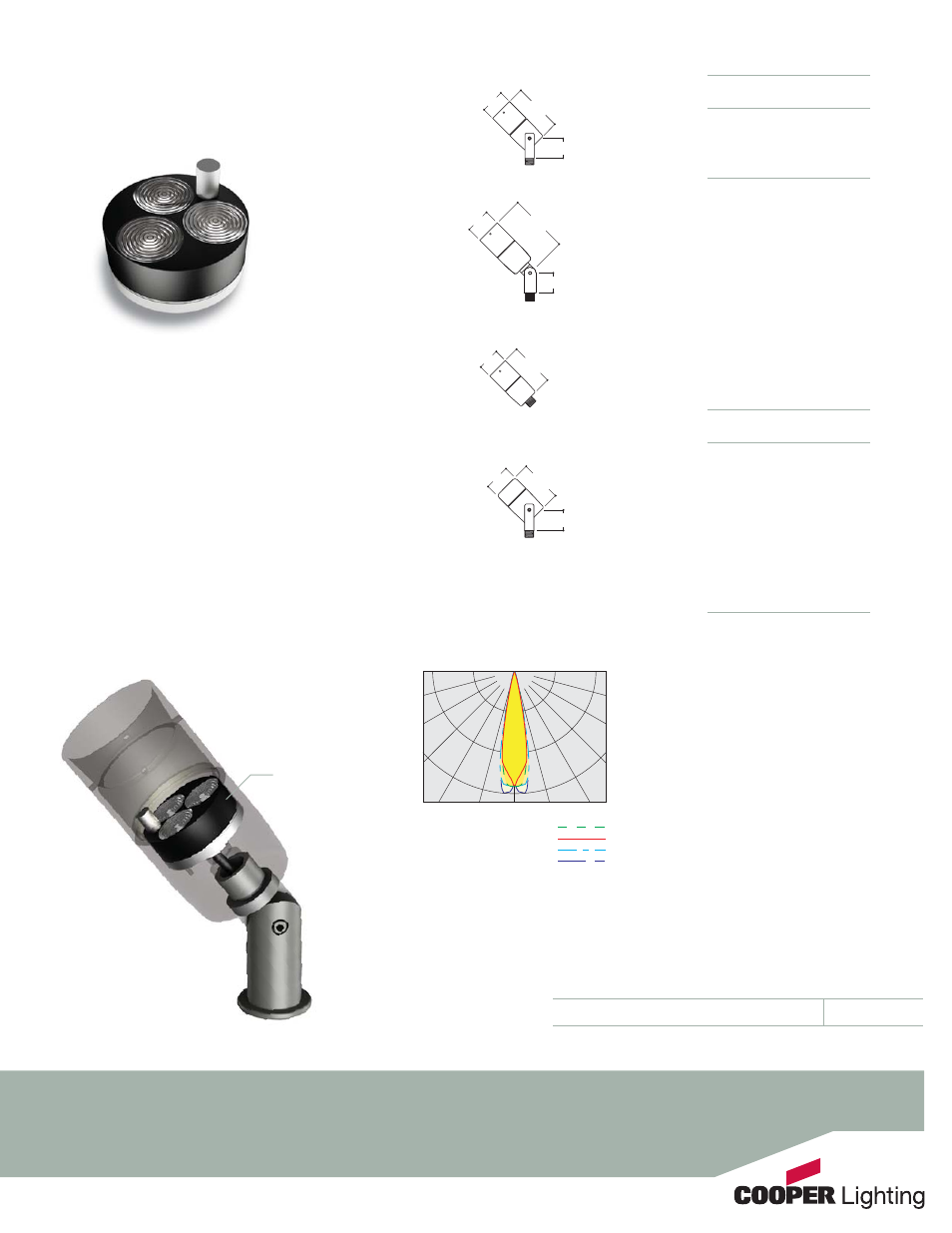

CAMBRIA 203 LED
Seamlessly integrating next
generation sustainable technology
Lumière’s next generation offering in the LED field
builds upon the latest available device and driver
technology and is fully upgradable as the technology
continues to evolve.
Specifically designed for low voltage systems, Lumière’s
Cambria 203 LED module enables the end user to
selectively integrate both halogen and LED devices on
the same lighting circuit (12V). As the 203-LED fixtures
can be installed in the exact same way as any other
low voltage system, integration of LED technology into
both new-build and retrofit applications is simple and
seamless. This proprietary MR16 style LED module
design also incorporates a thermal feedback control
circuit that monitors on-board temperatures and
modifies its own operating parameters to optimize
system performance and maximize life.
t8BUUT
t0OCPBSEESJWFS
t-PXWPMUBHFJOQVU
tDPMPSUFNQFSBUVSFT ,
,
,
tPQUJDT 


t5IFSNBMGFFECBDLDPOUSPM
t5IFSNBMMZEFTJHOFEGPSQBDLBHF IFBUTJOL
12W LED
Module
gy y pg gy
continues to evolve.
Specifically designed for low voltage systems, Lumière’s
