wires are cut or have damaged insulation. Using this charger with
any of these symptoms could result in a fire, property damage, or
personal injury. Have a qualified service person make the
necessary repairs. Repairs should not be made by people who are
not qualified.

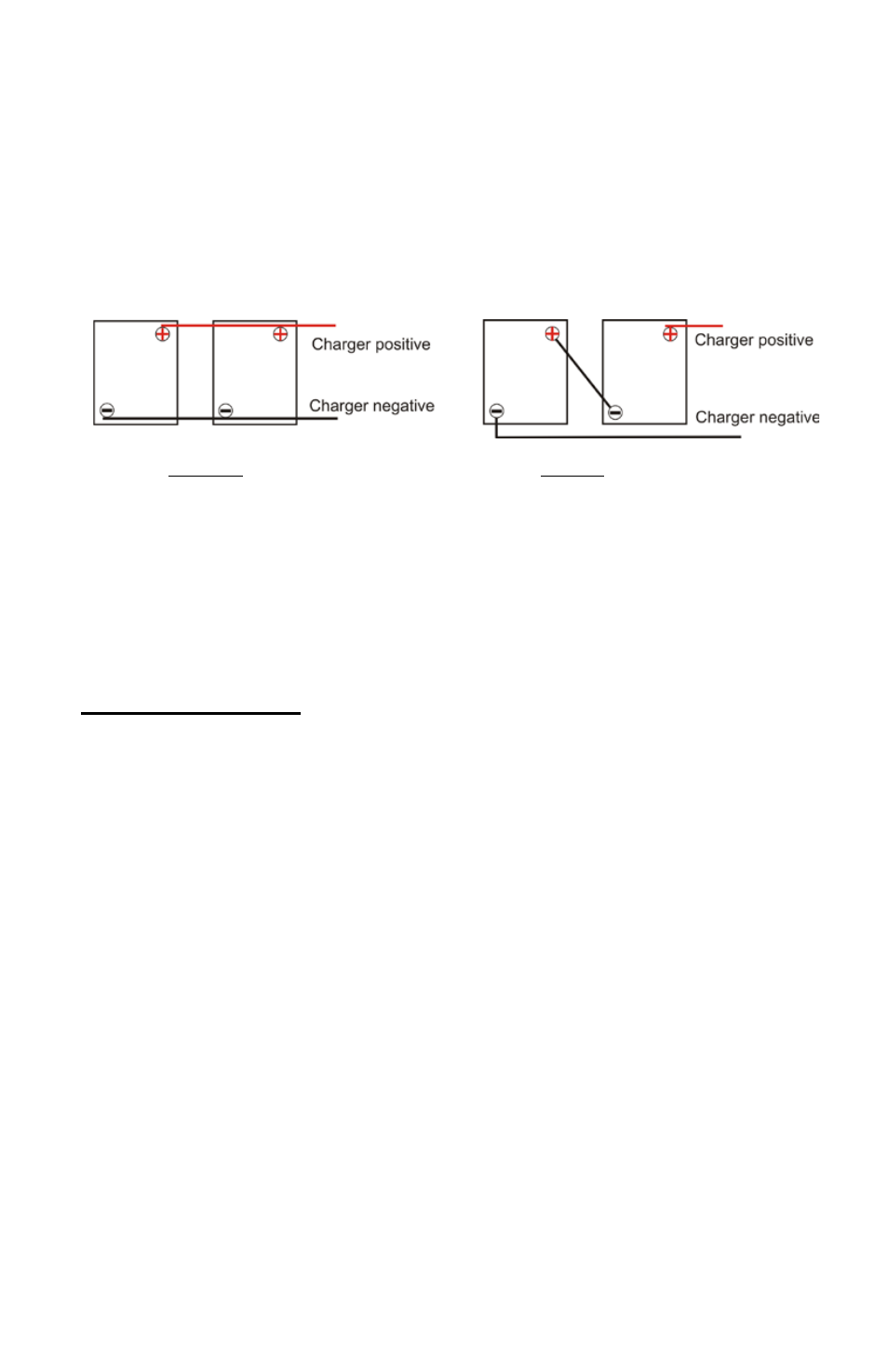

Illustration of series and parallel battery connections:
Parallel Series
REPROGRAMMING:
There are 5 charge profiles, and 5 programming adjustments that
can be made to the profiles.
The profiles are:
F1 is a single stage float profile generally used for gel and starting
type batteries. There are no adjustments available to this profile.
F2 is a two stage profile for deep cycle wet cell batteries. Bulk
charging, a gassing cycle, then termination.
F3 is a three stage profile for deep cycle wet cell batteries. Bulk
charging, a gassing cycle, and maintenance.
F4 is a three stage profile for AGM batteries. Bulk charging,
absorption cycle, and maintenance.
When batteries are connected in
Parallel the battery amp hour
capacity is additive and the
voltage remains the same.
Example: two 180 amp hour
12 volt batteries would equal
12 volts and 360 amp hour capacity When batteries are connected in
Series the voltage is additive and
the battery amp hour
capacity remains the same.
Example: two 180 amp hour
12 volt batteries would equal
24 volts and 180 amp hour capacity
