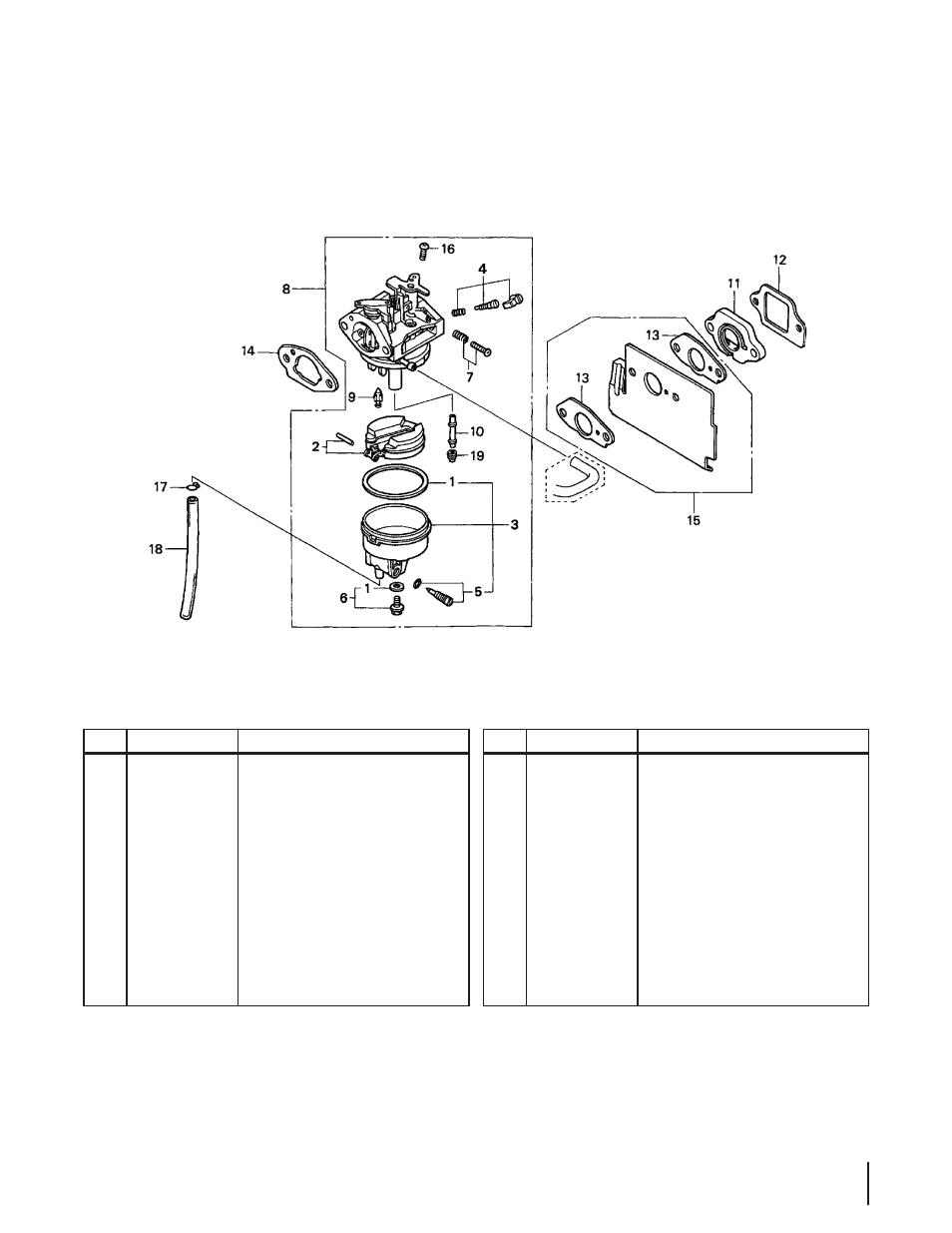

RT 65 Honda GC190A Carburetor
CARBURETOR
MAY, 2006 2006 American Honda Motor Co., Inc. 1-9
Z1A0E1400A
MODEL TYPE
A =GC190A a =MHA2
E-14
Engine
Serial Number
Ref Description From To QTY Part Number H/C
1 GASKET SET.............................................. -------- -------- 1 16010-883-015 3088416
2 FLOAT SET ................................................ -------- -------- 1 16013-ZL1-003 5580162
3 CHAMBER SET, FLOAT ............................ -------- -------- 1 16015-ZL8-003 5611033
4 SCREW SET .............................................. -------- -------- 1 16016-Z1A-013 7443823
5 SCREW SET, DRAIN.................................. -------- -------- 1 16024-124-760 0640052
6 SCREW SET B............................................ -------- -------- 1 16028-ZE0-005 1441518
7 SCREW SET .............................................. -------- -------- 1 16029-ZG0-901 5580170
8 CARBURETOR ASSY. (BB61E B).............. -------- -------- 1 16100-Z1A-013 7866106
9 VALVE, FLOAT
(CARBURETOR NO.).............................. -------- BB61E A 1 16155-ZL8-003 5611058
VALVE, FLOAT
(CARBURETOR NO.).............................. BB61E B -------- 1 16155-ZL8-013 7983315
10 NOZZLE, MAIN............................................ -------- -------- 1 16166-Z1A-003 7541238
11 INSULATOR, CARBURETOR .................... -------- -------- 1 16211-ZL8-000 5580238
12 GASKET, INSULATOR................................ -------- -------- 1 16212-ZL8-000 5580246
13 GASKET, CARBURETOR .......................... -------- -------- 2 16221-883-800 4581120
14 GASKET, CARBURETOR (CHOKE SIDE) -------- -------- 1 16228-ZL8-000 5580253
15 GUIDE, AIR ................................................ -------- -------- 1 19650-ZL8-000 5611421
Ref. Part Number Description
1. 16010-883-015 Gasket Set
2. 16013-ZL1-003 Float Set
3. 16015-ZL8-003 Float Chamber Set
4. 16016-Z1A-013 Screw Set
5. 16024-124-760 Drain Screw Set
6. 16028-ZE0-005 Screw Set B
7. 16029-ZG0-901 Screw Set
8. 16100-Z1A-013 Carburetor Assembly, BB61E B
9. 16155-ZL8-003 Float Valve, Carb.No. BB61E A 1
— 16155-ZL8-013 Float Valve, Carb.No BB61E B
10. 16166-Z1A-003 Main Nozzle
Ref. Part Number Description
11. 16211-ZL8-000 Carburetor Insulator
12. 16212-ZL8-000 Insulator Gasket
13. 16221-883-800 Carburetor Gasket
14. 16228-ZL8-000 Carburetor Gasket (Choke Side)
15. 19650-ZL8-000 Air Guide
16. 93500-05006-0H Pan Screw, 5 x 6
17. 95002-02650 Tube Clip, B6.5
18. 95003-07008-60M Vinyl Bulk Hose (4X7X8000, 4X7X150)
19. 99101-124-0620 Main Jet, #62
— 99101-124-0650 Main Jet, #65
— 99101-124-0680 Main Jet, #68
15
