PS Engineering
PMA6000 Series Audio Selector Panel and Intercom System
Installation Manual
200-066-0006 Appendix B Rev. 6, March 2005

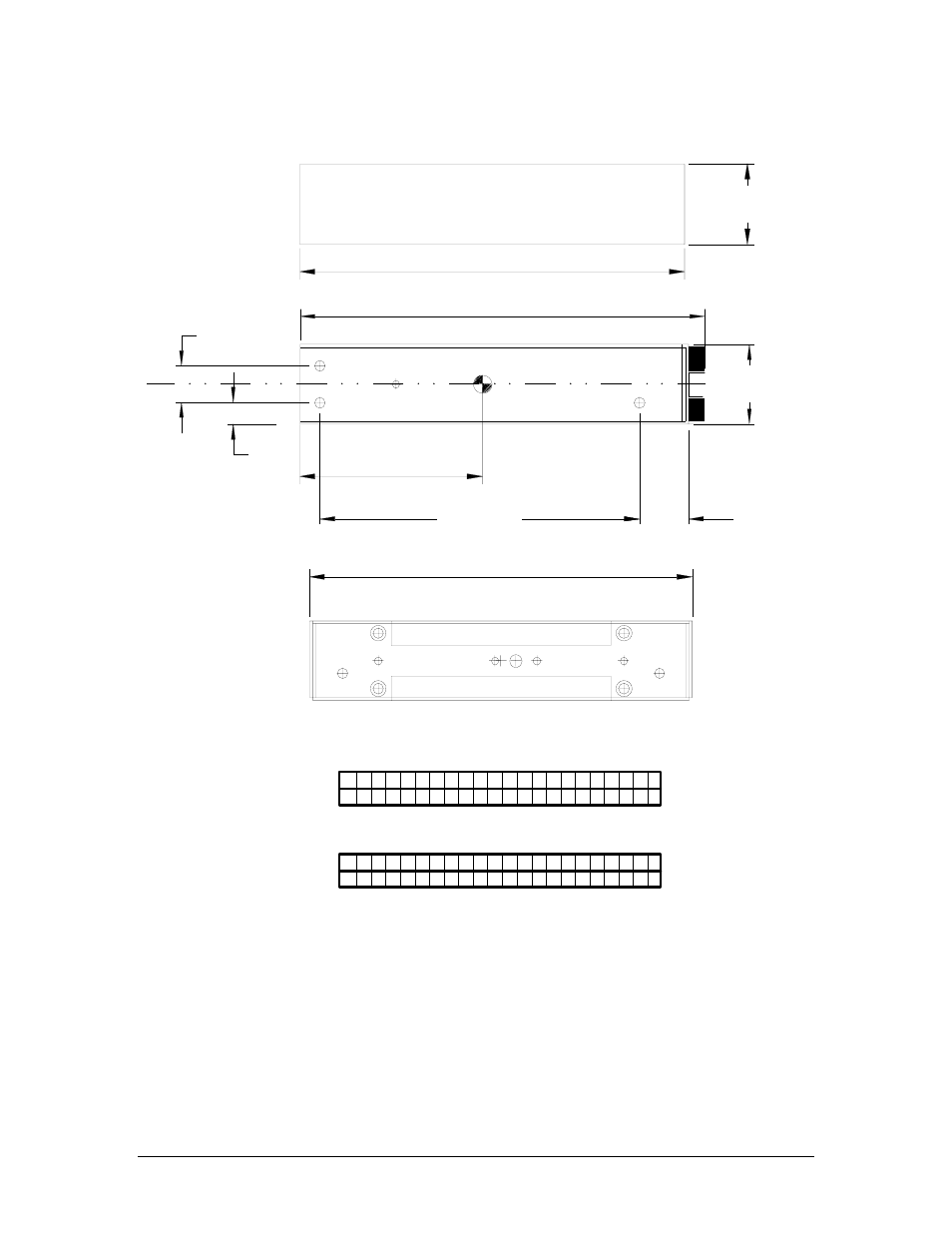

Appendix B- Installation Drawing
1.31 in
(33.27 mm)
0.60 in (15.25 mm)
0.35 in
(8.9 mm)
5.25 in
(133.4 mm) 0.8 in
(20.3 mm)
6.31in (160.3 mm)
Cutout size for front mount installation
1.315 in
(33.4 mm)
6.28 in
(159.5 mm)
3.00 in (76.2 mm)
CG
Weight: 1.5 lb with tray and connectors ( .68 kg)
Side View
Rear View
6.65 in (167 mm)
J1 (bottom)
J2 (top)
Z Y X W V U T S R P N M L K J H F E D C B
22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2
A
1
Connector viewed from the rear
Z Y X W V U T S R P N M L K J H F E D C B
22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2
A
1
