PCD7100 Series Audio Selector Panel and Intercom System
Installation and Operator’s Manual
200-971-0006 Appendix B Rev. 8, Jan. 2015

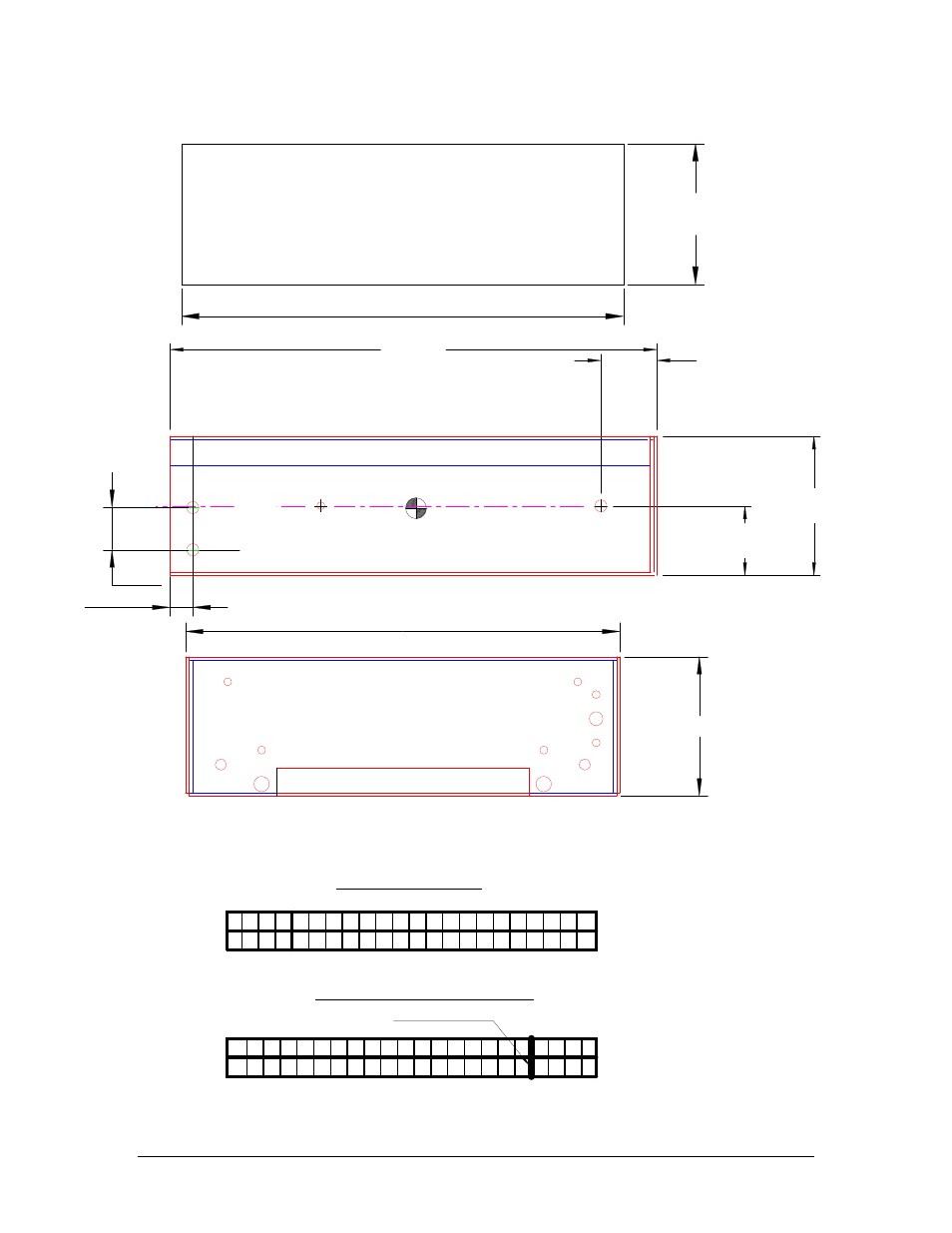

Appendix B – Installation Drawing
6.31in (160.3 mm)
Cutout size for front mount installation
2.00 in
(5.08 mm)
Weight: 2.2 lb with tray and connectors ( 1.0 kg)
Connector viewed from the rear
J1
Z Y X W V U T S R P N M L K J H F E D C B
22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2
A
1
Connector Key
6.21
1.99
6.95
0.80
0.99
1.98
C
C
D C
0.33
0.60
J1
Z Y X W V U T S R P N M L K J H F E D C B
22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2
A
1
Connector viewed from the FRONT of unit tray
