PS Engineering PM1000II 11906 - Manual (Page 9)

May 2010 Page 9 200-124-0100 PM1000II Specialty Intercom Manual Page 9 May 2010
IRS Playback Schematic (Section 2.2.4)
PS Engineering, Inc. 2010©
Copyright Notice
Any reproduction or retransmittal of this publication, or any portion thereof, without the expressed written permission of PS Engineering,
Inc. is strictly prohibited. For further information contact the Publications Manager at PS Engineering, Inc., 9800 Martel Road, Lenoir City,
TN 37772. Phone (865) 988-9800
PM1000II With Crew p/n 11908
PM1000II Part Number 11906________ or 11908_________
Serial Number______________________________________
Purchase Date_______________________________________
Installed by:_________________________________________
1 2 3 4 5
14 15 16 17 18
6 7 8 9
19 20 21 22
10
23 24
11 12
25
13
Pass 1 & 2 Phones Hi
Pass. 1& 2 Phones Lo
Power
(11-33 VDC
)
Ground
Music 2 Input Hi
Music 2 Input Lo A/C Radio Ground
A/C Radio Input
Pilot Phones Gnd
Pilot Phones Hi
Copilot & Pass Phones Lo
Copilot & Pass Phones Hi
Music Input Lo
Music Input Hi
Pass 2 Mic Hi
Copilot Mic Hi
Pass 1 Mic Hi
Copilot PTT
Copilot & Pass Mic Lo
Pilot Mic Audio Hi
Pilot Mic Lo
Pilot PTT
A/C Radio PTT
A/C Mic Audio Hi
A/C Radio Gnd

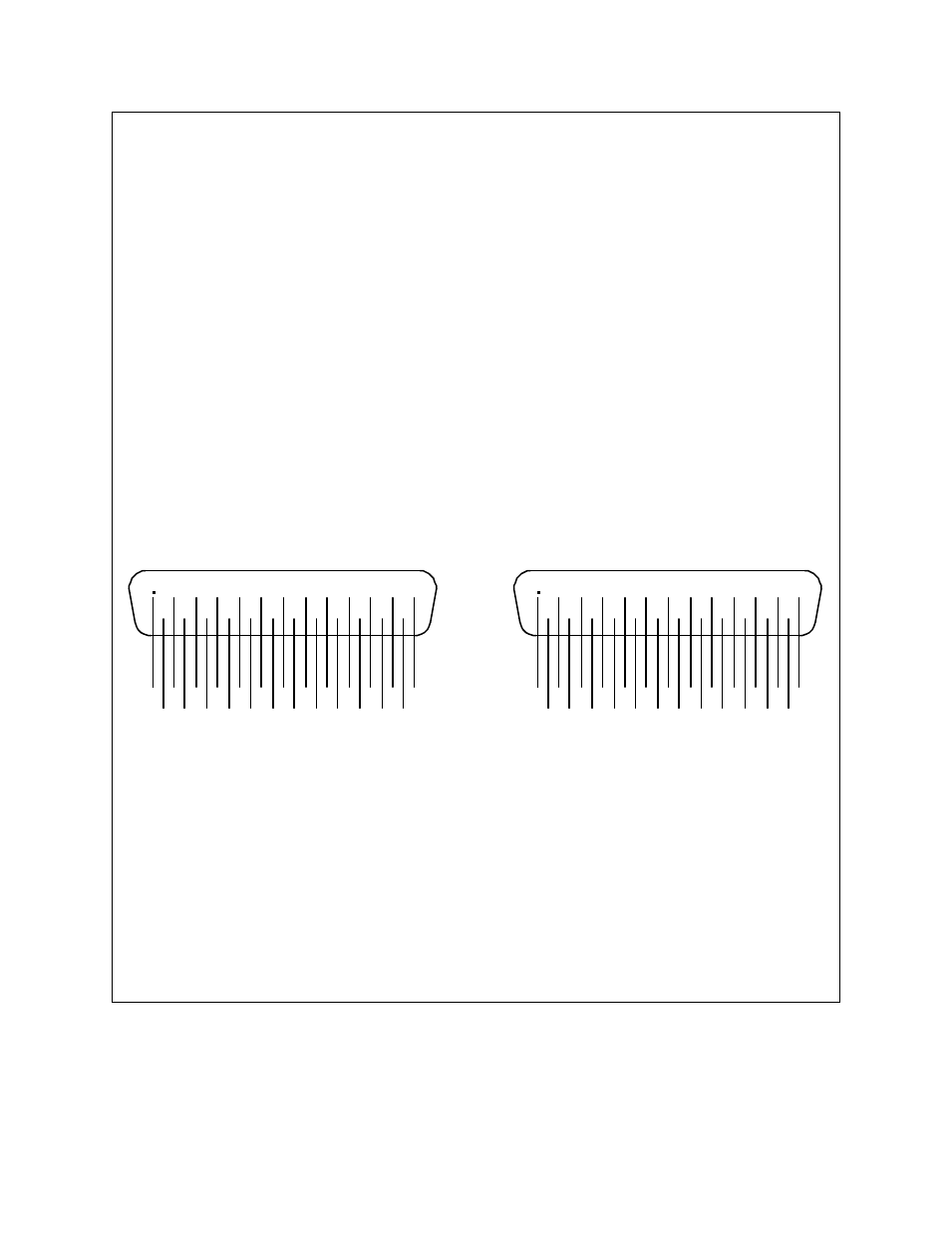

11908 Connector layout, viewed from rear
1 2 3 4 5
14 15 16 17 18
6 7 8 9
19 20 21 22
10
23 24
11 12
25
13
No Connect
No Connect
Power
(11-33 VDC
)
Ground
No Connect
No Connect A/C Radio Ground
A/C Radio Input
Pilot Phones Gnd
Pilot Phones Hi
Copilot & Pass Phones Lo
Copilot & Pass Phones Hi
Music Input Lo
Music Input Hi
Pass 2 Mic Hi
Copilot Mic Hi
Pass 1 Mic Hi
Copilot PTT
Copilot & Pass Mic Lo
Pilot Mic Audio Hi
Pilot Mic Lo
Pilot PTT
A/C Radio PTT
A/C Mic Audio Hi
A/C Radio Gnd
11906 Connector layout, viewed from rear
