PS Engineering
PMA9000EX Audio Selector Panel and Intercom System
Installation and Operator’s Manual
200-920-0000 Page 3-2 Rev. 9, Jan. 2011
The system is designed to block continuous tones; therefore people humming or whistling in mon otone
may be blocked after a few moments.
For consistent performance, any headset microphone must be placed within ¼-inch of your lips, prefera-
bly against them. (ref: RTCA/DO-214, 1.3.1.1 (a)).
NOTE
It is also a good idea to keep the microphone out of a direct wind path. Moving your head through a vent
air stream may cause the IntelliVox® to open momentarily. This is normal.
The IntelliVox® is designed to work with normal aircraft cabin noise levels (70 dB and above). It loves
airplane noise! Therefore, it may not recognize speech and clip syllables in a quiet ca bin, such as in the
hangar, or without the engine running. This is normal.
For optimum microphone performance, PS Engineering recommends installation of a Microphone Muff
Kit from Oregon Aero (1-800-888-6910). This will not only optimize VOX performance, but will improve
the overall clarity of all your communications.
Table 3-1 Mic Muff ™ Part Numbers
Manufacturer Model Mic Muff™ Part Number
Bose Dynamic
Electret
M87 Dynamic 90010
90015
90020
David Clark H10-30
H10-20, H10-40
H10-13.4 90010
90015
90015
Lightspeed All 90015
Peltor 7003
7004 90010
90015
Pilot 11-20 & 11-90 90015
Sennheiser 90015
Telex Airman 750, Echelon
AIR3000 90015
90010

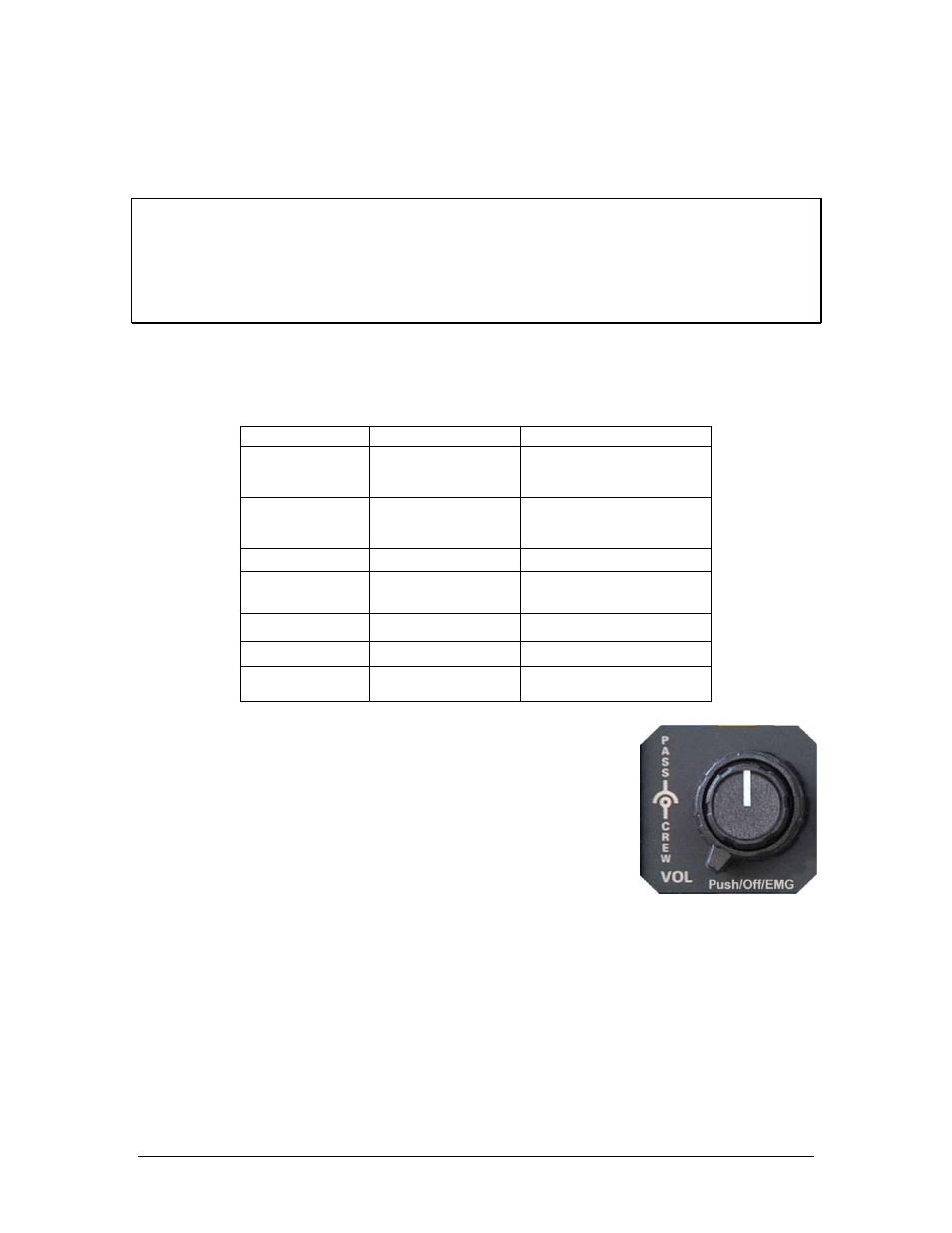

3.7.2 Intercom Volume Control (7)
The smaller, inner volume control knob adjusts the loudness of the intercom
for the pilot and copilot. It has no effect on selected radio levels, music input
levels or passengers' volume level.
The larger, outer volume control knob controls intercom volume or the
passengers. It has no effect on radio or music levels.
Adjust the radios and intercom volume for a comfortable listening level.
Most general aviation headsets today have built-in volume controls;
therefore, volume also can be further adjusted at the individual hea dset.
3.7.2.1 Mono headsets in Stereo Installation
The pilot and copilot positions work with stereo or mono headsets. All passenger headsets are connected
in parallel. Therefore, if a monaural headset is plugged in to a PMA9000EX Stereo installation, one
channel will be shorted. Although no damage to the unit will occur, all passengers will lose one cha nnel,
unless they switch to the “MONO” mode on the headset. PS Engineering modifies headsets to add stereo
capability, using high-fidelity speakers. Contact factory for details.
