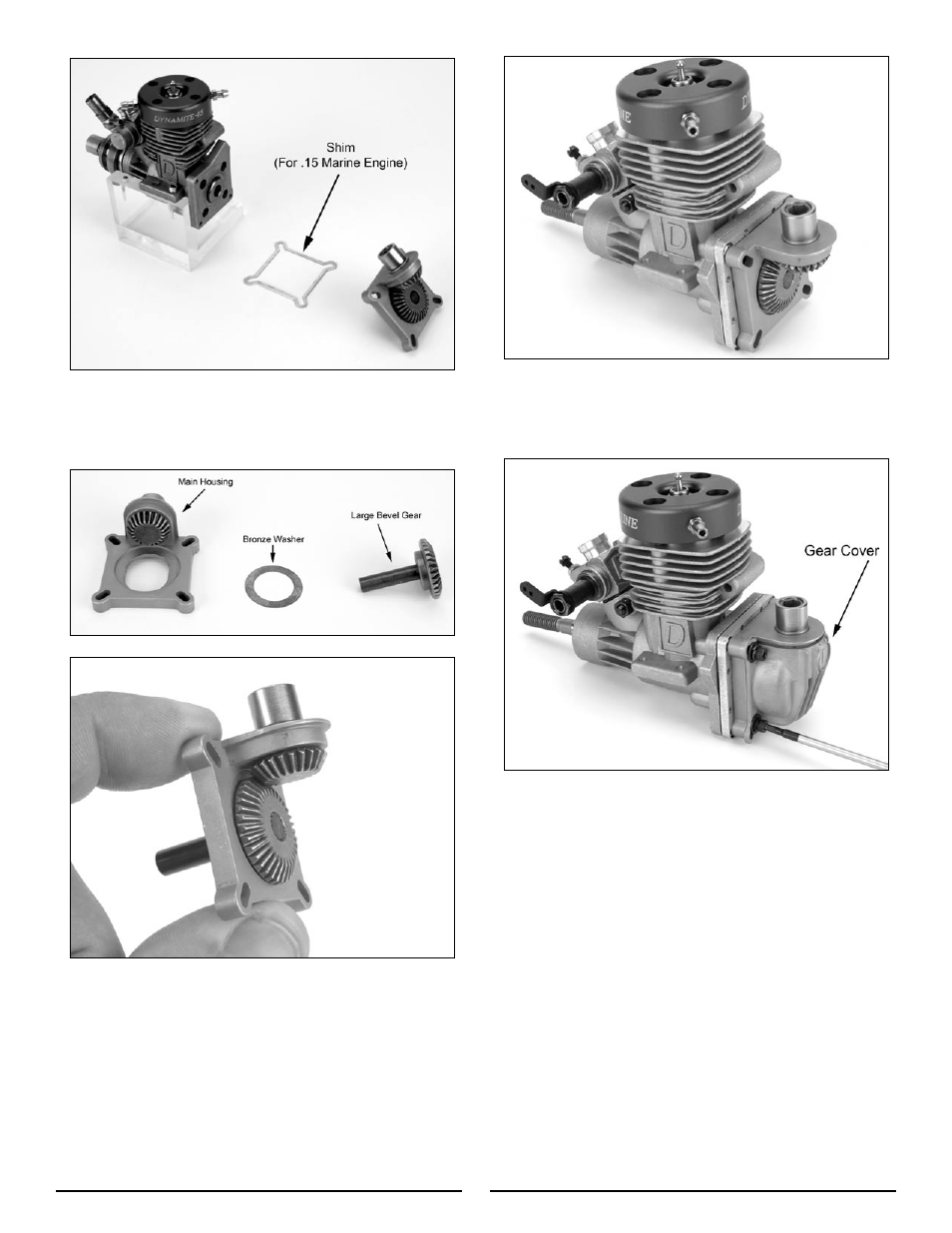

(.15 Marine Engine) Use the included shim plates
between the backplate and the Tiger Drive main
housing to create clearance for the starter shaft.
Step 3: Place the bronze washer behind the
large bevel gear and insert them into the main
Tiger Drive housing.
Step 4: Slide the large bevel gear shaft through the
engine backplate and into one-way bearing. Put a
small amount of grease on the bevel gears.
Step 5: Place the gear cover over the gears. Slide
a 2.5mm lock washer, then a 2.5mm washer onto
each of the 2.5 x 10mm screws. Secure the gear
cover using the 2.5 x 10mm screws.
