The numbers in parentheses indicate the pages where each item is explained.
.
Camera

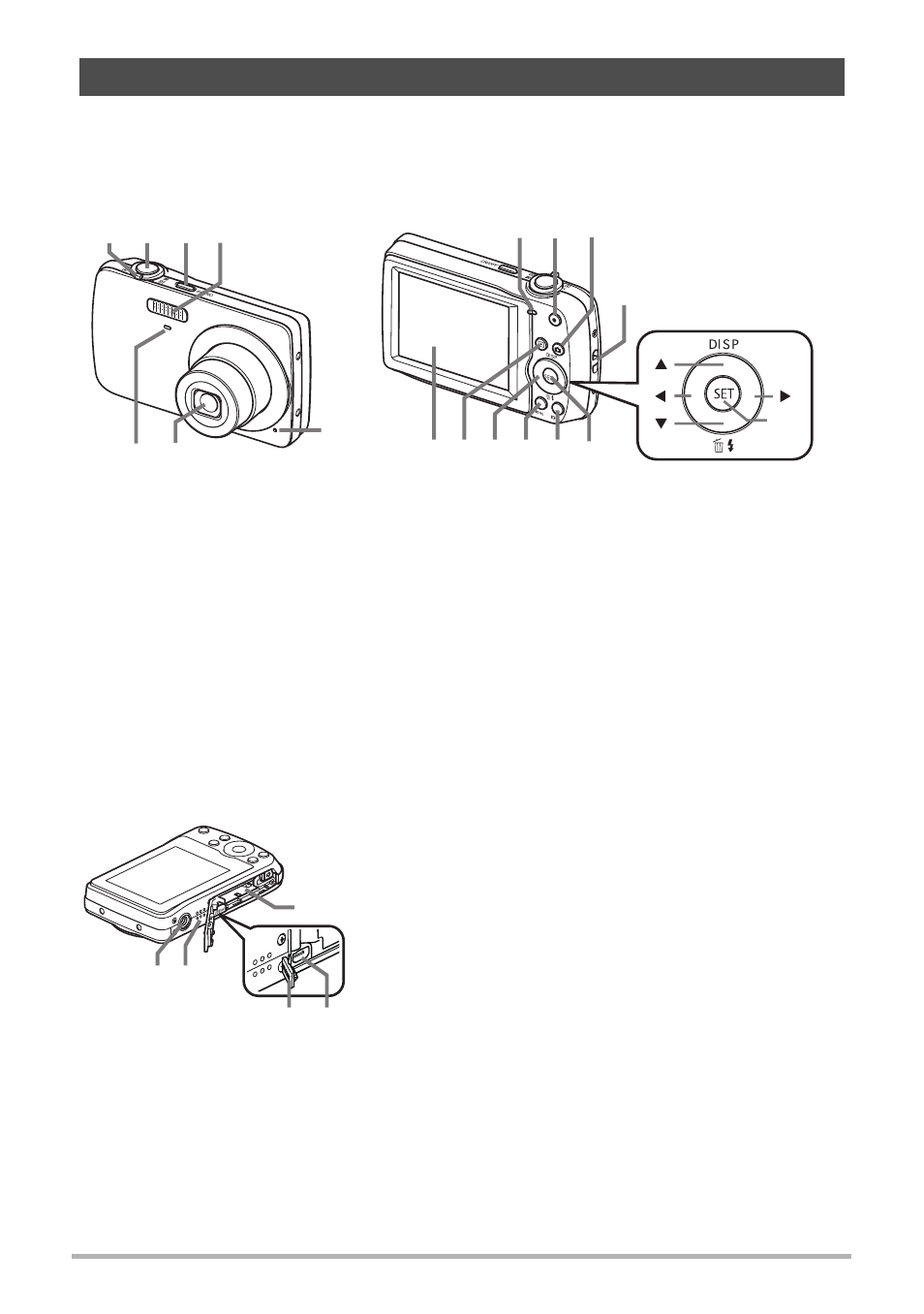

General Guide
1 Zoom controller
(pages 22, 42, 69)
2 Shutter button (page 22)
3 [ON/OFF] (Power)
(page 21)
4 Flash (page 33)
5 Microphone
(pages 46, 76)
6 Lens
7 Front lamp
(pages 25, 59)
bs Battery/memory card slots
(pages 16, 19, 122, 124)
bt USB/AV port (pages 70, 79, 87, 96)
ck Connector cover
cl Speaker
cm Tripod hole
Use this hole when attaching to a tripod.
4 3 2 1
6
5
7
bk
bn
8 9
bl
bm bp bq br bo
[ ]
[ ]
[ ] [ ]
[SET]
Front Back
ck
bs
bt
cl cm
Bottom
8 Back lamp
(pages 21, 23, 33)
9 [0] (movie) button
(page 45)
bk [r] (REC) button
(pages 21, 22)
bl Strap hole (page 2)
bm [SET] button (page 29)
bn [BS] button (page 49)
bo [MENU] button
(page 52)
bp Control button
([8] [2] [4] [6])
(pages 27, 29, 33, 52,
113)
bq [p] (PLAY) button
(pages 21, 26)
br Monitor screen
(pages 10, 113)
