V676 ® CONTROL CONSOLE INSTALLATION & OPERATION MANUAL 11
Step 8. Connect console to system using using either copper or fiber optic Ethernet (Figure 8).
Step 9. Connect optional external devices as required.

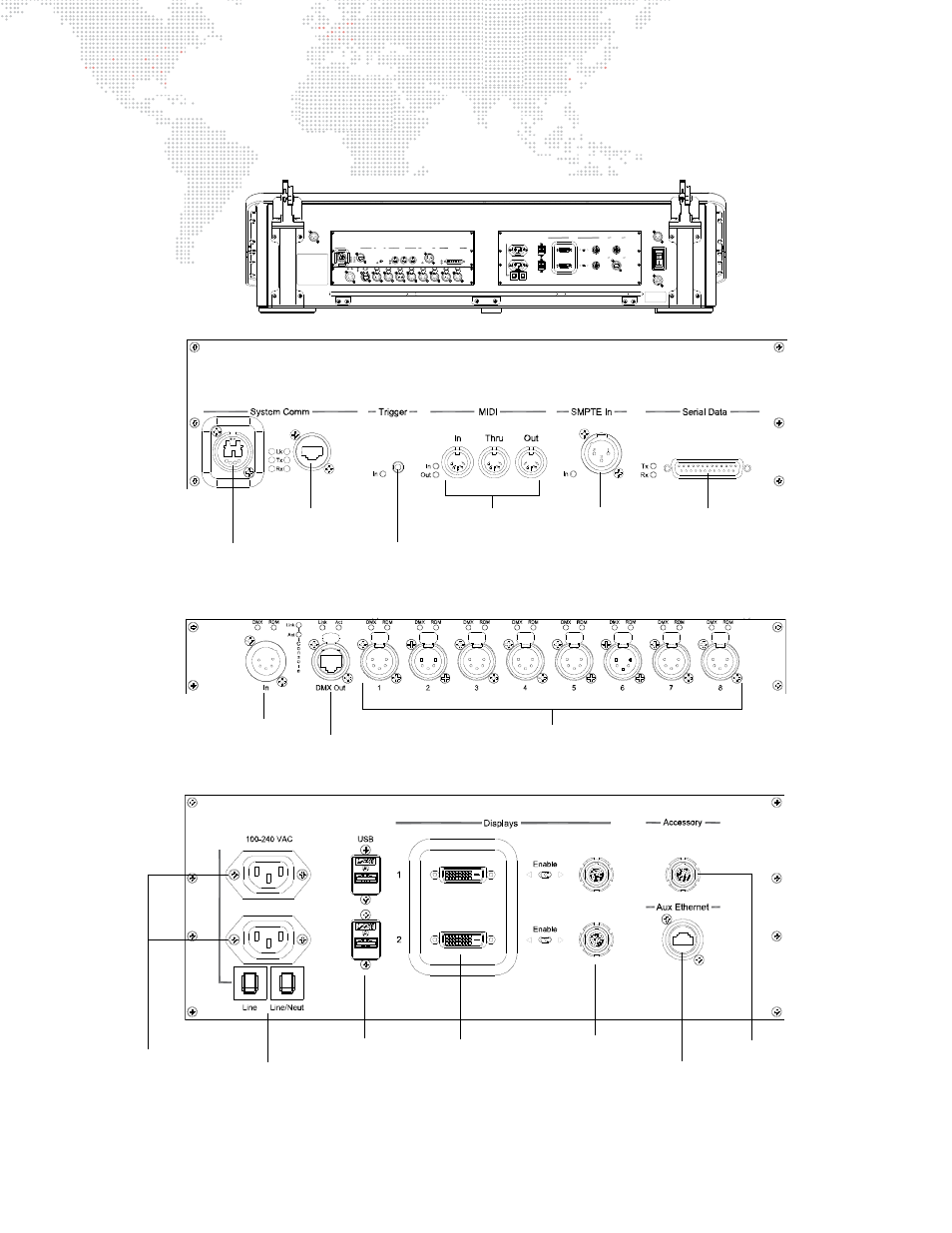

Figure 8: V676 Console Rear Panel Connections
INPUT POWER LABEL
COMPLIENCE
LABEL DMX RDM
1 DMX Out 2 3 4 5 6 7 8
DMX RDM DMX RDM DMX RDM DMX RDM DMX RDM DMX RDM DMX RDM DMX RDM
In
Link Act Link Act
C o n s o
l e
Trigger
In Thru Out
Tx
Rx In In In Out Tx Rx
Lk
System Comm MIDI SMPTE In Serial Data
A B
Displays Accessory
Aux Ethernet
Enable
Enable
1
2
USB 100-240 VAC
Line/Neut Line
SMPTE Input
Connection
Switch Closure
Trigger Port
System Fiber
System Service
Port
MIDI In, Thru, &
Out Connections
V676 Console Rear Panel
Optic Port
Ethernet Port
DMX512 Output
(8 Universes)
DMX512
Input Ethernet
DMX Output
Integrated Cable DVI
Outputs (2)
USB (2)
Auxiliary Convenience
Outputs (2)
Integrated Cable
Output
Outlet Breakers Ethernet Port
IEC
Convenience
Outlets (2)
OPTIONAL DMX PROCESSING MODULE*
* May not be installed
on all consoles.
