Chief Manufacturing Universal Static Wall Mount RMF1 User Manual
Page 8

RMF1
Installation Instructions
8

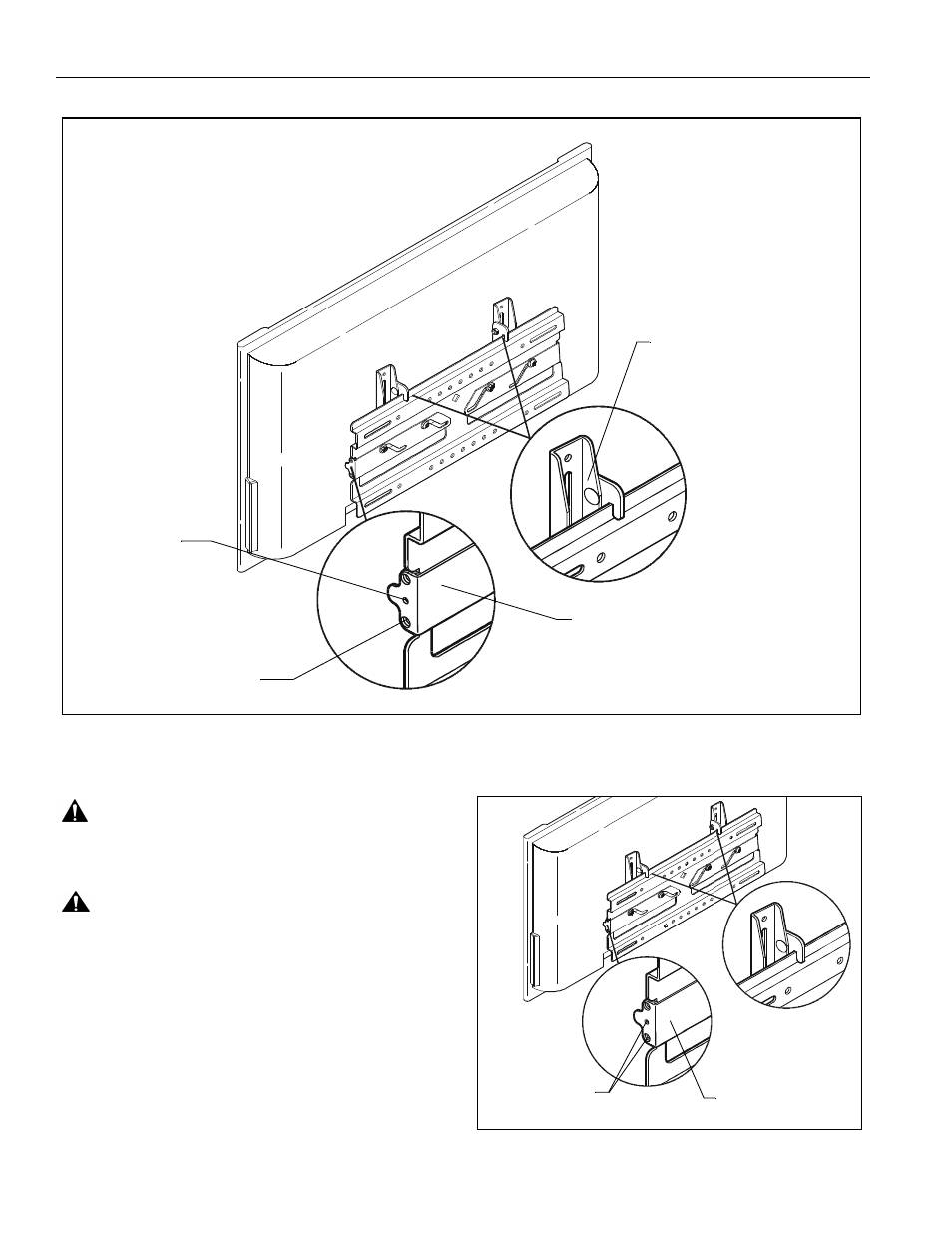

Figure 7
Install self-tapping
screw here
Install Padlock here
Slide latches in to secure screen
Place top of hooks over
top of wall plate
Display Removal
WARNING:
The plasma display is heavy and extremely
fragile. Exercise caution when removing the display from the
mount to avoid equipment damage or personal injury.
CAUTION:
Disconnect power and audio/video cables
before removing the display from its wall mount.
To remove display:
1.
If applicable, remove the self tapping screws and/or
padlocks from both sides of the wall plate. This hardware
provides security. (See Figure 8)
2.
Slide the security latches out on both sides to disengage the
display from the wall plate. (See Figure 8)
3.
With an assistant, lift the display up and off the wall plate to
remove the display from the wall. (See Figure 8)
Figure 8
Remove padlock
and self-tapping
screw if used.
Slide latches out
Lift display up until
hooks clear top of
wall plate
