FUSION SERIES
*Varies with screen mounting pattern and stud placement. **Varies with screen height.

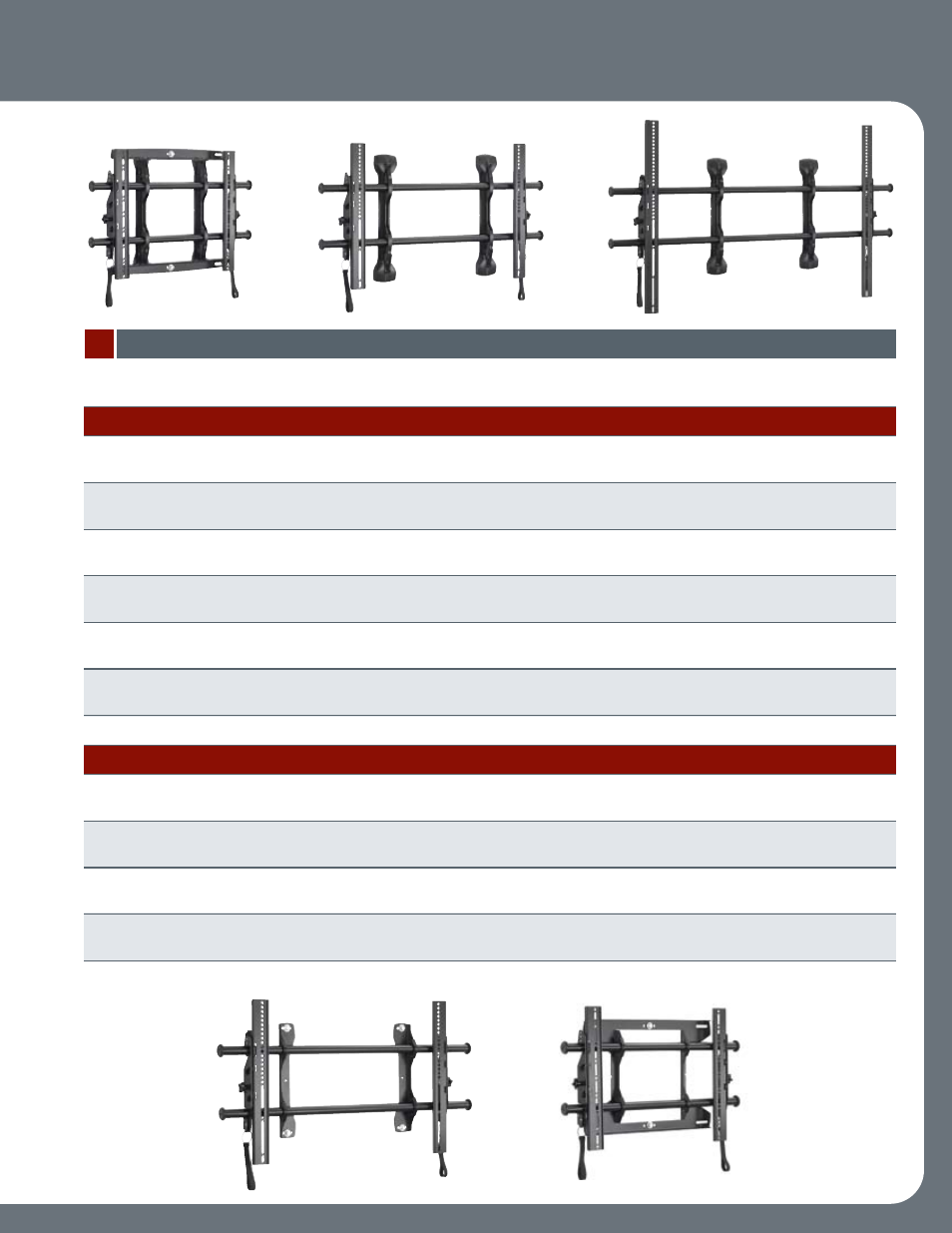

LTM XTM MTM
SPeCifiCAtiONS
LTA MTA
TV Size Centerless Centris Max Mounting Weight Capacity
Model Range Depth from Wall Lateral Shift* Low-Profile Tilt** Pattern (H,W) (single stud, dual stud)
fUSiON Series fixed & tilt Mounts with controlZone
MSM 26 - 47” 1.96” (50 mm) 14.5” (368 mm) – 15.75” (400 mm), 75 lbs (34 kg),
25.6” (650 mm) 125 lbs (56.7 kg)
MTM 26 - 47” 1.99” (51 mm) 14.5” (368 mm) 0-12˚ 15.75” (400 mm), 75 lbs (34 kg),
26.25” (667 mm) 125 lbs (56.7 kg)
LSM 37 - 63” 1.96” (50 mm) 17.5” (445 mm) – 19.9” (506 mm), 200 lbs (90.7 kg)
34.6” (879 mm)
LTM 37 - 63” 1.99” (51 mm) 17.5” (445 mm) 0-12˚ 19.9” (506 mm), 200 lbs (90.7 kg)
35.35” (895 mm)
XSM 55 - 75” 1.96” (50 mm) 23.5” (597 mm) – 25.6” (650 cm), 250 lbs (113 kg)
48.6” (124 cm)
XTM 55 - 75” 1.99” (51 mm) 23.5” (597 mm) 0-12˚ 25.6” (650 mm), 250 lbs (113 kg)
49.25” (126 cm)
fUSiON Series fixed & tilt Mounts
MSA 26 - 47” 1.96” (50 mm) 14.5” (368 mm) – 15.75” (400 mm), 75 lbs (34 kg),
25.6” (650 mm) 125 lbs (56.7 kg)
MTA 26 - 47” 1.99” (51 mm) 14.5” (368 mm) 0-12˚ 15.75” (400 mm), 75 lbs (34 kg),
26.25” (667 mm) 125 lbs (56.7 kg)
LSA 37 - 63” 1.96” (50 mm) 17.5” (445 mm) – 19.9” (506 mm), 200 lbs (90.7 kg)
34.6” (879 mm)
LTA 37 - 63” 1.99” (51 mm) 17.5” (445 mm) 0-12˚ 19.9” (506 mm), 200 lbs (90.7 kg)
35.35” (895 mm)
