Mud Mount Kits for the TPS-6X-DSW Crestron MMK/WMKM-6X-DSW
Setup
Supplied Hardware
The MMK-6X-DSW consists of three parts. These parts produce an assembly that
attaches to the BB-6X-DSW or PMK-6X-DSW. The WMKM-6X-DSW consists of
six parts, three of which make up the MMK-6X-DSW, as well as a mounting plate, a
set of mounting screws and a cutout template.
The mounting plate provides the necessary support for post-construction
applications. An overlay cutout template (4506370) is supplied which is similar to a
frame, the inner area of the frame is the shape of the required opening. Remove the
center of the frame in order to use the template, refer to the illustration on page 4.
Supplied Hardware for the MMK-6X-DSW and WMKM-6X-DSW
DESCRIPTION PART NUMBER QUANTITY
Metal, Plate, Mud Ring 2022809 1
Metal Plate, Adjustment 2017631 2
Hardware, Metal, Push-On 2004121 4
Metal, Plate, Mounting
(WMKM-6X-DSW only) 2022811 1
Screw, #06-32 x 1 1/2”, Pan, Phil
(WMKM-6X-DSW only) 2007254 4
Overlay, Template, Wall Cutout
(WMKM-6X-DSW only) 4506370 1
The dimensions of the MMK-6X-DSW and WMKM-6X-DSW are shown below and
on the next page.

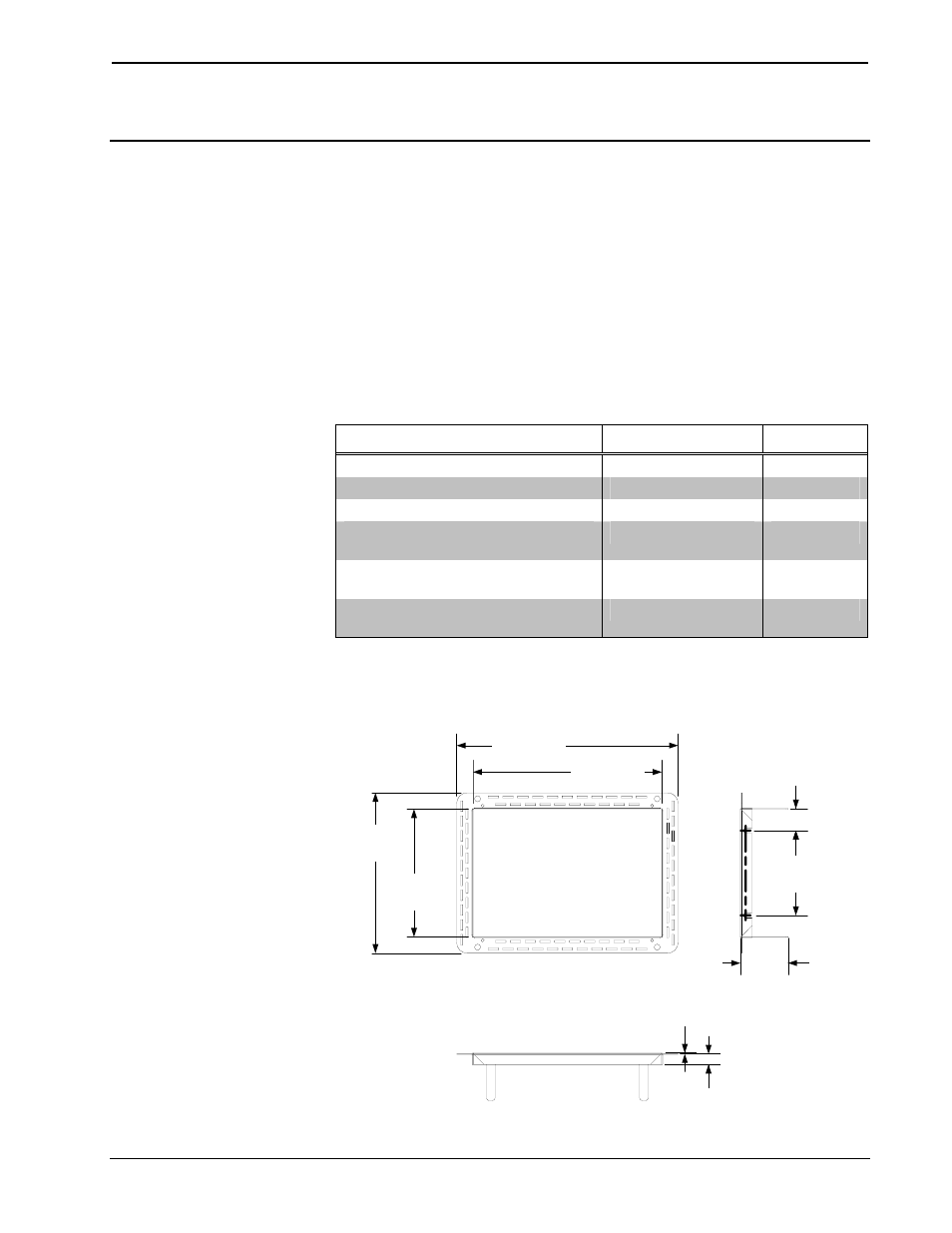

Dimensional Drawing – Mud Ring Plate
6.03 in
(15.31 cm)
7.57 in
(19.22 cm)
10.46 in
(26.57 cm)
8.92 in
(22.66 cm)
1.03 in
(2.63 cm)
2.26 in
(5.73 cm)
4.00 in
(10.16 cm)
0.50 in
(1.27 cm)
0.05 in
(0.13 cm)
2
