Mud Mount Kits for the TPS-6X-DSW Crestron MMK/WMKM-6X-DSW

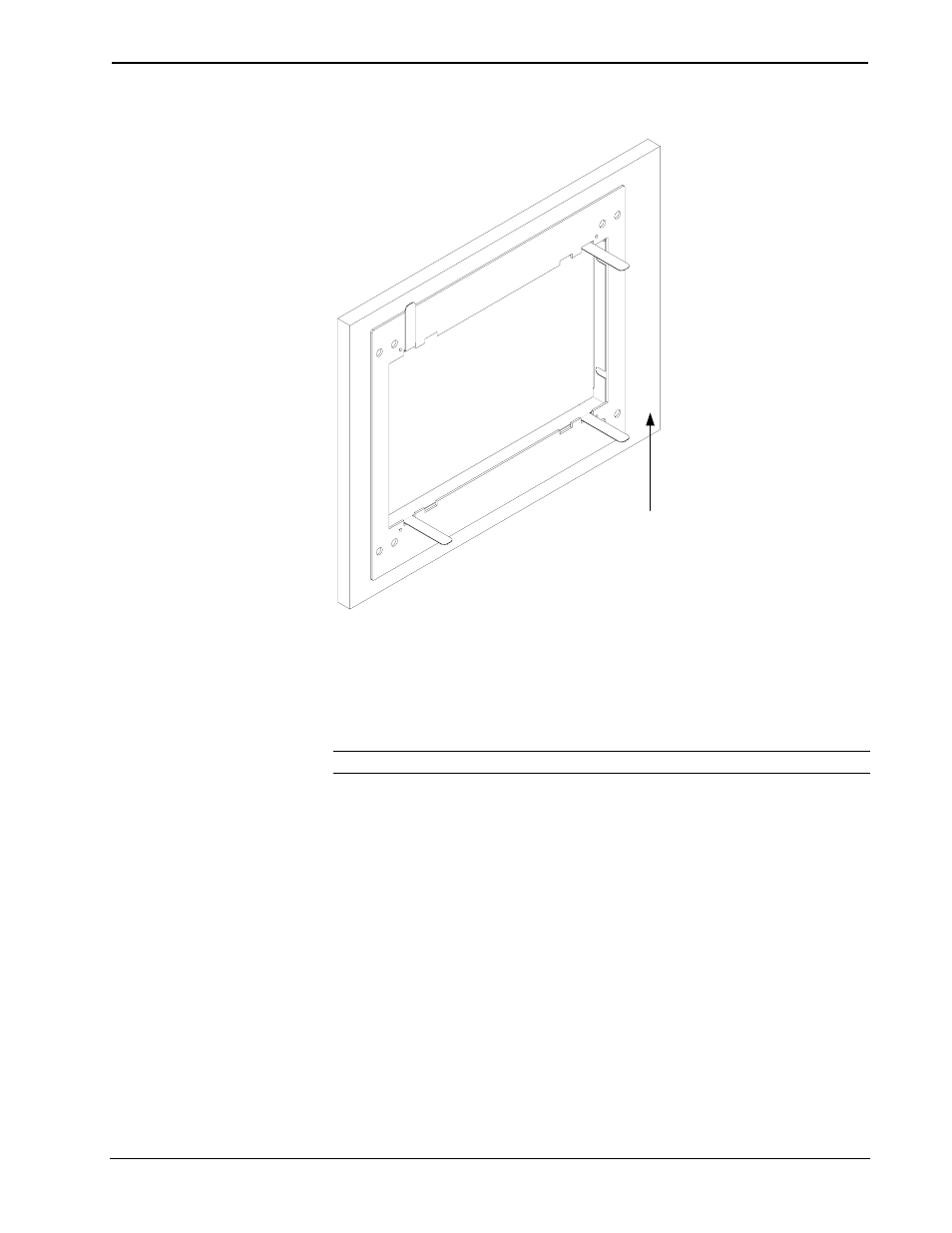

Bend Flanges – 1 of 4 Flanges Bent
BACK OF DRYWALL
10. Use four standard drywall screws (length should not exceed drywall
thickness by more than 1/2 inch) to secure the mud ring plate to the
adjustment/mounting plate assembly. The screws are secured in the
extruded holes of the adjustment plate and pass through the clearance
holes in the mounting plate.
11. Verify that the plate is level before tightening.
NOTE: Do not over tighten screws. Doing so may damage the plate.
12. Use a #2 Phillips screwdriver and tighten the drywall screws by hand
so that they slightly dimple into the holes in the mud ring plate.
13. Run the necessary cables for the TPS-6X-DSW and secure them behind
the drywall.
14. Apply drywall joint compound as needed to finish the cutout. Avoid
covering the four tapped mounting holes.
15. When the joint compound is dry, the wall mount docking station can be
installed using the four tapped holes in the mounting plate. Refer to the
latest revision of the TPS-6X-DSW Operations and Installation Guide
(Doc. 6708) for details. Refer also to the comprehensive illustration on
the following page.
