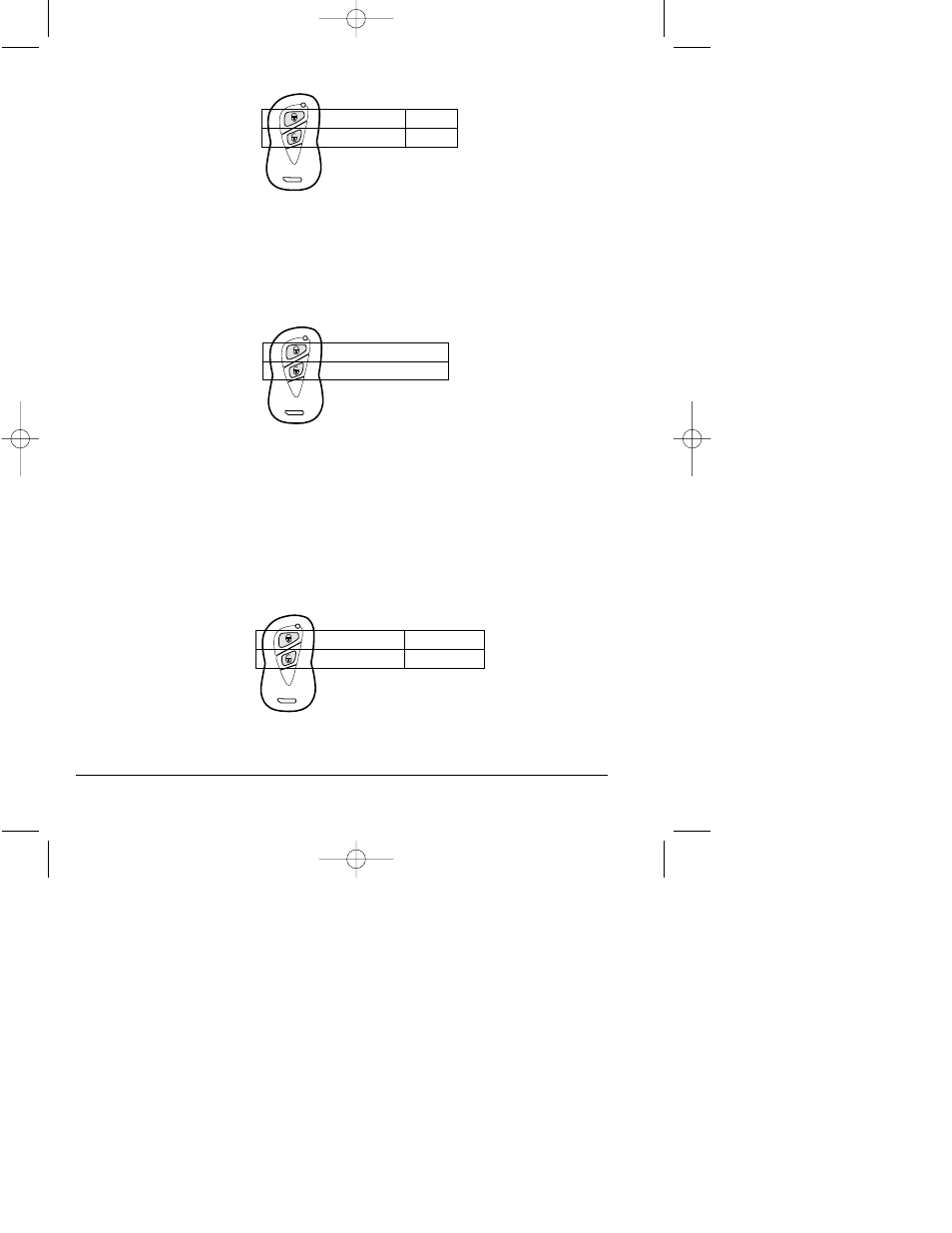

This diagram illustrates how the Remote Transmitter is used in the Convenience Mode:
Standard Mode
This configuration allows the use of separate buttons for control of the door locking system and
the Auxiliary function.
Button 1 Locks and Unlocks the system and controls the optional Starter Defeat.
Button 2 controls the system’s Auxiliary Function.
This diagram illustrates how the Remote Transmitter is used in the Standard Mode:
Driver Door Priority Mode*
This configuration adds the security of unlocking only the driver’s door when the system is
Unlocked. Pressing the Unlock button again will unlock all remaining doors.
Button 1 Locks the system.
Button 2 Unlocks the system and at the same time activates Auxiliary Function 1 (which unlocks
the driver’s door).
If the system is Locked, pressing Button 2 will Unlock the driver’s door only.
If the system is Unlocked, pressing Button 2 again within 15 seconds will unlock all remaining doors.
This diagram illustrates how the Remote Transmitter is used in the Driver Door Priority Mode:
*Extra parts and/or labor may be required to properly utilize this mode. See your Dealer for details.
Unlock All
LOCK
UNLOCK* BUTTON 1
BUTTON 2
*Unlocking the system will unlock only the Driver's Door
LOCK/UNLOCK
AUX
BUTTON 1
BUTTON 2
AUX
LOCK
UNLOCK BUTTON 1
BUTTON 2
