DMX512 CONTROL CHANNEL FUNCTIONS
CHAMELEON has 2 channels and uses DMX 512 control protocol. They are listed in the following
table.
CHANNEL DMX 512 VALUE DESCRIPTION
0 - 16 Black-out
17 - 33 Strobe
34 - 50 White
51 - 67 Cyan
68 - 84 Yellow
85 - 101 Green
102 - 118 Purple
119 - 135 Orange
136 - 152 Red
153 - 169 Pink
170 - 179 Blue
1
COLOUR
180 - 255 Colour wheel rotates in clockwise or anti-clockwise
direction from slow to fast
2 DIMMER 0 - 255 Lamp brightness adjust from dark to bright

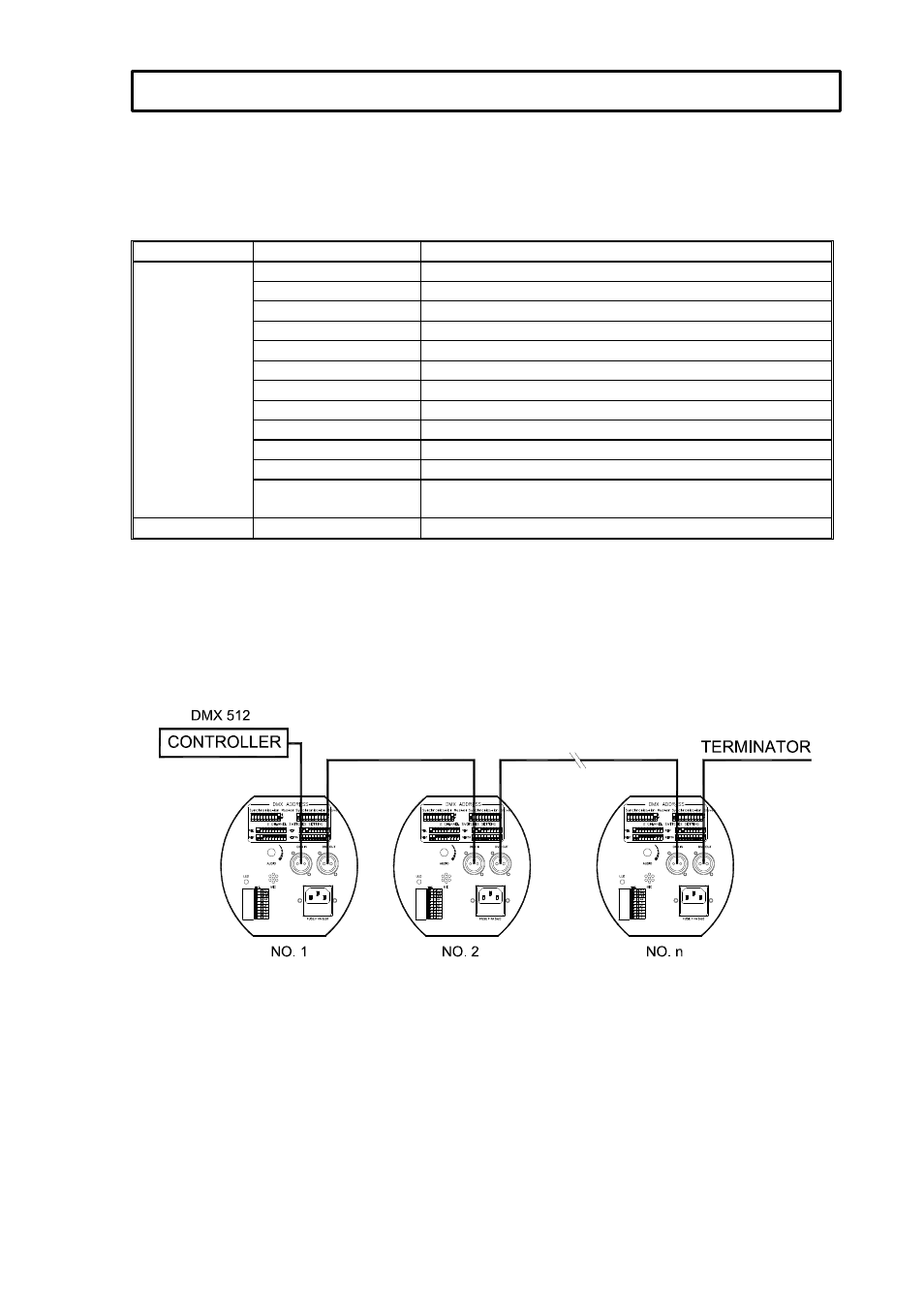

CONTROLLER AND PROJECTOR CONNECTION
Connect the controller’ s output to the first projector’ s input, and connect the first projector’ s output to
the second projector’ s input. The rest may be deduced by analogy. Eventually connect the last
fixture’ s output to a DMX terminator as shown in the figure below.
The red LED blinking means the projector is receiving DMX 512 signal normally.
CONTROLLER MODE – DMX OPERATION
