Three view drawing – O.S. Engines Sirius7 FR7-420 User Manual
Page 18
34
Dimensions (mm)

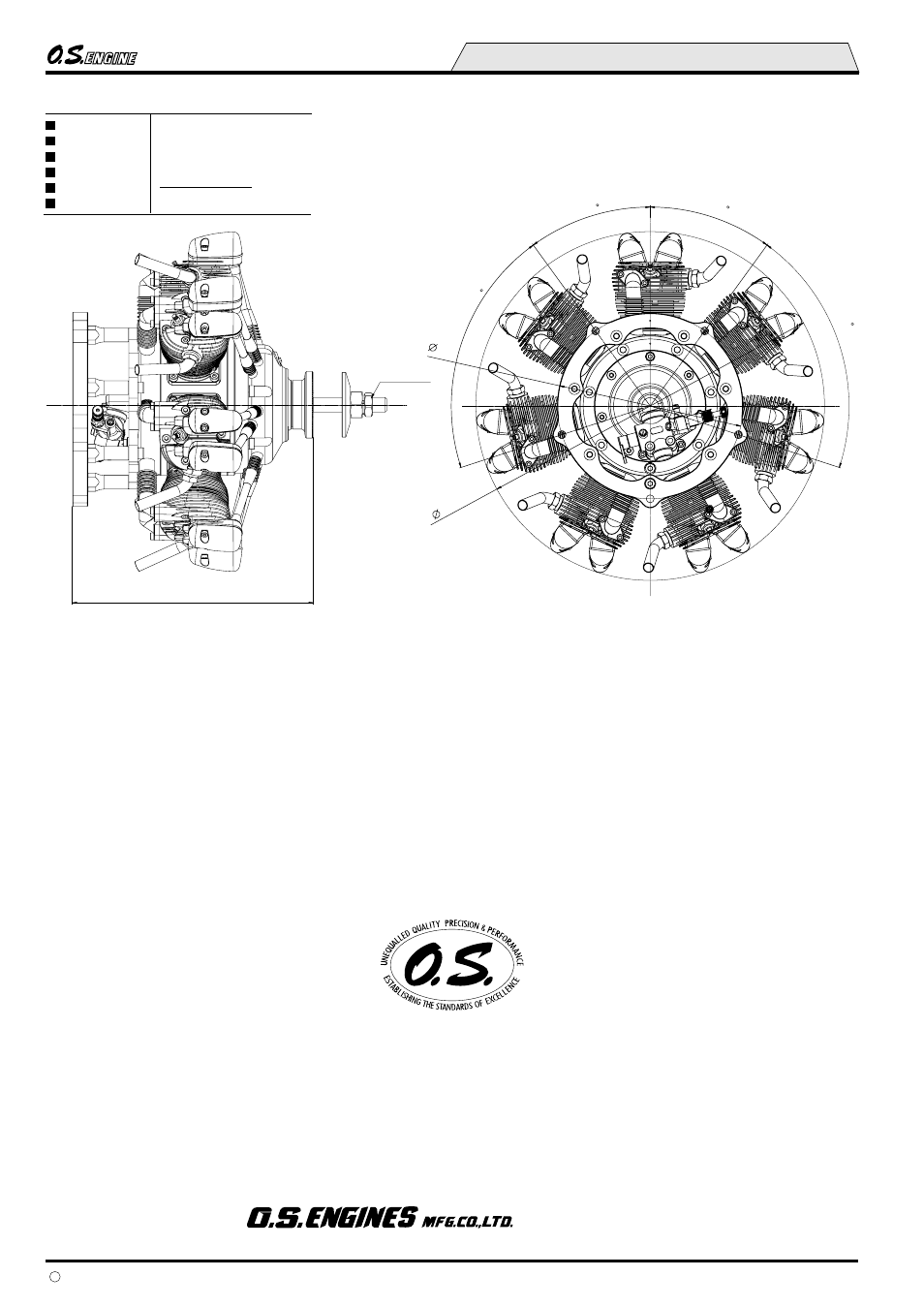

THREE VIEW DRAWING
Specifications
Displacement
Bore
Stroke
PracticalR.P.M.
Output
Weight
158.5
122
36
36
72
230
72
UNF3/8-24
9.95 cc x 7 / 0.607 cu.in. x 7
24.0 mm / 0.945 in.
22.0 mm / 0.866 in.
1,500-7,000r.p.m.
3,167 g / 111.71 oz.
C
Copyright 2010 by O.S.Engines Mfg. Co., Ltd. All rights reserved. Printed in Japan.
60092360 081002
TEL. (06) 6702-0225
FAX. (06) 6704-2722
6-15 3-Chome Imagawa Higashisumiyoshi-ku
Osaka 546-0003, Japan
URL : http://www.os-engines.co.jp
