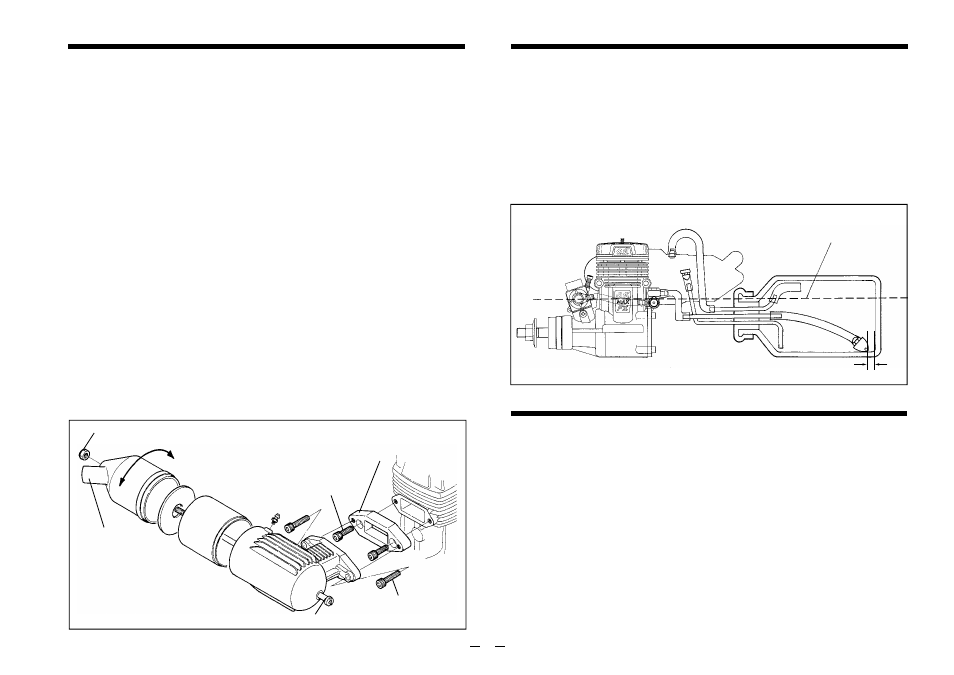

INSTALLATION OF SILENCER(MUFFLER)
To fit the standard silencer
M5x15
M5x20
Fix the exhaust adaptor plate to the engine with the two M5
x15 Allen screws supplied. 1.
Now fit the silencer to the exhaust adaptor with M5x20
Allen screws, also provided. 2.
In order to prevent the leakage of exhaust oil from
between the engine and adaptor, and between the
adaptor and silencer, apply a suitable silicone sealant to
the joint faces during assembly.
NOTE:
The angled exhaust outlet is agjustable and can be rotated to
any desired position in the following manner.
Loosen locknut and assembly screw.
Set the exhaust outlet at the required angle by rotating the
rear part of the silencer.
Re-tighten the assembly screw, followed by the locknut.
1.
2.
3.
Lock nut
Exhaust Outlet
Turn to required position
Exhaust adaptor
Assembly screw
For installation in the model a 450-550cc tank is Suggested.
These will allow 10-12 minute flights.
Locate the fuel tank so that the top of the tank is 5-10mm
(1/4-3/8") above the level of the needle-valve.
Be sure to use a pressurized fuel system by connecting the
muffler pressure nipple to the vent-pipe of the fuel tank.
FUEL TANK LOCATION
Attention to tank height
•
FUel level
10mm
GLOWPLUGS
Since the compatibility of glowplug and fuel may have a
marked effect on performance and reliability, it would be
worthwhile to try different heat range glowplugs.
Recommended O.S. plugs are Nos. 8, A5 and A3.
Carefully install the plug finger-tight, before final tightening
with the correct size plug wrench.
