O.S. Engines 140RX-FI - Manual (Page 10)

Lo Mi Hi
Lo Mi Hi
TML
TMH
1 2 3 4 5 6 7 8 9
TmD ATL
This adjustment mechanism allows
adjustment of a single trim point using the
slow position as the origin. Adjustment
uses the injection trim adjustment dial
(spare channel dial) on the transmitter.
There is no change at Lo (slow position)
while the trim volume reaches a maximum
at Hi.
TmC
TmD Fine
TMM
Injection trim can be adjusted independently
for three points (TmL, TmM and TmH) as
shown in the graph. Mi (intermediate slow
TmM) and Hi (full high TmH) are adjusted
with the injection trim adjustment dial (spare
channel dial) on the transmitter. Lo (full slow
TmL) is adjusted on the TRL menu displayed
following the function menu.
Lo Mi Hi
1 2 3 4 5 6 7 8 9
TRL +0%
This refers to the idle injection volume
adjustment trim, and the initial value
±
0%
is displayed. Pressing the data (+) key
increases the injection volume, while
pressing the data (-) key decreases
injection volume. The flow slow injection
adjustment volume is displayed as
±
the
adjustment volume.
Bat OO V
This displays the battery voltage. "Low Battery" is displayed when the
battery voltage decreases to 3.8 V.
Lmt Low
This is used to set the control range of fuel injection time.

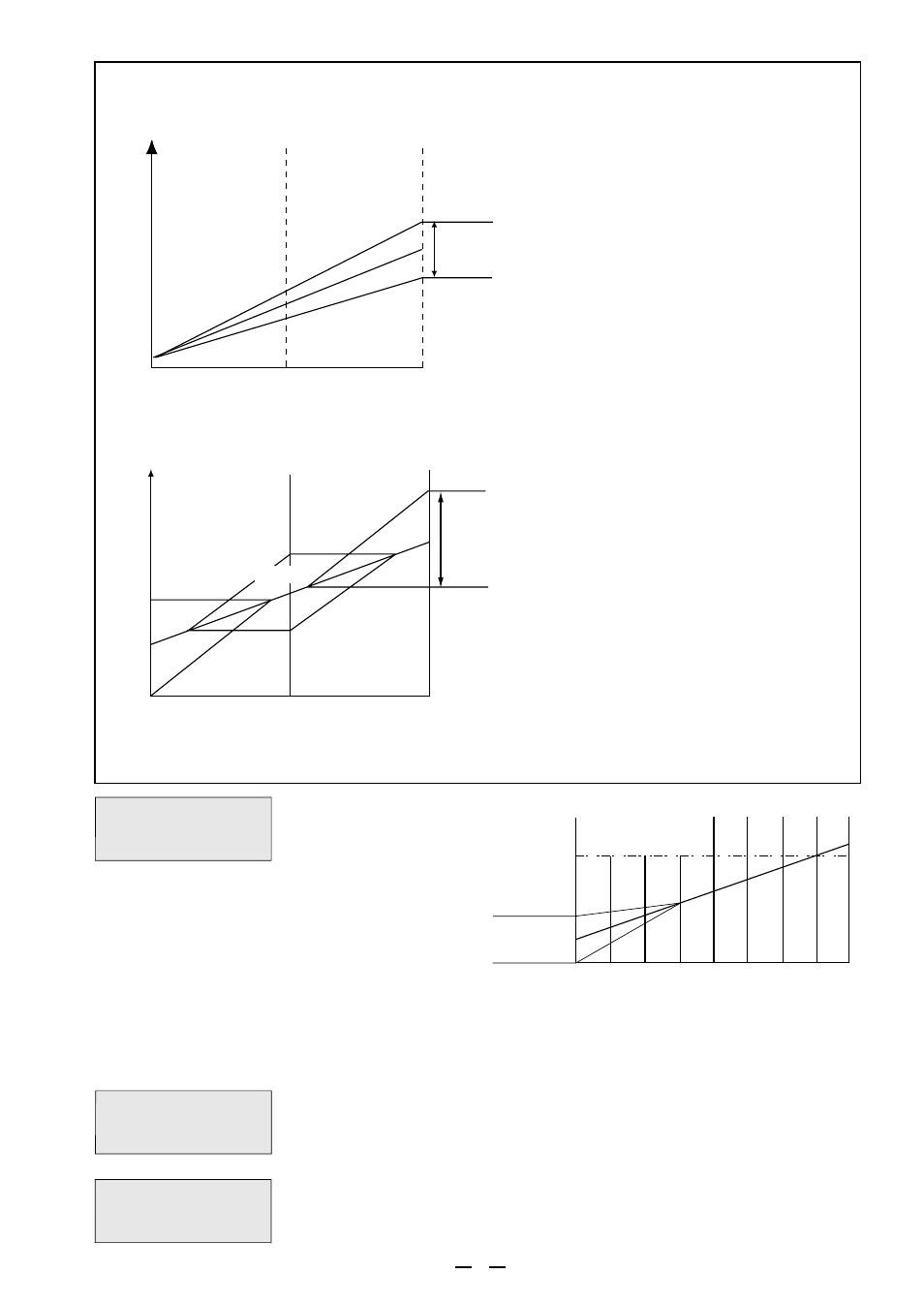

Explanation of TmD ATL and TmD Fine
Fuel injection volume
(Throttle stick position)
Fuel injection volume
(Throttle stick position)
Actual variation
range:
±
30%
Fuel injection
volume
(Throttle stick position)
9
