SPECIFICATIONS
Dimensions(mm)

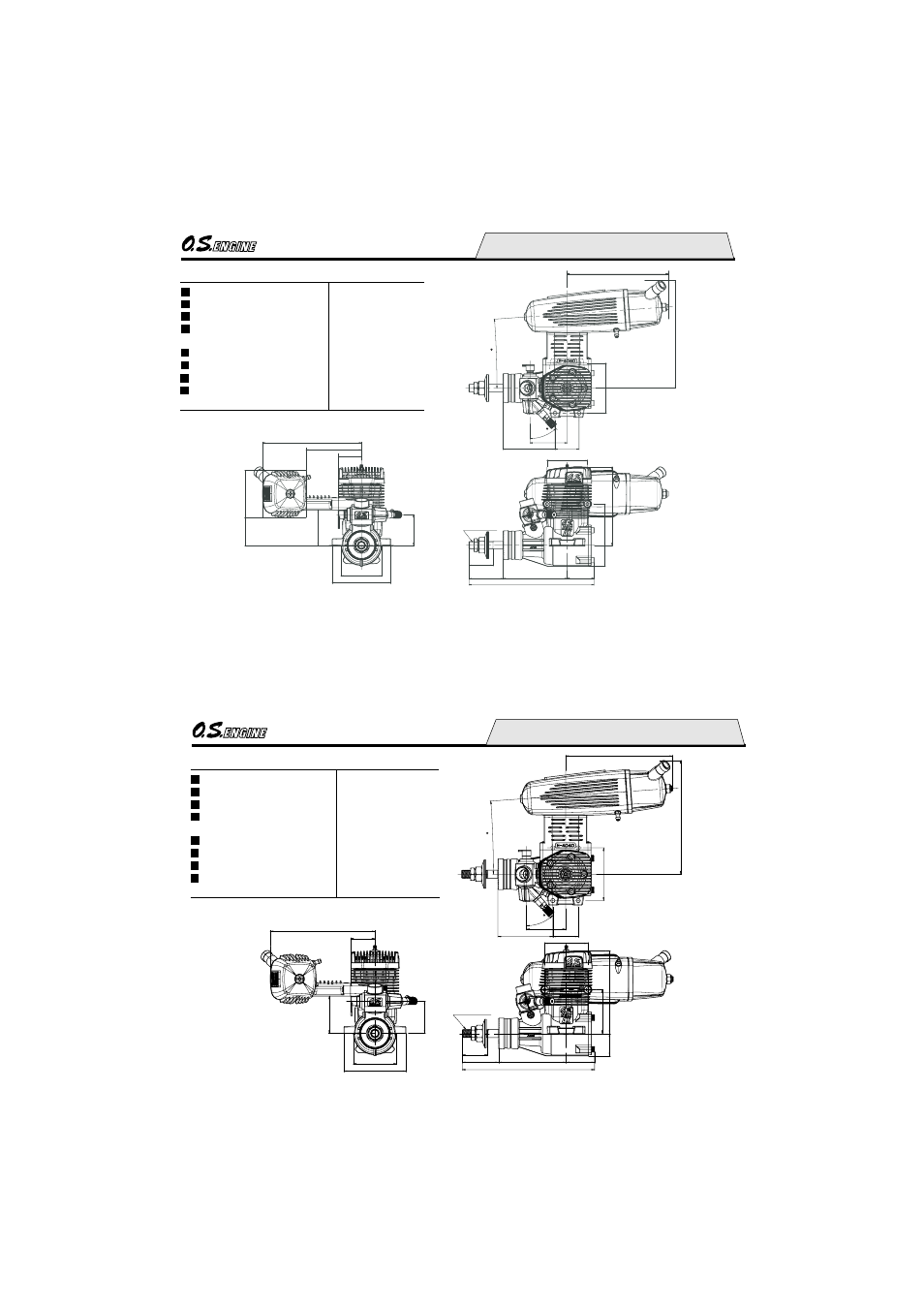

75AX THREE VIEW DRAWING
(E-4040 Silencer)
12.29 cc / 0.75 cu.in.
25.8 mm / 1.016 in.
23.5 mm / 0.925 in.
1.5 hp / 10,000 r.p.m.
2,000-11,000 r.p.m.
2.4 hp / 15,000 r.p.m.
2,000-16,000 r.p.m.
578 g / 20.39 oz.
178 g / 6.28 oz.
105.4
11
2
UNF5/16-24
48.8
130.2
25
66.6
27.9
43
25
22
81.5
4
42.6
61
36.8
24
31.7
42.5
103
29.1
52
38.5
54.1
42
35.7
57.7
49
Displacement
Bore
Stroke
Power output at
recommended R.P.M. range
Recommended R.P.M. range
Power output
Practical R.P.M.
Weight
SPECIFICATIONS
Dimensions(mm)
95AX THREE VIEW DRAWING
(E-4040 Silencer)
15.55 cc / 0.949 cu.in.
27.7 mm / 1.091 in.
25.8 mm / 1.016 in.
1.9 hp / 10,000 r.p.m.
2,000-11,000 r.p.m.
2.9 hp / 15,000 r.p.m.
2,000-16,000 r.p.m.
567 g / 20.0 oz.
178 g / 6.28 oz
42.6
61
36.8
24
31.7
103
42
UNF5/16-24
130.2
25
66.6
27.9
43
22
81.3
35.7
105.4
112
25
4
42.5
52
38.5
54.1
