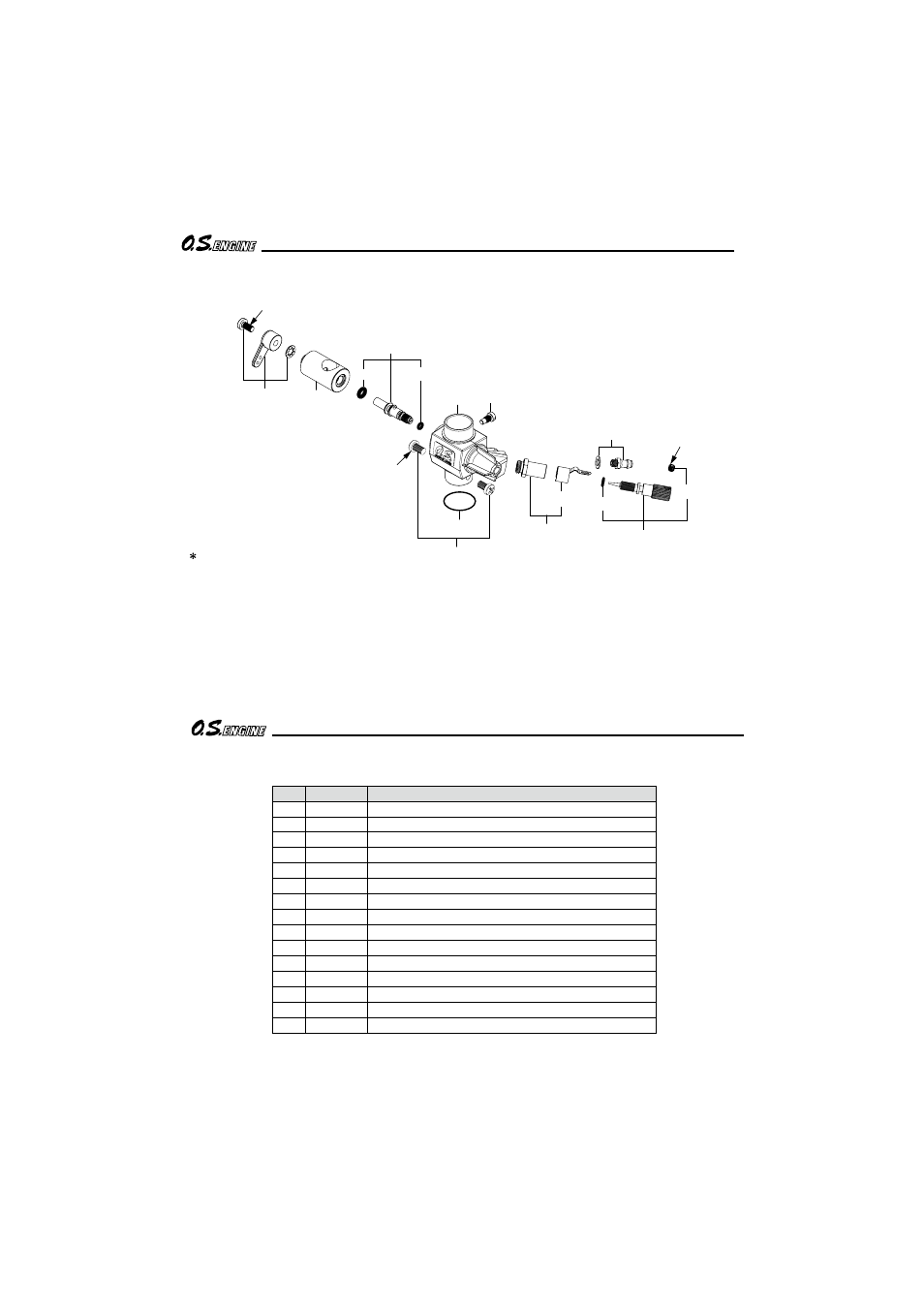

61A CARBURETOR EXPLODED VIEW
Type of screw
N...Round Head Screw S...Set Screw
1 2
4 5
7
S.M3X3
3
6
3-1 3-2
7-1
7-2
8
8-1
N.+M3x6
9
N.+M3.5x6
10
41
61A CARBURETOR PARTS LIST
Description Code No. No.
Specifications are subject to alteration for improvement without notice.
Throttle Lever Assembly
Carburetor Rotor
Mixture Control Valve Assembly
"O" Ring (L) (2pcs.)
"O" Ring (S) (2pcs.)
Carburetor Body
Roter Guide Screw
Fuel Inlet (No.1)
Needle Assembly
"O" Ring (2pcs.)
Set Screw
Needle-valve Holder Assembly
Ratchet Spring
Carburetor Rubber Gasket
Carburetor Retaining Screw 1
2
3
3-1
3-2
4
5
6
7
7-1
7-2
8
8-1
9
10
27881400
27482200
25781600
46066319
22781800
27482100
45581820
22681953
24081970
24981837
26381501
27381940
26711305
46215000
25081700
