11
1 Open 1 0.1m
4 Open 1 10. m
2 Open 1 0 0. m
3 Open 1 10. m
5 Open 1 0.1m
6 Open 1 0.1m
Test result 4: RJ11(TEL) cable length test
And then press “UP” or “DOWN” key, the following interface will further be shown:
It indicates that length of telephone cable is 10.1m
.
Only one end of cable connect
with main tester, the other end needs no connection, so it show "Open" in the
pictureAt this time,press “ENTER” to return to the main menu,and then press
“ENTER” key for re-test..
If to insert one end of the cable to be tested into “ ” port of the
main tester, the other end is an open circuit, and then select length test, and
then press “ENTER” key to perform length test with the equipment, the
following interface will be shown:
telephone RJ11
12

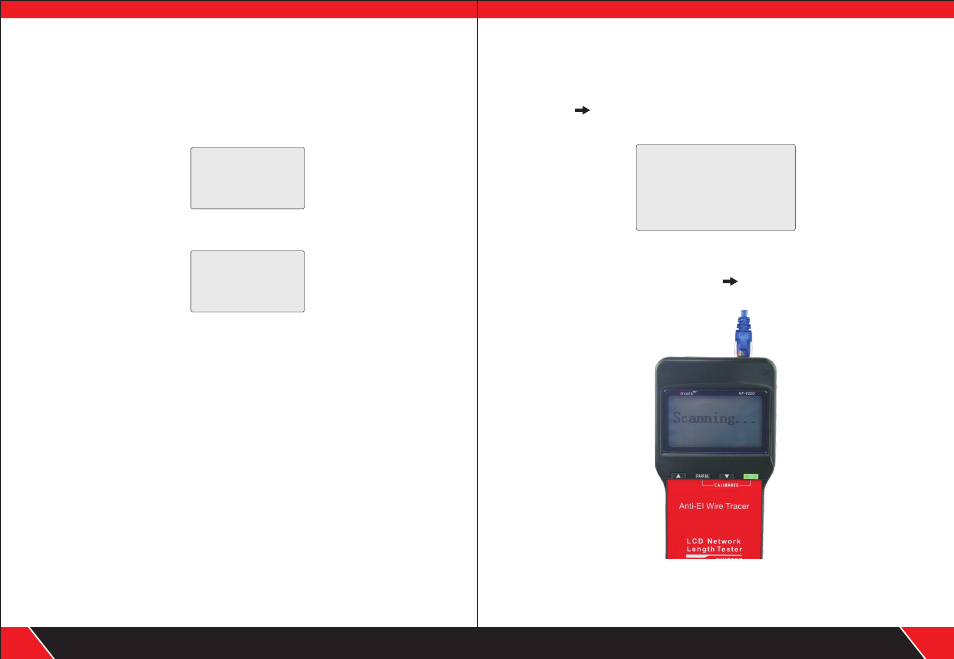

Scanning ...
c. Cable tracing test:
After powering on the main tester and entering
then press “UP”,“DOWN” key
to move “ ” cursor to cable scan, and then press“ENTER” key to find the
line.The following interface will be shown:
“RJ45” port of the main tester，
press“ENTER” key，entering main test menu，
Connect the cable to be found with the corresponding RJ45(Scan) port
, (RJ11). Take network line finding as an example: connect the network
cable to be found with RJ45 port, move “ ” cursor to cable scan, and press
“ENTER” key to perform line finding test as shown inthe figure below:
of the
emitter
