3 Typical UC4.5 Height Control System

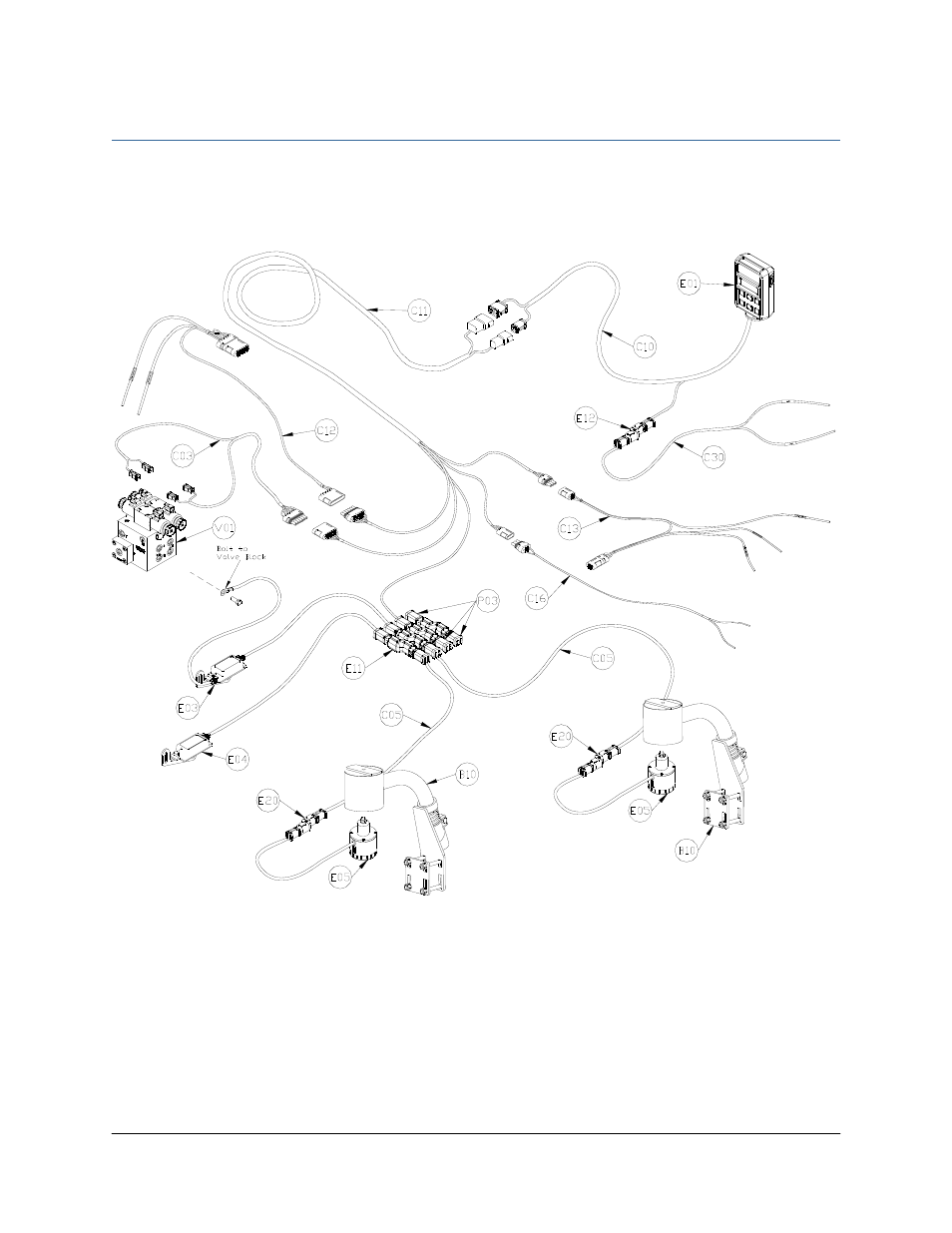

Figure 4 depicts a typical UC4.5 Height Control System. The various cables are listed in this
ordering guide. To choose the most suitable cables, refer to the UC4.5 installation manual, the
sprayer’s valve connections and the electrical wiring system.
Figure 4: Typical UC4.5 System
