8
5 Roll Sensor Installation
All roll sensors must be part number 43741. If the previously installed roll sensors
are part number 43740, they must be replaced by 43741 before proceeding with
this installation.
1. Securely mount the roll sensor to the included roll sensor bracket using the #6 machine
screws. Tighten screws to 10 in-lbs (1.1 Nm).
2. The orientation of the mounted roll sensor to the roll sensor bracket will depend on the
bracket mounting. The roll sensor CAN-bus connector must be pointing towards the right
side of the sprayer (when looking from the rear of the sprayer).

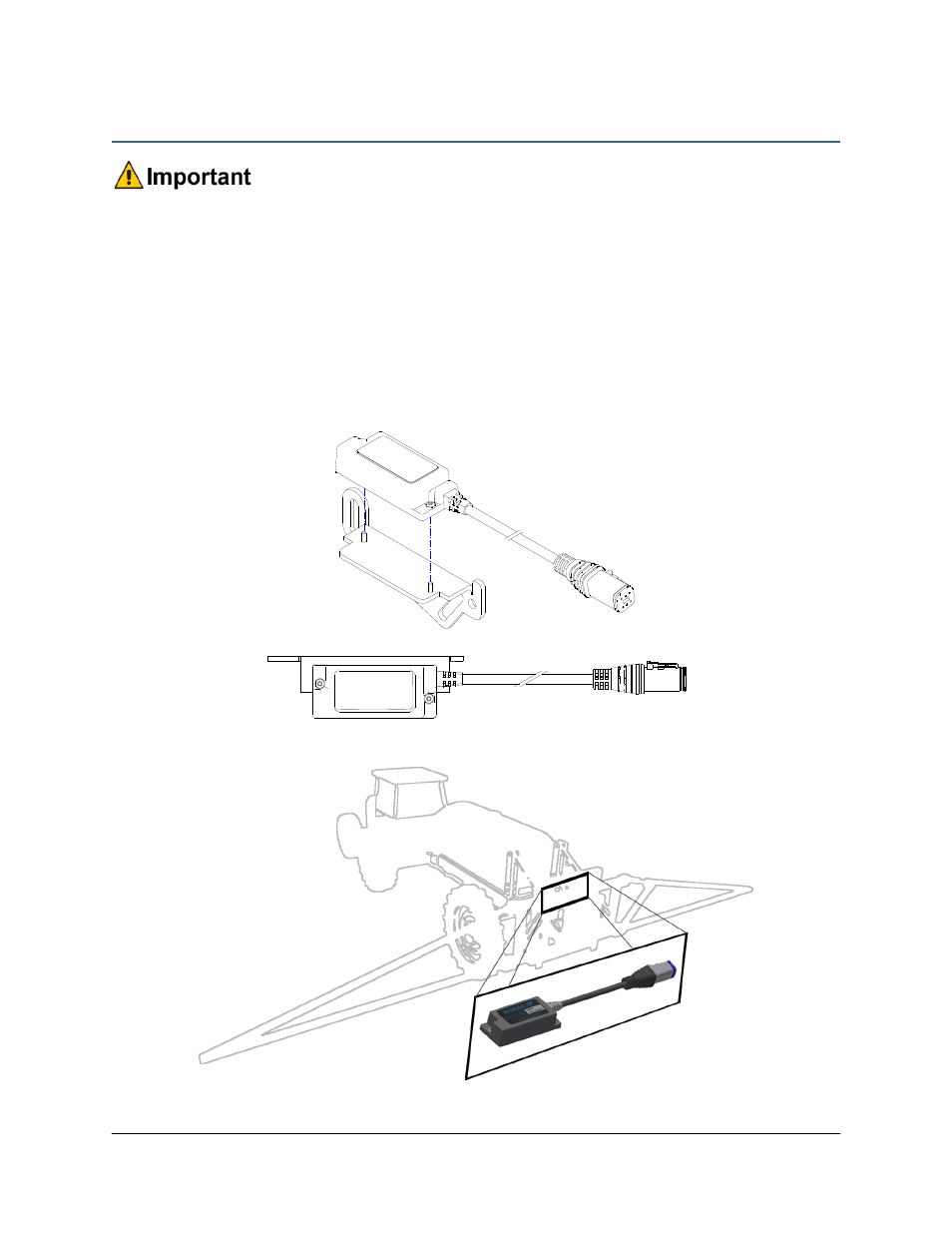

Figure 3: Mounting Roll Sensor to Bracket
Figure 4: Roll Sensor Orientation - Connector Facing Right Wing
