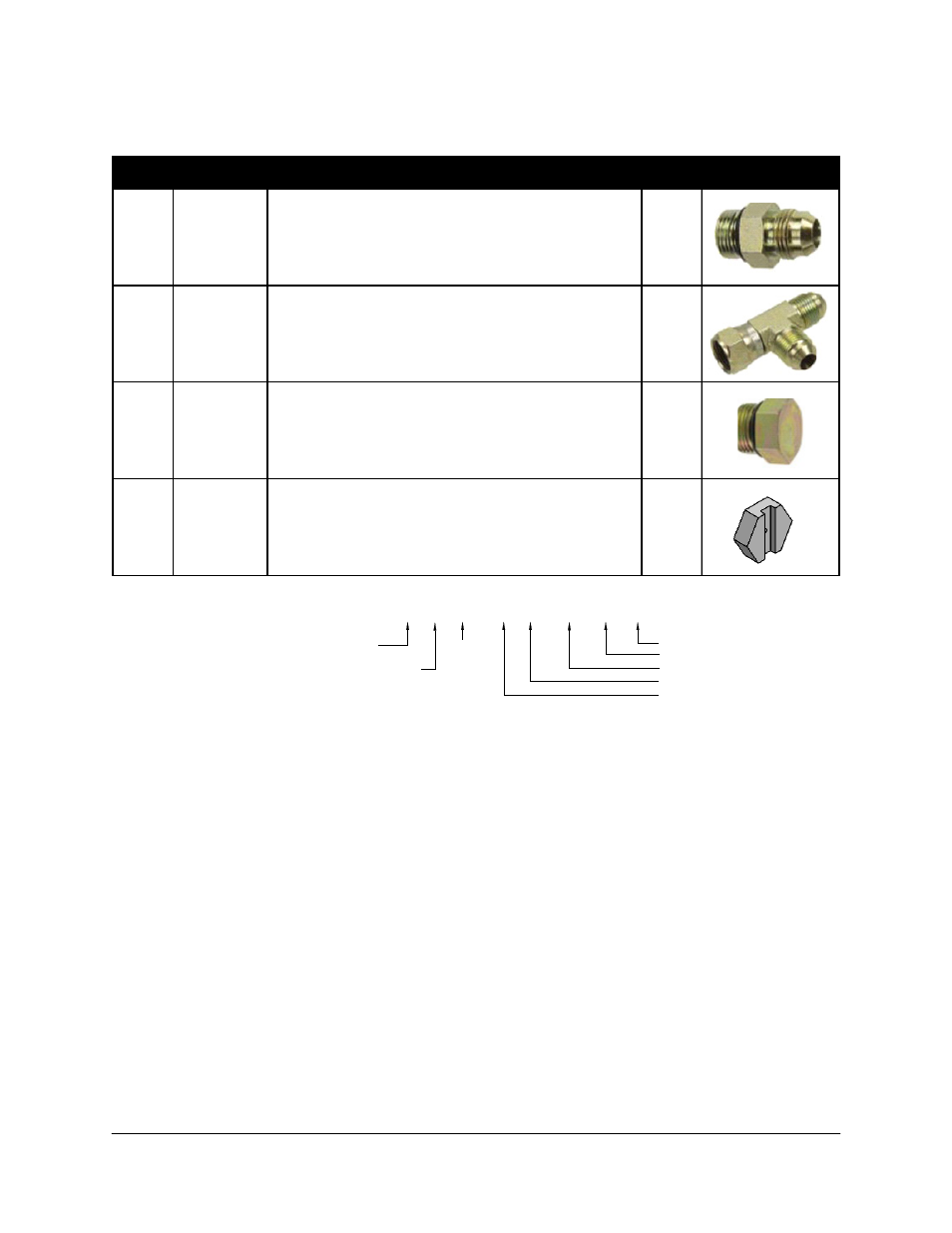

4.4 Hydraulic Fitting Kit Details (P/N: 44865-30)

Item

Part Number

Name

Quantity Picture

F02

103312

MALE ADAPTER - 6MB 6MJ

4

F03

103839

TEE ADAPTER - 6FJXR 6MJT

2

F04

104369

PLUG - 6MBP

2

F05

44928

ORIFICE INSERT .047 IN ONE WAY

2

6 M B - 6 M OR X 90

SIZE IN

1/16

TH'S

GENDER: MALE
OR FEMALE

90

°

ANGLE

SWIVEL
TYPE
GENDER
SIZE

TYPE:

B - ORB

J - JIC
OR - FLAT

FACE
P - PIPE

Fitting Name

Example:
