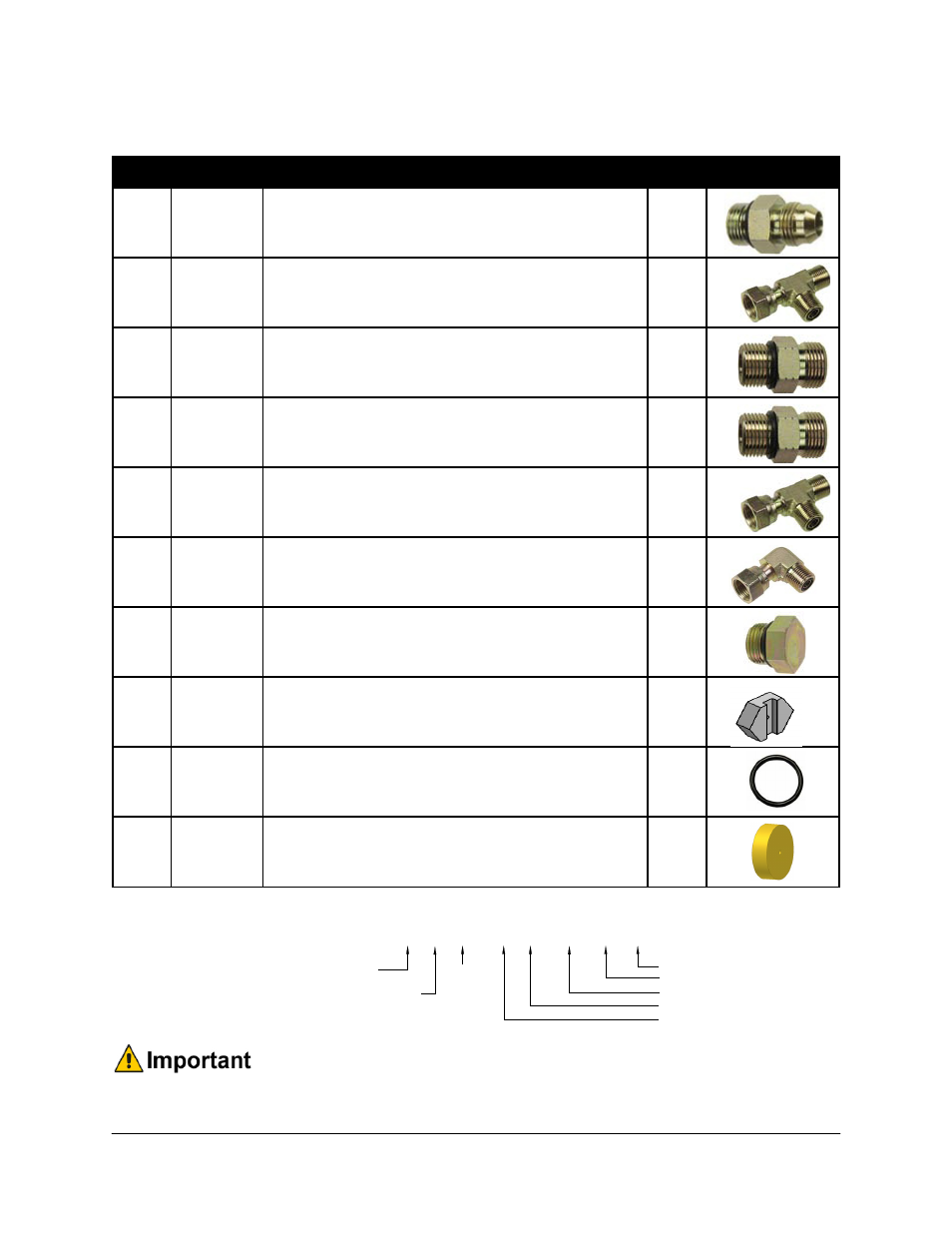

4.4 Hydraulic Fitting Kit Details (P/N: 44865-06)
Item Part Number Name Quantity Picture
F02 103312 MALE ADAPTER - 6MB 6MJ 2
F03 104586 TEE ADAPTER - 6FORXR 6MORT 4
F04 104886 MALE ADAPTER - 8MOR 8MB 2
F05 44917 MALE ADAPTER - 6MB-6MOR MACHINED ORB 8
F06 104885 TEE ADAPTER - 8FORXR 8MORT 2
F07 104590 90 DEG ADAPTER - 6MOR 6FORX90 4
F08 104369 PLUG - 6MBP 2
F09 44928 ONE WAY ORIFICE INSERT - 0.047 4
F10 104592 O-RING HYD 3.8 IN FLAT FACE 2
F11 105184 ORIFICE INLINE 6 FLAT FACE 2
6 M B - 6 M OR X 90
SIZE IN
1/16
TH'S
GENDER: MALE
OR FEMALE
90 ° ANGLE
SWIVEL
TYPE
GENDER
SIZE
TYPE:
B - ORB
J - JIC
OR - FLAT
FACE
P - PIPE
Fitting Name
Example:
Not all fittings are used for this installation.
