18
3. Install the plugs (F03) into the "A" ports
and tighten to 18 ft-lbs.

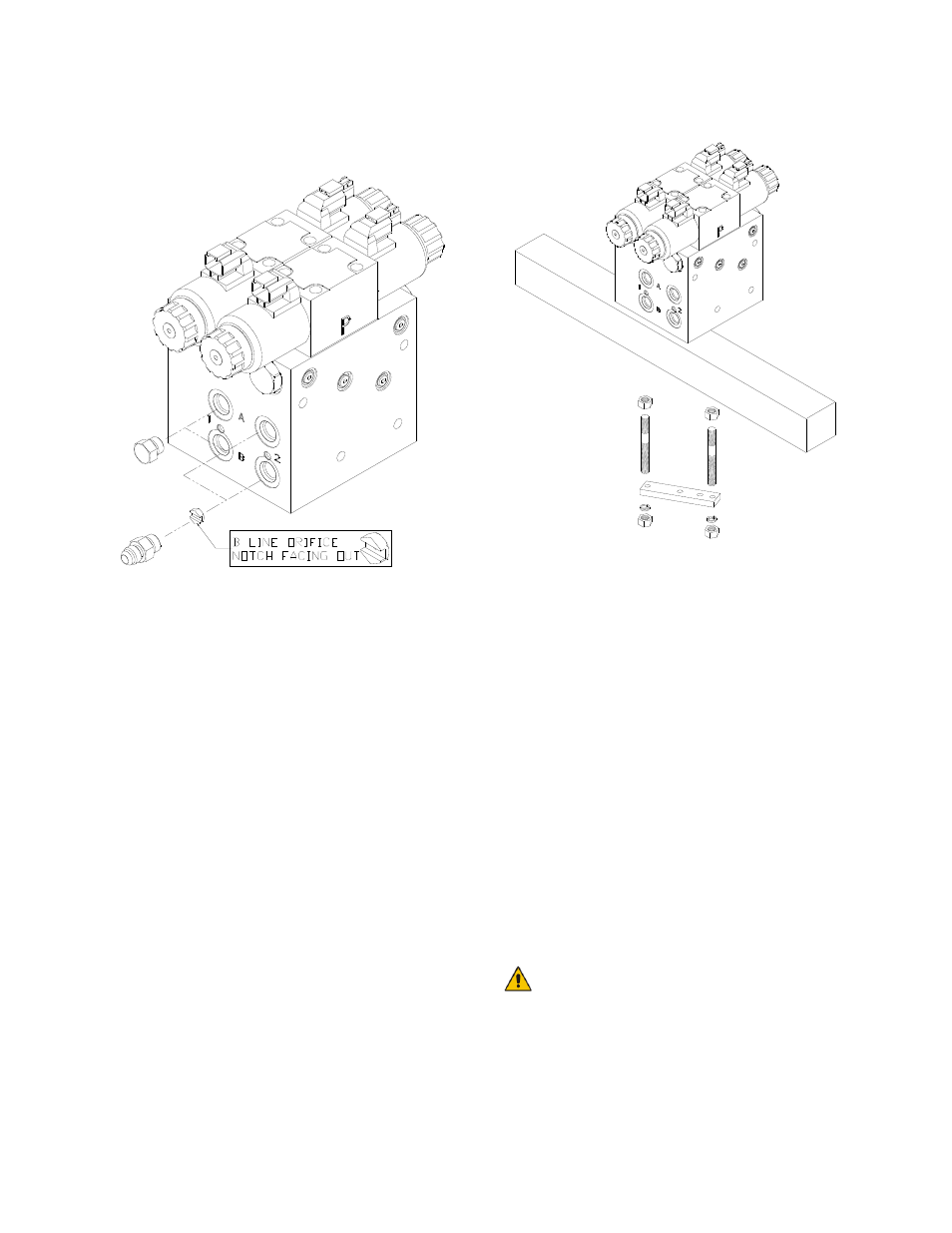

Figure 22: Single Acting Valve Block
4.6.2 Valve Mounting
Figure 23: Valve Mounting Location
1. Mount the NORAC valve (V01) on the
sprayer using the valve mounting
bracket (B10).
2. As shown in Figure 23, screw short
side of the threaded rods into the
bottom of the valve block at least 3/8".
The valve mounting holes are drilled and
tapped 3/8 NC-1" deep.
3. Tighten the Hex nuts to hold the rods.
4. Put the mounting bracket on the other
side of the tube and tighten with the
spring washers and the Hex nuts.
5. Cut excess off of the rods, if necessary.
If using bolts, the bolts should
thread into the valve block at
least 3/8". The valve mounting
holes are drilled and tapped 3/8
NC-1" deep. The rule of thumb
