7.2 Hydraulically Teed Installation

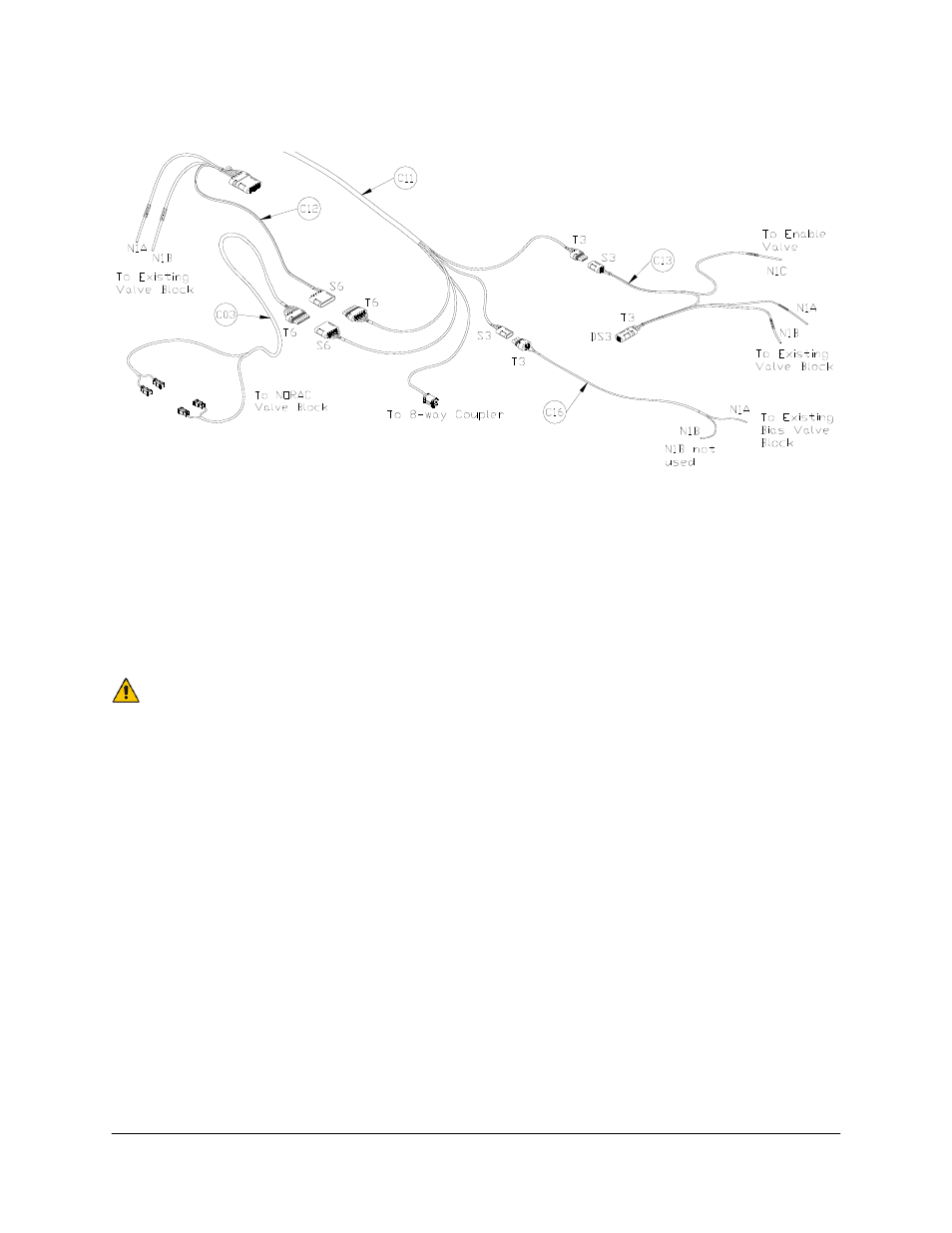

Figure 25: Cable Layout for Hydraulically Teed Installations
1. To interface with the sprayer’s main lift hydraulics, the valve interface cable (C12) shown in
Figure 25 can be used.
2. It may be necessary to connect to the Bypass valve. To do this use the bypass interface
cable (C13) as shown in Figure 25.
3. To control boom slant (roll), it will be necessary to use the roll cable (C16).
See UC4.5-BC-CABLE-GUIDE cable ordering guide for more information.
