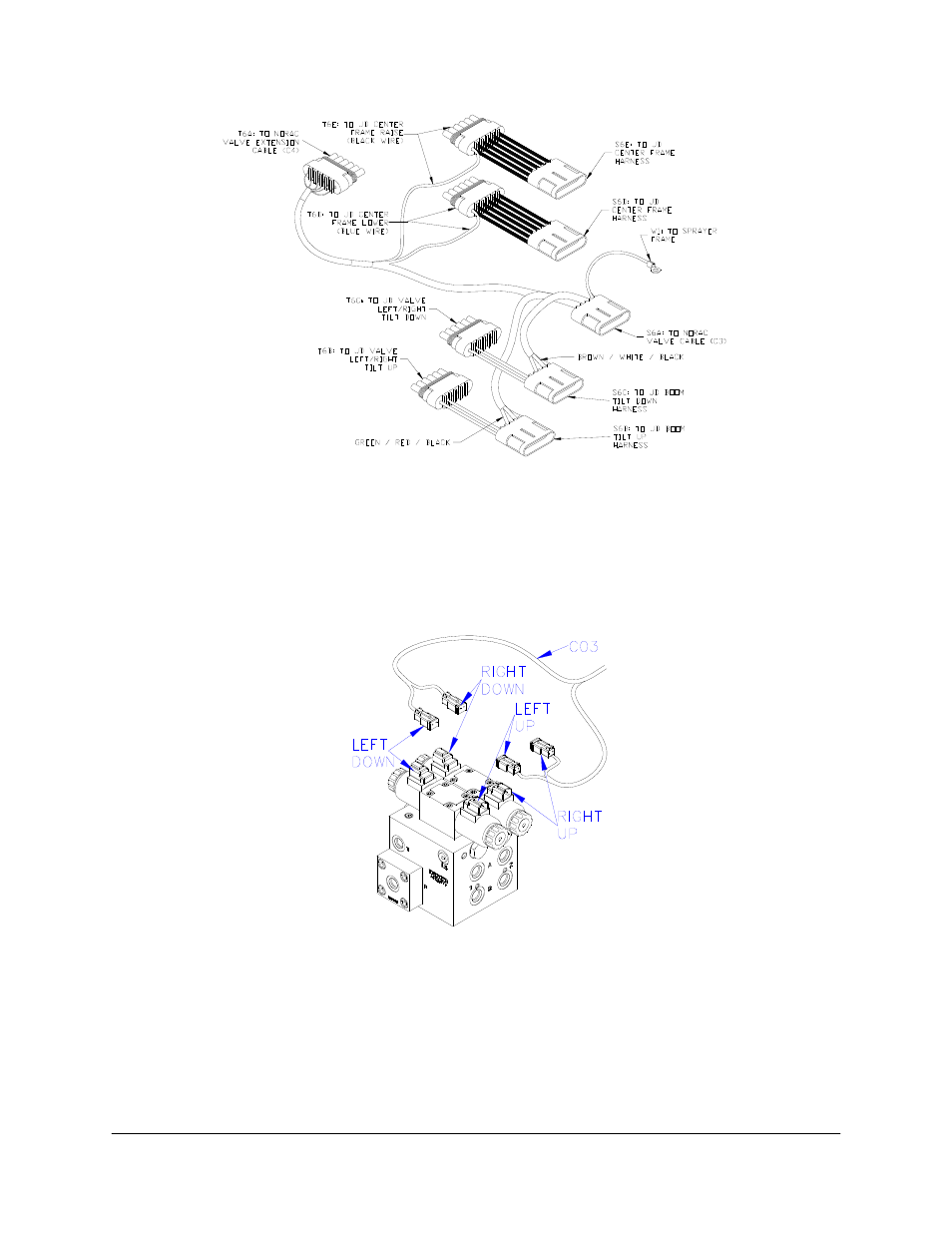

Figure 23: Junction Cable Connections (C12)
11. Connect the 2-pin connectors on C03 to the NORAC valve block, as shown in Figure 24.
12. The connectors on the valve cable (C03) are marked RIGHT UP, LEFT UP, RIGHT
DOWN and LEFT DOWN. Cables labeled with UP go on the same side as the
hydraulic hoses.
Figure 24: Valve Cable Connections
13. Fasten the 8-way coupler to the boom with cable ties. Connect C06 to the 8-way coupler.
14. Connect C06 to the 8-way coupler.
15. Connect both roll sensors to the 8-way coupler.
