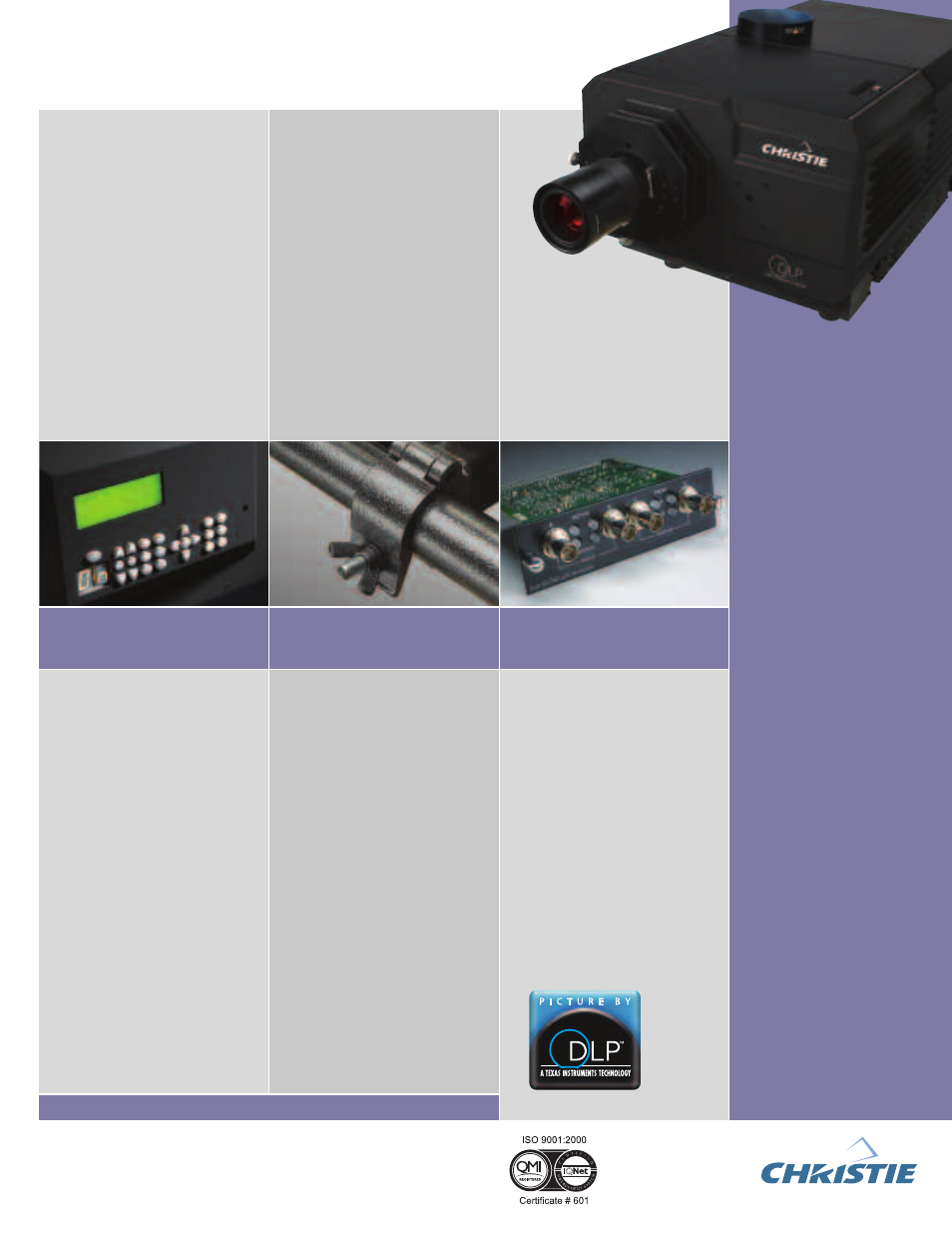

Christie Roadie 25K
Specifications
New 10-bit image processing and standard Dual
SD/HD-SDI input module provide a broader color
spectrum, wider signal compatibility. Single-button direct key access, auto
set-up and power-up put real control
at your fingertips.
DISPLAY TECHNOLOGY
AND RESOLUTION
• 3-chip 1.25" Darkchip3™ DMD™
• 2048 x 1080
BRIGHTNESS
• 8000 – 25,000 ANSI lumens (± 10%)
• 90% brightness uniformity across the
screen
CONTRAST RATIO
• High Brightness lens: 1600:1 on/off
• High Contrast lens: 1800:1 on/off
• ANSI Contrast, both lenses: 650:1
• High Contrast optional aperture: 2800:1
INPUT LINE VOLTAGE
• Ballast: 3-phase 200-230 VAC ± 10% @
50/60 Hz (max 24A per phase)
• 3-phase 380-415 VAC ± 10%
@ 50/60 Hz (max 12.5A per phase)
• Projection Head: Single-phase 200 VAC
to 240 VAC ± 10% @ 50/60 Hz
COLOR PROCESSING
• 10-bit digital processing
SCAN RATES
• Horizontal – 15 kHz to 120 kHz
• Vertical – 23.97 Hz to 150 Hz
EXTRACTION FAN
• 8"exhaust port located at the projection
head for extraction of hot air; extraction
fan is required (min 600 cfm at projector)
VIDEO DECODER
• Built-in multi-standard video decoder
(NTSC, NTSC4.43, PAL, PAL M, PAL N,
PAL 60, SECAM)
LAMP
• Xenon bubble lamp, field replaceable
• High brightness: CDXL60, CDXL45,
CDXL30 and CDXL20
• Standard lamps: CXL60, CXL45, CXL30
• Lamp life: 600 – 2400 hours (depending on
lamp model)
• Auto LampLOC™ – automatic, for
optimized brightness and uniformity
POWER SUPPLY
• Separate 7kW low-ripple switch mode
lamp ballast
INPUTS, CONTROL
& NETWORKING
• RGBHV/YPbPr: 5 BNC
• DVI-I: digital/analog RGB/YPbPr
• Dual SD/HD-SDI module
• One composite video, one S-Video
• 2 RS-232 ports and 3 RS-422 ports
• On-board ChristieNET™ connectivity
(RJ45)
• IR remote, built-in backlit keypad/
status display
LENS MOUNT
• Manual operation for focus, zoom
and horizontal and vertical offset
WEIGHT
• Projection head (approx): 260 lb (118.2 kg)
• Ballast (approx): 110 lb (50 kg)
• Optional FredFrame (approx): 105.4 lb
(47.9 kg) with Fork Lift Tubes and Castors
STANDARD ACCESSORIES
• IR keypad w/batteries
• Line cord
• Dual SD/HD-SDI module
• User manual
OPTIONAL ACCESSORIES
• Extraction Fan Kit (mandatory)
• High Brightness lenses: 1:1, 1.25-1.45:1,
1.45-1.8:1, 1.8-.2.4:1, 2.2-3.0:1, 3.0-4.3:1,
4.3-6.0:1, 5.5-8.5:1
• High Contrast lenses: 1.25:1.45:1,
1.45-1.8:1, 1.8-2.4:1, 2.2-3.0:1, 3.0-4.3:1,
4.3-6.0:1, 5.5-8.5:1
• Rigging frame
• 1.26X Anamorphic Lens
• Anamorphic lens mount
• ChristieTWIST™ Image Warping module
with enhanced edge-blending
• Dual SD/HD-SDI (additional module),
DVI and legacy interface modules
• Wired remote control
• Remote IR sensor
• Ethernet, RS-232 and RS-422 cables
• Service manual
• KoRE™ 10-bit librarian
• Stacking offset extractor duct
Offering extreme brightness, high
contrast and installation and application
flexibility – the Christie Roadie 25K
shines virtually anywhere you put it.
DIMENSIONS (W X L X H)
• Projection Head (approx): 25.6" x 49.0" x
20.5" (650mm x 1250mm x 520mm)
• Ballast (approx): 21.3" x 17.3" x 20.9"
(540mm x 440mm x 530mm)
• Optional rigging frame (approx):
33.5" x 54.9" x 25.7"
(851mm x 1395mm x 653mm)
REGULATORY APPROVALS
• UL/CSA/IEC 60950 (3rd edition)
• FCC Class A, CE, CCC (pending)
• This product conforms to all relevant
European directives, standards, safety,
health and environmental concerns
WARRANTY
• 2 years parts and labor (including
light engine)
Optional rigging frame – constructed of
2" aluminum tubing for strength.
For the most current specification information, please visit www.christiedigital.com
Copyright 2005 Christie Digital Systems, Inc. All rights reserved. All brand names and product names are trademarks,
registered trademarks or tradenames of their respective holders. Canadian manufacturing facility is ISO 9001:2000 certified.
The DLP™ logo and DLP™ Medallion are trademarks of Texas Instruments.
Performance specifications are typical. Due to constant research, specifications are subject to change without notice.
Printed in Canada. 2103
