FEATURES
•
LED indication: Located above the “WAH” and
“Distortion” switches. Indicate when pedal is in
wah or distortion mode. If pedal is powered by
battery, plugging a cord into the input jack will
turn on LED (when in wah or distortion mode). If
an adapter is used, the LED will function (when
in wah or distortion mode) until the adapter is
disconnected.
•
WAH On/Off Switch: This switch turns the
WAH effect “on” or “off”.
•
DISTORTION On/Off Switch: Turns the
distortion effect “on” or “off”.
• •
Electro-Optical: The amount of light from the
LED (Light Emitting Diode) that shines on the
LDR (Light Dependent Resistor) is controlled by
a shutter placed between the two devices. Our
unique electro-optical design ensures smooth
overall control of the WAH without unwanted
noise typical with potentiometer (pot) controlled
pedals.
•
DRIVE control: Adjusts the amount of
distortion. Has no affect on Wah mode.
•
TONE control: Colors distortion. Also has no
affect on Wah.
•
LEVEL control: Adjust the amount of distortion
output from the pedal without affecting the Wah.

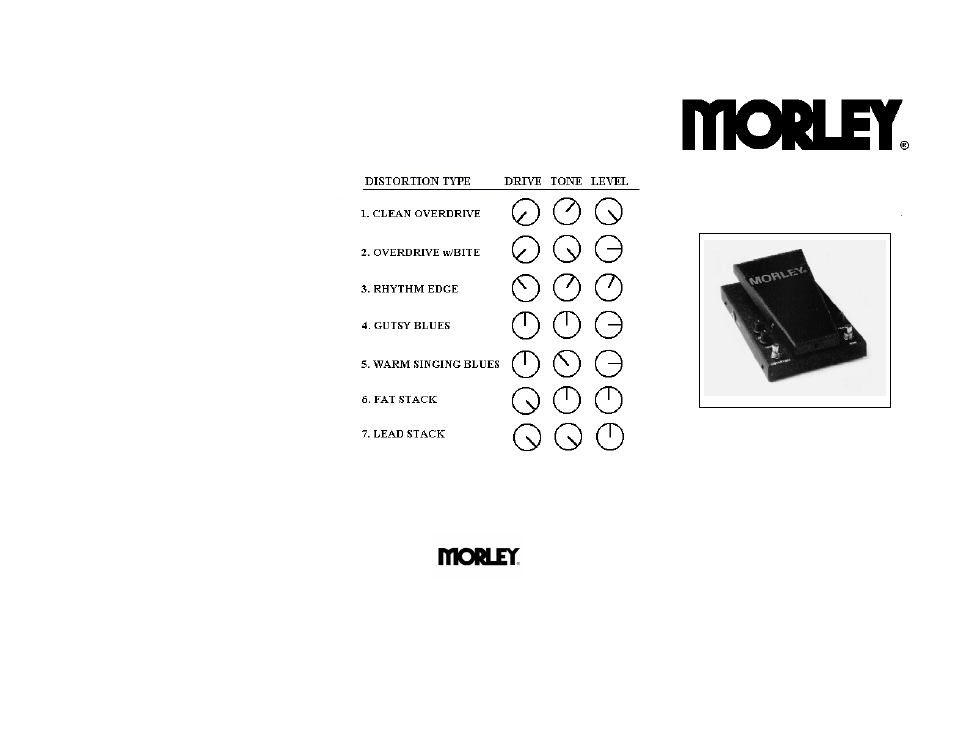

Try the following settings to get started...........
