Moniteur Companion VPT User Manual

Moniteur, Companion vpt

Parts Listing

Item

Qty

Description

Switch-Actuator Target Bracket

Main Mounting Bracket

Switch Mounting Bracket

5/16-18 x 3/4” Hex Head Cap Screw

5/16” Split Lock Washer

5/16” Flat Washer (0.75” OD)

M5 Hex Head Screw

M5 Hex Nut

M5 Lock Washer

M5 Flat Washer

5/8” Split Lock Washer

5/8-18 Jam Nut (supplied w/Companion)

5/16-18 Hex Nut (supplied w/Companion)

5/16” Split Lock Washer (supplied w/Companon)

Form IO-LCS-0909

M O N I T E U R D E V I C E S I N C O R P O R A T E D

3 6 C o m m e rc e R o a d , C e d a r G ro v e , N J 0 7 0 0 9 Te l . ( 9 7 3 ) 8 5 7 - 1 6 0 0 F a x ( 9 7 3 ) 8 5 7 - 7 2 8 9

w w w . m o n i t e u r d e v i c e s . c o m

Companion VPT

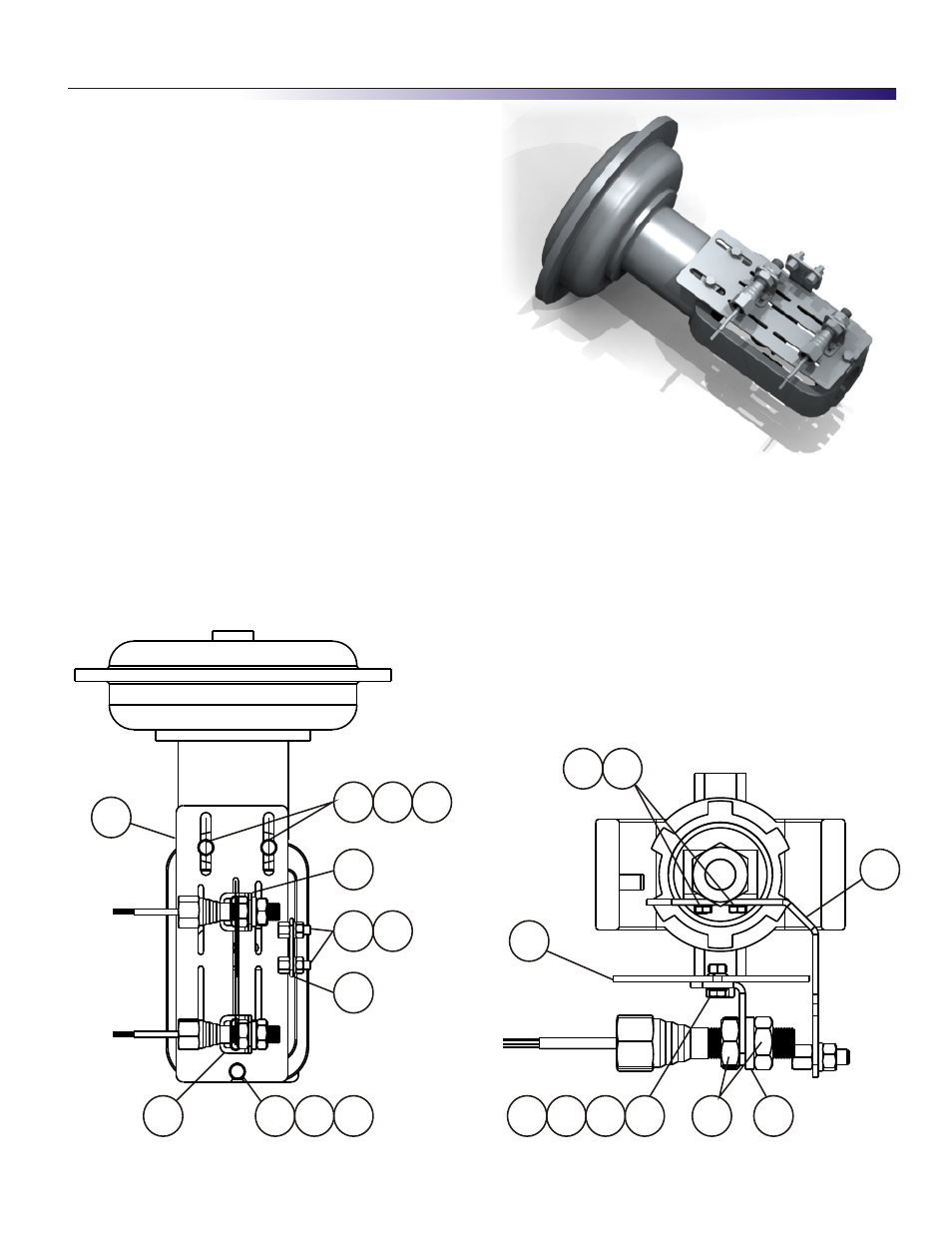

Mounting Instructions - Fisher 657 / 667 Bracket Kits

Moniteur

Mounting Instructions

1. Attach the switch-actuator target bracket (item 1)

to the stem connector with the existing screws,
and add the flat washers and lock washers (items
5 and 6).

2. Mount main bracket (item 2) to the actuator with

items 4, 5 and 6

3. Mount switch mounting brackets (item 3) to main

mounting bracket (item 1) with items 7,8,9 and 10.

4. Thread a Companion VPT through each switch

mounting bracket (item 3) and secure with 2 jam
nuts (item 12 - supplied with the Companion) and
lock washer (item 11).

5. Mount the two magnetic triggers (supplied with the

Companion) to the switch-actuator arm (item 1) with
items 13 and 14 (supplied with the Companion).

6. Adjust the Companion switches on the main

mounting bracket (item 2) and the magnetic triggers
on the switch-actuator bracket (item 1) to the
appropriate positions for the switches to sense each
end of travel of the actuator.
